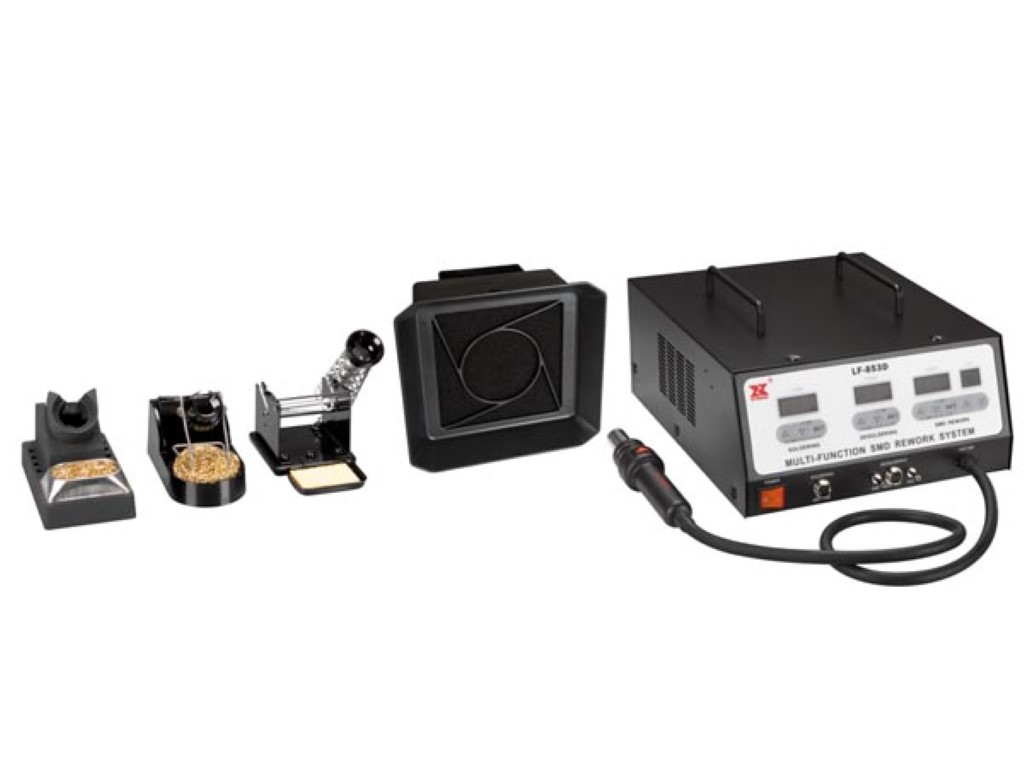

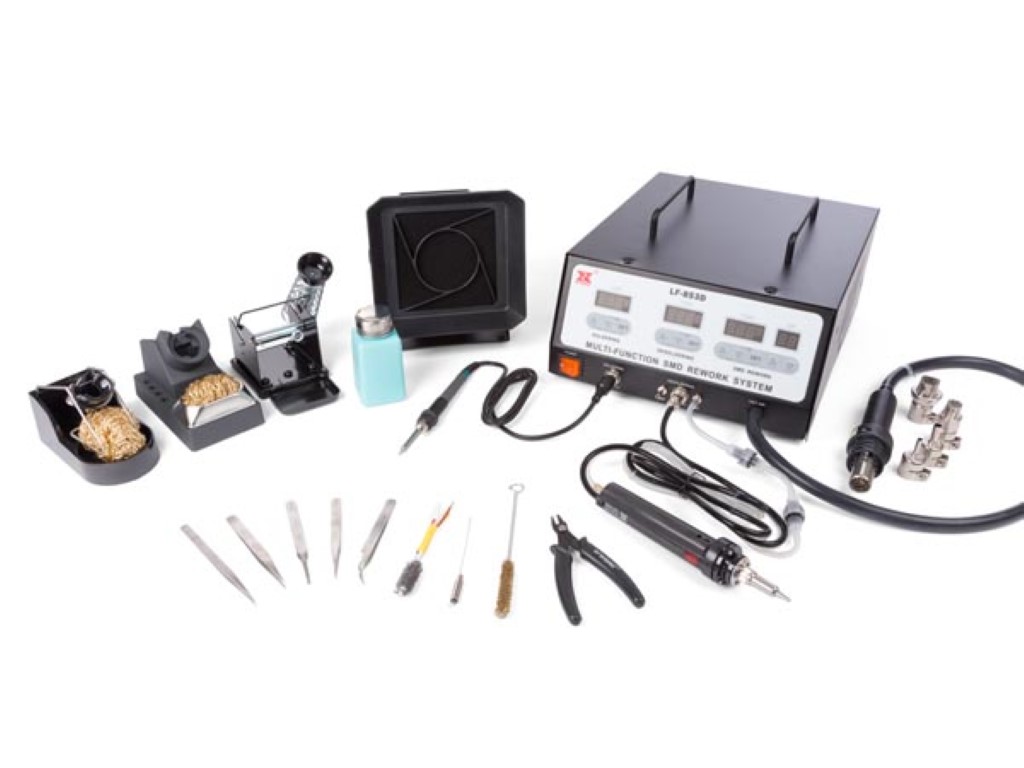

SMD rework station with 100W soldering iron and 600W hot air station, LCD temperature control, adjustable airflow, desoldering, PCB repair, SMD components

Name: SMD rework station with 100W soldering iron and 600W hot air station, LCD temperature control, adjustable airflow, desoldering, PCB repair, SMD components
Brand: Xytronic
SKU: VTSSD4
Availability: OutOfStock

VTSSD4

SMD rework station with 100W soldering iron and 600W hot air station, LCD temperature control, adjustable airflow, desoldering, PCB repair, SMD components

LBL_NONE_TAG

Order

This product cannot be purchased as a private individual.

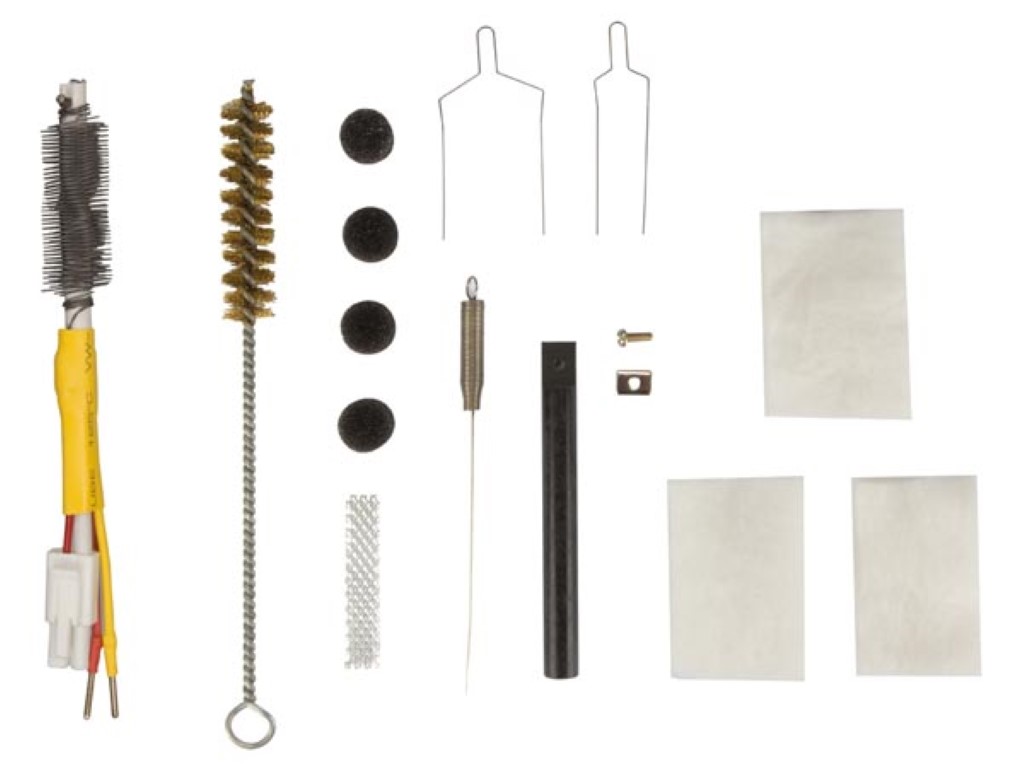

Options & Spare parts

Product description

This multifunctional SMD rework station is designed for soldering, desoldering and hot air work in PCB repair and SMD applications. The station features a 100 W soldering and desoldering iron and a 600 W hot air system for precise work on electronic components. Temperature and airflow are accurately adjustable via the LCD display, providing maximum control during fine soldering tasks. The solid construction and energy saving features make this rework station suitable for intensive professional use.

+ All in one SMD rework station: This SMD rework station combines soldering, desoldering and hot air functions in one complete workstation for SMD applications.
+ 100W soldering iron and 600W hot air: With 100 W soldering and desoldering power and 600 W hot air output, this station is suitable for intensive and precise soldering work.
+ Precise LCD temperature control: The electronic temperature control with LCD display provides high accuracy up to ± 3 °C for controlled soldering.
+ Adjustable airflow and energy saving: Airflow is adjustable from 1.5 to 40 l/min and the automatic energy saving mode reduces power consumption when idle.
+ Stable aluminium construction: The robust aluminium housing and high weight ensure stable placement during prolonged use.

Specifications

Physical properties
Primary colours	Black
Additional colours	White
Depth unit	36.5 cm
Height unit	30 cm
Width unit	15 cm
Weight unit	12 g
Material	Aluminium

Electrical Properties
Input frequency rating	50 Hz
Maximum power consumption	900 W
Power rating desoldering	100 W
Power rating hot air pump	600 W
Power rating soldering	100 W
Voltage rating soldering iron	32 V
Minimum input voltage rating VAC	220 V
Maximum input voltage rating VAC	240 V
Voltage rating desoldering	32 V
Voltage rating SMD rework	230 V

Functional Features
Adjustable temperature control

Performance & Technical Specs
Energy saving
Lead-free soldering/desoldering
Maximum air flow rate	40 l/min
Maximum temperature range desoldering	450 °C
Maximum temperature range SMD rework	480 °C
Maximum temperature range soldering	480 °C
Minimum air flow rate	1.5 l/min
Minimum temperature range desoldering	300 °C
Minimum temperature range SMD rework	100 °C
Minimum temperature range soldering	150 °C
Temperature accuracy	3 °C
Maximum temperature	480 °C
Soldering/desoldering usage	Desoldering

Specifications

Physical properties
Primary colours	Black
Additional colours	White
Depth unit	36.5 cm
Height unit	30 cm
Width unit	15 cm
Weight unit	12 g
Material	Aluminium

Electrical Properties
Input frequency rating	50 Hz
Maximum power consumption	900 W
Power rating desoldering	100 W
Power rating hot air pump	600 W
Power rating soldering	100 W
Voltage rating soldering iron	32 V
Minimum input voltage rating VAC	220 V
Maximum input voltage rating VAC	240 V
Voltage rating desoldering	32 V
Voltage rating SMD rework	230 V

Functional Features
Adjustable temperature control

Performance & Technical Specs
Energy saving
Lead-free soldering/desoldering
Maximum air flow rate	40 l/min
Maximum temperature range desoldering	450 °C
Maximum temperature range SMD rework	480 °C
Maximum temperature range soldering	480 °C
Minimum air flow rate	1.5 l/min
Minimum temperature range desoldering	300 °C
Minimum temperature range SMD rework	100 °C
Minimum temperature range soldering	150 °C
Temperature accuracy	3 °C
Maximum temperature	480 °C
Soldering/desoldering usage	Desoldering

Bar code

Bar code (EAN-13):5410329588366
