Soldering gun, automatic solder supply, 30/60 W

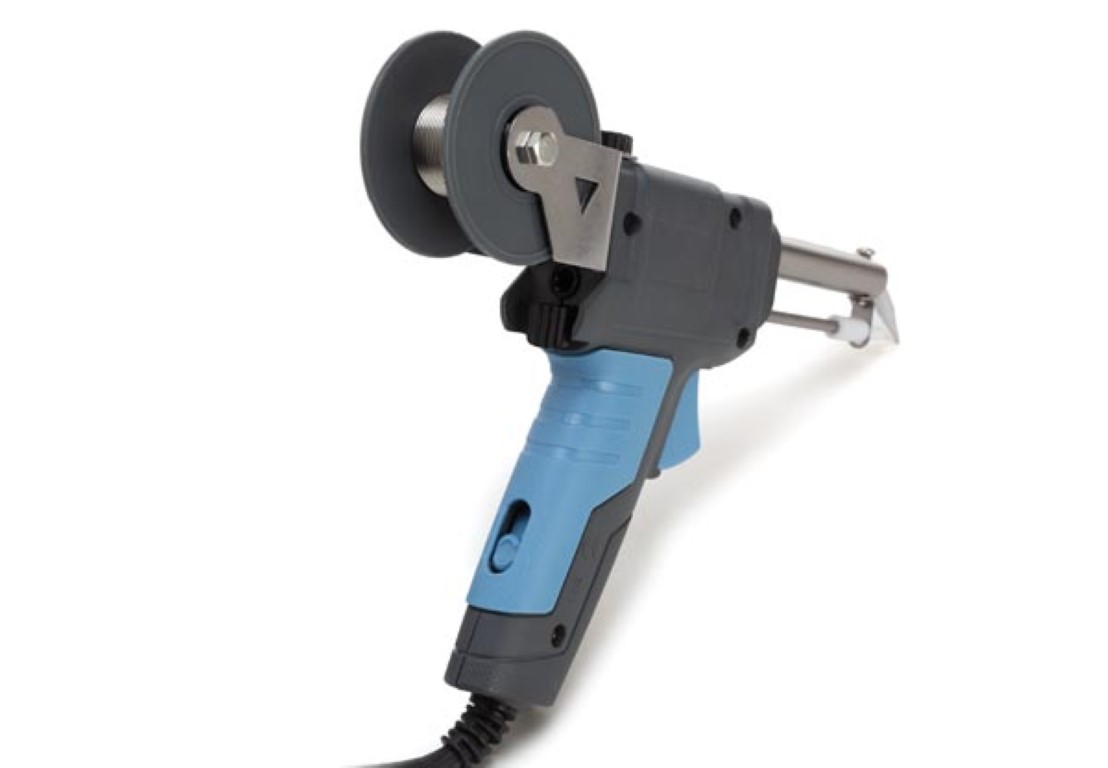

Name: Soldering gun, automatic solder supply, 30/60 W
Brand: Velleman
SKU: VTSG60SFN
Availability: Discontinued

VTSG60SFN

WHILE STOCKS LAST

Order

This product cannot be purchased as a private individual.

Options & Spare parts

Product description

This dual-power soldering gun with automatic solder supply has a quick warm-up time and is ready to use within seconds. This makes it the perfect choice when things need to go fast.

Thanks to the automatic supply of solder, you can easily operate the gun with one hand. The soldering coil can be easily removed using the special click system. The kit also includes lead-free solder (2 m).

+ Versatile: The set is perfect for a variety of soldering tasks and is suitable for hobbyists, DIYers and professionals.
+ 30 W/60 W power: This soldering iron has an output of 30 W or 60 W and is suitable for almost all soldering jobs.
+ Lead-free soldering: Choose lead-free soldering and easily achieve clean, reliable solder joints. Perfect for all your electronic projects, from DIY tasks to professional repairs.
+ Automatic supply of solder: One push of the button brings the wire to the tip. This makes it easy to solder with one hand.
+ Durable material: The soldering iron is made of high-quality PVC and stainless steel, making it robust and durable
- Spare tip BITVTSG60SF is available separately.
- Lead-free solder VTSG60SFN/SP1 is available separately.

Specifications

Physical properties
Primary colour	Blue
Additional colours	Black
Depth unit	30 mm
Height unit	150 mm
Width unit	240 mm
Weight unit	363 g
Material	PVC (polyvinyl chloride)
Additional material	Stainless steel
Tip shape	Conical
Tip material	Metal
Tip size	0.8 mm

Electrical Properties
Input frequency rating	50 Hz
With dual power
Dual power rating soldering iron	30 W / 60 W
Minimum input voltage rating VAC	220 V
Maximum input voltage rating VAC	240 V

Performance & Technical Specs
Fast heating
Melting temperature	230 °C
Lead-free soldering
Maximum temperature	480 °C
With ceramic heating element
With solder feed
Maximum solder diameter	1.5 mm
Minimum solder diameter	0.8 mm

Compliance & Certification
GPSR Responsible - Contact Name	Velleman Group
GPSR Responsible - Address	Legen Heirweg 33, 9890, GAVERE, Belgium
GPSR Responsible - Website	http://www.vellemangroup.eu
GPSR Responsible - Email	customercare@velleman.eu
GPSR Responsible - Telephone number	09/384.36.11

Specifications

Physical properties
Primary colour	Blue
Additional colours	Black
Depth unit	30 mm
Height unit	150 mm
Width unit	240 mm
Weight unit	363 g
Material	PVC (polyvinyl chloride)
Additional material	Stainless steel
Tip shape	Conical
Tip material	Metal
Tip size	0.8 mm

Electrical Properties
Input frequency rating	50 Hz
With dual power
Dual power rating soldering iron	30 W / 60 W
Minimum input voltage rating VAC	220 V
Maximum input voltage rating VAC	240 V

Performance & Technical Specs
Fast heating
Melting temperature	230 °C
Lead-free soldering
Maximum temperature	480 °C
With ceramic heating element
With solder feed
Maximum solder diameter	1.5 mm
Minimum solder diameter	0.8 mm

Compliance & Certification
GPSR Responsible - Contact Name	Velleman Group
GPSR Responsible - Address	Legen Heirweg 33, 9890, GAVERE, Belgium
GPSR Responsible - Website	http://www.vellemangroup.eu
GPSR Responsible - Email	customercare@velleman.eu
GPSR Responsible - Telephone number	09/384.36.11

Solder

Bar code

Bar code (EAN-13):5410329692865

Options

BESTSELLER

VTSA

Solder cleaning kit 6 pieces, complete set with knife,...
