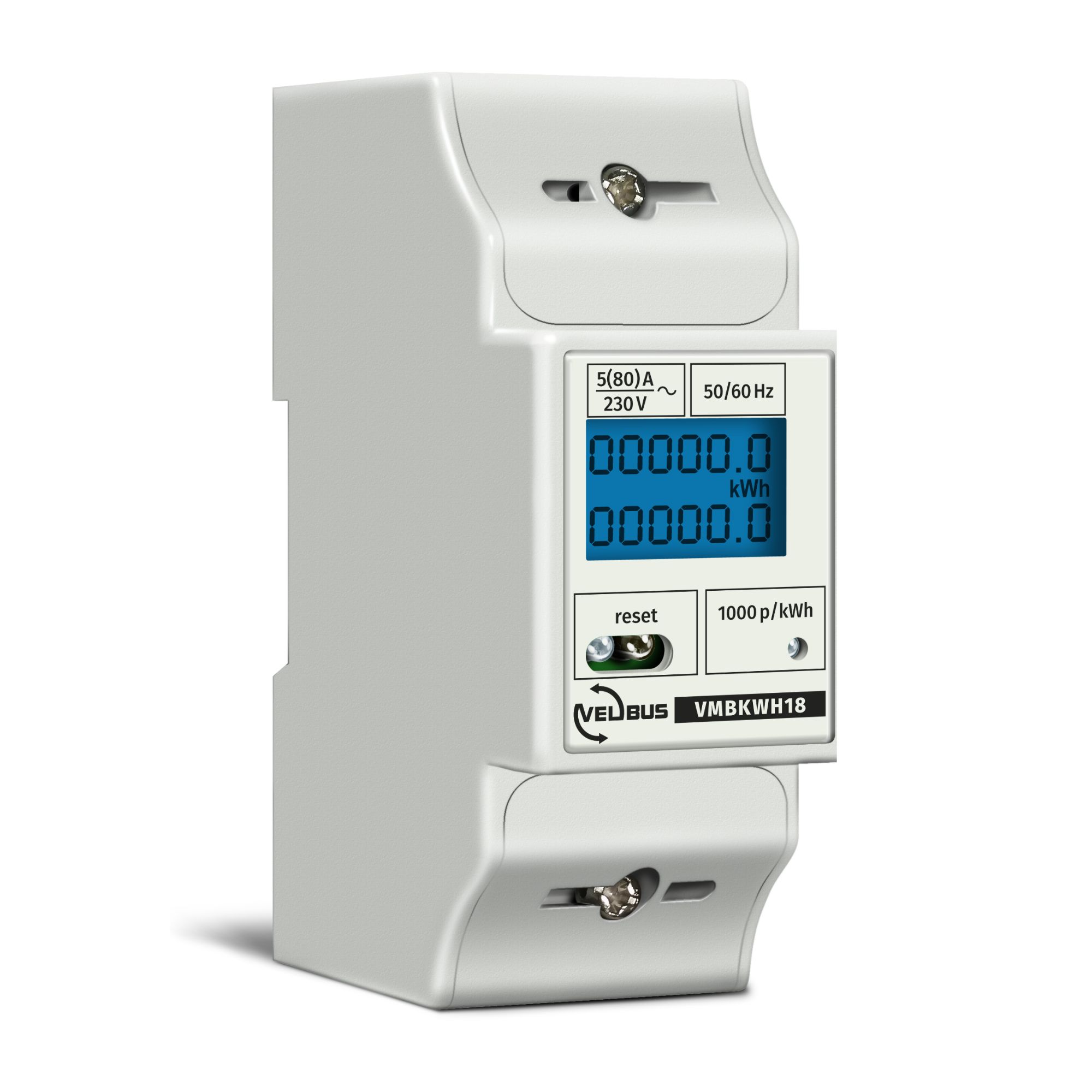

Professional kWh meter, 1 phase, for DIN rail mounting, with resetable day counter, total counter, LCD display and pulse LED, max. 80 A

Name: Professional kWh meter, 1 phase, for DIN rail mounting, with resetable day counter, total counter, LCD display and pulse LED, max. 80 A
Brand: Velleman
SKU: EMDIN02
Availability: OutOfStock

EMDIN02

BESTSELLER

Order

This product cannot be purchased as a private individual.

Support

User manual

Downloads (3)

Product description

With energy prices so high, it is good to do as much as possible to keep costs as low as possible. You can do this by saving energy.

This kWh meter measures the energy consumption of a 1-stage system such as a solar panel system, charging station or heat pump. You can immediately see how many kWh this system consumed or produced on the illuminated LCD screen.

Besides a total counter, the meter also features a resettable daily counter that allows consumption to be measured over a desired period.

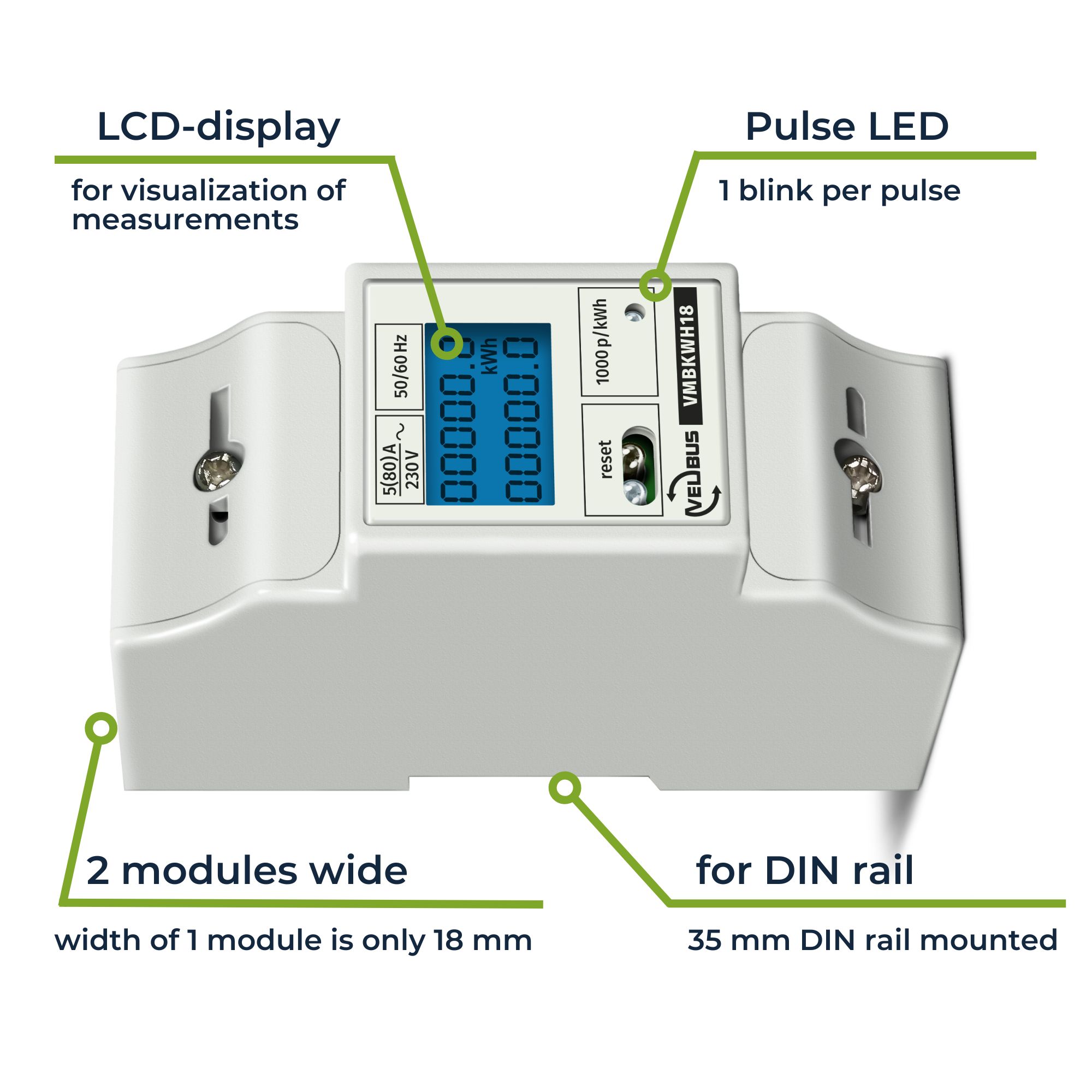

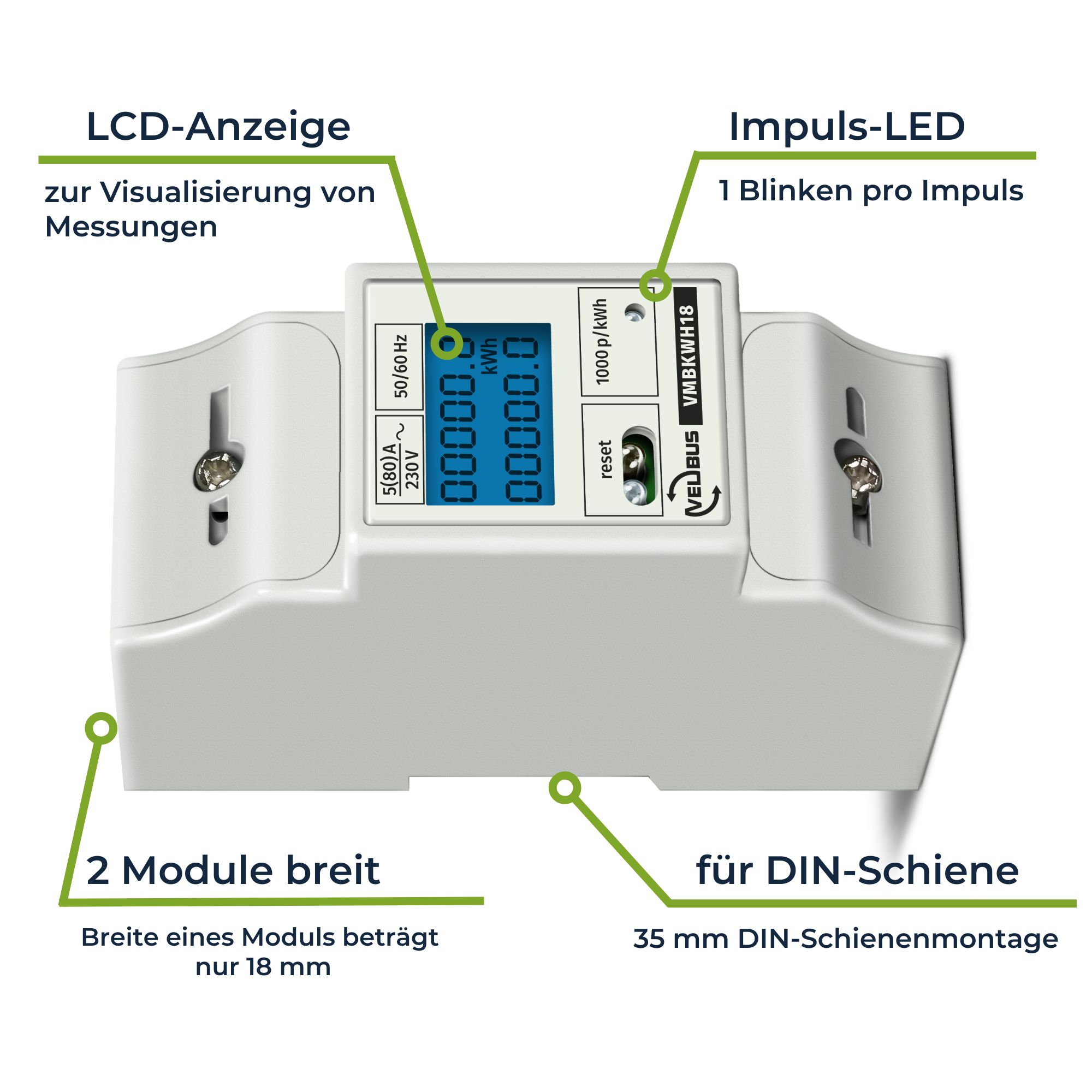

A special system under the influence of current and applied voltage generates pulses proportional to the electricity consumed. Energy consumption is indicated by a flashing LED. The meter is intended for mounting on a DIN rail and takes up 2 modules of 118 mm.

+ Efficient: The kWh meter gives insight into your energy consumption.
+ Energy-saving: With this electricity meter, you know exactly how much you actually pay in energy costs. This makes detecting energy guzzlers easy.
+ Easy reading: Easy to read thanks to the clear LCD display (5 + 2 digits).

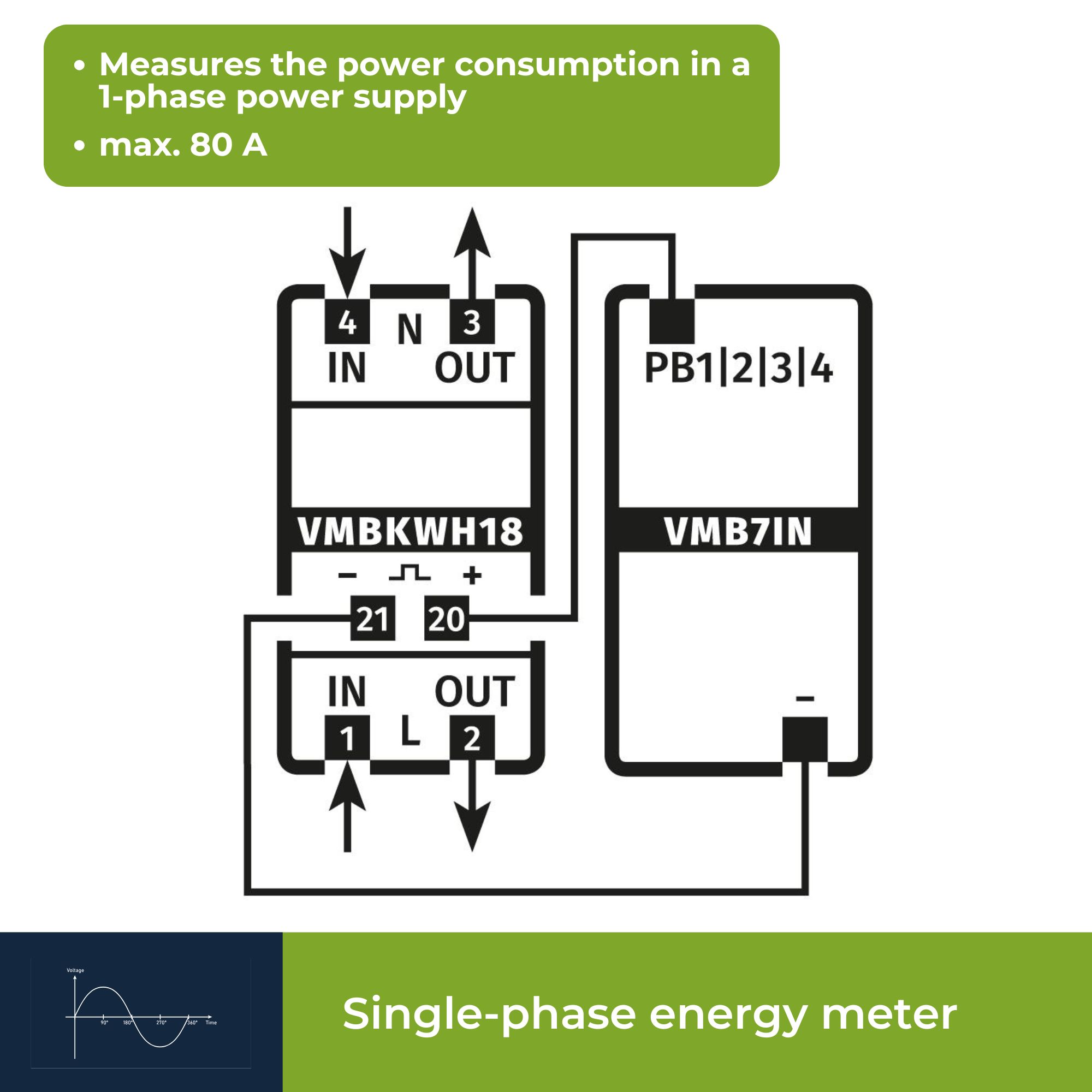

+ Possibility of connecting external readout devices.
+ Suitable for up to 80 A rated current.
- Which kWh meter you need depends on the number of wires that need to be connected for full metering. Your home may be connected to a 3 phase connection, but if the appliance itself is only connected to 1 phase, you will need a 1 phase kWh meter to measure the appliance.

Specifications

Physical properties
Pulse width	90 ms
Maximum wire size mm²	38 mm²
Primary colours	Grey
Additional colours	Blue
Additional detailed colours	Metallic silver
Depth unit	100 mm
Height unit	60 mm
Width unit	35 mm
Weight unit	160 g
Material	ABS
Minimum wire size mm²	7 mm²
Width DIN modules	2

Electrical Properties
Input frequency rating	50/60 Hz
Power consumption	2 W
Maximum current rating	80 A
Pulse output current	27 mA
Accuracy class	1
DIN rail energy meters nominal voltage	240 V
Minimum pulse output voltage	12 V
Maximum pulse output voltage	27 V DC

Lighting & Optical Properties
LED indicator
LED indicator blinks per pulse	1
Lamp type	Led

Functional Features
Reset function

Performance & Technical Specs
DIN rail energy meters minimum accuracy rating	5 A
Maximum operating humidity	75 %
Number of phases	1
PNP resistor
Maximum operating temperature	55 °C
Minimum operating temperature	-25 °C
DIN rail
Pulse per kilowatthour	1000
Number din modules	1
Maximum indication	999999.99
Display type	LCD

Compliance & Certification
GPSR Responsible - Contact Name	Velleman Group
GPSR Responsible - Address	Legen Heirweg 33, 9890, GAVERE, Belgium
GPSR Responsible - Website	http://www.vellemangroup.eu
GPSR Responsible - Email	customercare@velleman.eu
GPSR Responsible - Telephone number	09/384.36.11

Specifications

Physical properties
Pulse width	90 ms
Maximum wire size mm²	38 mm²
Primary colours	Grey
Additional colours	Blue
Additional detailed colours	Metallic silver
Depth unit	100 mm
Height unit	60 mm
Width unit	35 mm
Weight unit	160 g
Material	ABS
Minimum wire size mm²	7 mm²
Width DIN modules	2

Electrical Properties
Input frequency rating	50/60 Hz
Power consumption	2 W
Maximum current rating	80 A
Pulse output current	27 mA
Accuracy class	1
DIN rail energy meters nominal voltage	240 V
Minimum pulse output voltage	12 V
Maximum pulse output voltage	27 V DC

Lighting & Optical Properties
LED indicator
LED indicator blinks per pulse	1
Lamp type	Led

Functional Features
Reset function

Performance & Technical Specs
DIN rail energy meters minimum accuracy rating	5 A
Maximum operating humidity	75 %
Number of phases	1
PNP resistor
Maximum operating temperature	55 °C
Minimum operating temperature	-25 °C
DIN rail
Pulse per kilowatthour	1000
Number din modules	1
Maximum indication	999999.99
Display type	LCD

Compliance & Certification
GPSR Responsible - Contact Name	Velleman Group
GPSR Responsible - Address	Legen Heirweg 33, 9890, GAVERE, Belgium
GPSR Responsible - Website	http://www.vellemangroup.eu
GPSR Responsible - Email	customercare@velleman.eu
GPSR Responsible - Telephone number	09/384.36.11

Bar code

Bar code (EAN-13):5410329480325
