LBL_NONE_TAG This product cannot be purchased as a private individual. |

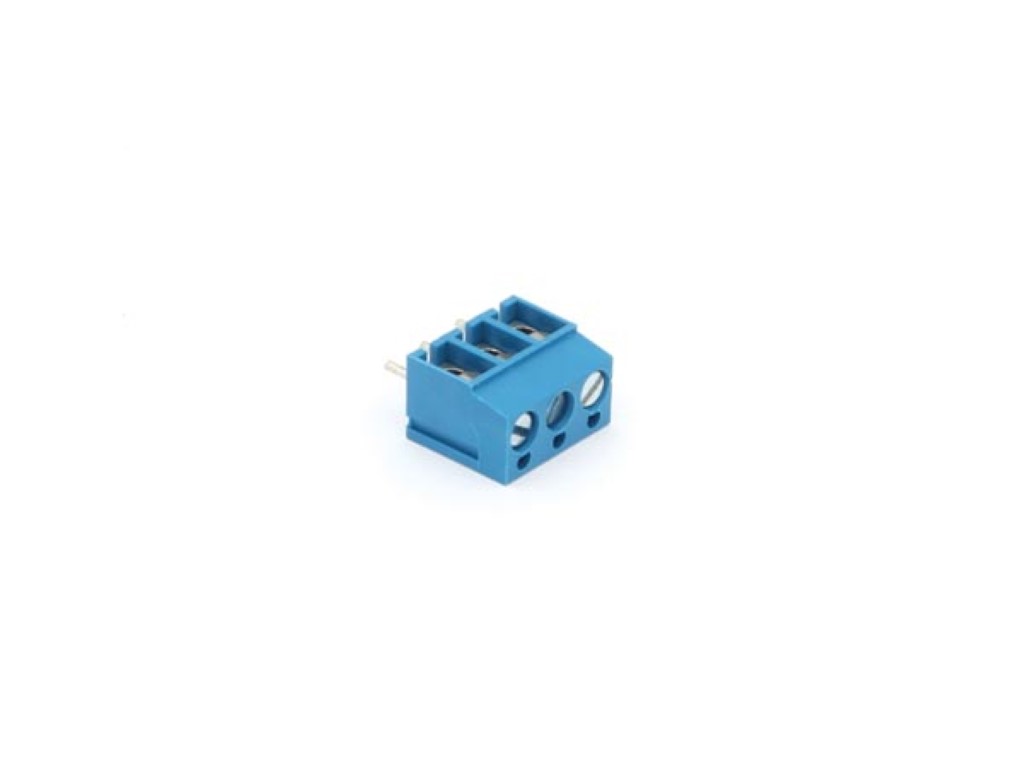

Specifications| Physical properties |
|---|
| Connector shape | Straight | | Wire size | 2,5 mm² | | Maximum wire size AWG | 22 AWG | | Minimum wire size AWG | 14 AWG | | Primary colours | Blue | | Depth unit | 9 mm | | Height unit | 12.5 mm | | Width unit | 15 mm | | Weight unit | 3.35 g | | Material | Glass-filled polyester | | Additional material | Stainless steel,PBT | | Dielectric strength voltage rating VAC | 2000 V | | Contact material | Tin-plated brass | | Shape | Square |
| Electrical Properties |
|---|
| Connection type | Screw connection | | Maximum current per way | 16 A | | Voltage rating VAC per way | 300 V |
| Performance & Technical Specs |
|---|
| Pitch | 5 mm | | Soldering tip temperature | 260 °C | | Maximum operating temperature | 120 °C | | Minimum operating temperature | -33 °C | | Stackable | | | Number of contacts | 3 | | Flammability rating | UL 94 V-0 | | Diameter lead | 1 mm |
| Installation & Mounting |
|---|
| Diameter mounting hole (mm) | 1.5 mm | | Mounting type | PCB mounting,Through hole |
|
| |
Specifications| Physical properties |
|---|
| Connector shape | Straight | | Wire size | 2,5 mm² | | Maximum wire size AWG | 22 AWG | | Minimum wire size AWG | 14 AWG | | Primary colours | Blue | | Depth unit | 9 mm | | Height unit | 12.5 mm | | Width unit | 15 mm | | Weight unit | 3.35 g | | Material | Glass-filled polyester | | Additional material | Stainless steel,PBT | | Dielectric strength voltage rating VAC | 2000 V | | Contact material | Tin-plated brass | | Shape | Square |
| Electrical Properties |
|---|
| Connection type | Screw connection | | Maximum current per way | 16 A | | Voltage rating VAC per way | 300 V |
| Performance & Technical Specs |
|---|
| Pitch | 5 mm | | Soldering tip temperature | 260 °C | | Maximum operating temperature | 120 °C | | Minimum operating temperature | -33 °C | | Stackable | | | Number of contacts | 3 | | Flammability rating | UL 94 V-0 | | Diameter lead | 1 mm |
| Installation & Mounting |
|---|
| Diameter mounting hole (mm) | 1.5 mm | | Mounting type | PCB mounting,Through hole |
| |
|
