PRODUCT OVERVIEW

Red strobe siren 105 dBA, 6-14 VDC, LED strobe light, energy-efficient 250 mA, IP53 splash-proof, polarity protection, easy wall mounting, alarm system, enhanced visibility and safety

SV/PSL1

LBL_NONE_TAG

Order

No stock

Support

Downloads (2)

Product description

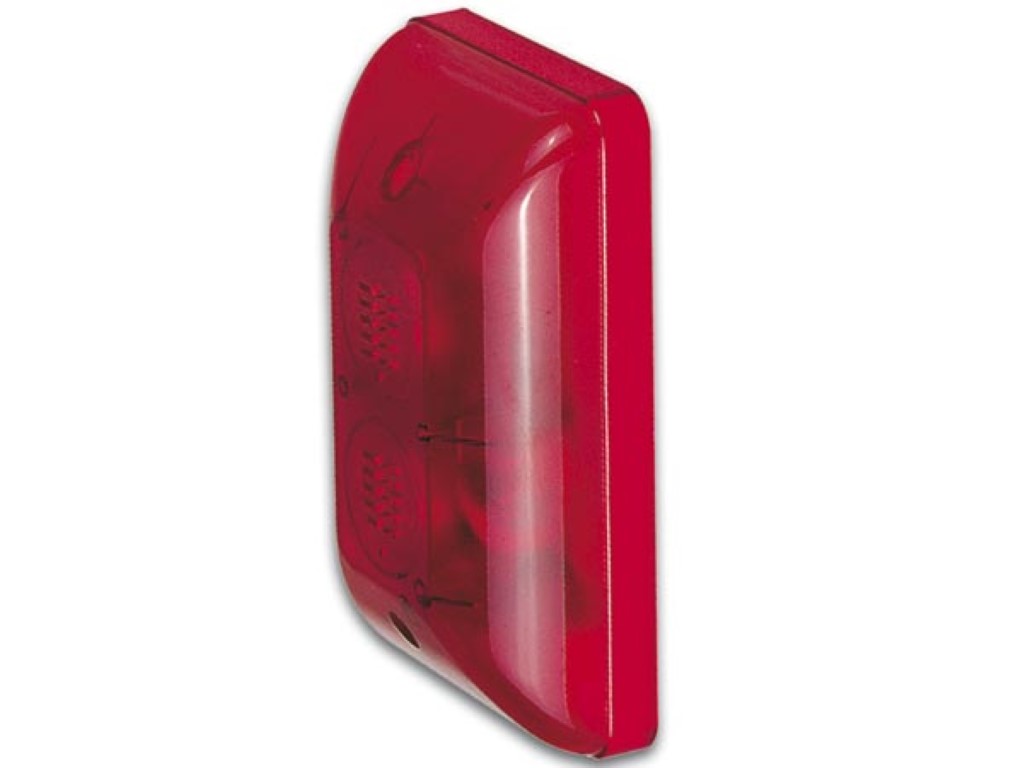

This red strobe siren provides a 105 dBA alarm signal with bright red LED flashes, ideal for emergencies and burglary prevention. It is energy-efficient with only 250 mA consumption and includes polarity protection for safe installation. With an IP53 rating, it is splash-proof and dust-resistant, perfect for both indoor and outdoor use. Its compact size and easy wall mounting make it suitable for any alarm system configuration.

+ 105 dBA sound level: The 105 dBA electronic siren delivers a powerful sound that immediately deters intruders, ensuring optimal safety in any environment.
+ LED strobe light: Equipped with bright red LEDs that provide flashing visual alerts during alarms, enhancing safety by quickly notifying bystanders and emergency services.
+ Low power consumption: Operates on only 250 mA at 12 VDC, making it energy-efficient for long-term use without high energy costs.
+ Weather resistant: The IP53 rating protects the siren from dust and splashes, ensuring reliable operation in various indoor and outdoor settings.

+ Reliable security: Combines a loud alarm signal with striking light flashes, offering effective warnings and optimal protection for your property.

Specifications

Physical properties
Cable length	43 cm
Primary colours	Red
Depth unit	3.5 cm
Height unit	12.25 cm
Width unit	7.24 cm
Weight unit	105 g
Material	ABS

Electrical Properties
IP rating	IP53
Frequency rating	4 kHz
Current consumption	250 mA
Current type	DC
Minimum voltage rating VDC	6 V
Maximum voltage rating VDC	14 V

Performance & Technical Specs
Maximum working temperature	60 °C
Minimum working temperature	-20 °C
Sound performance level (dBA)	105 dB
Tone type	Single tone sweep
Usage location	Indoor & outdoor

Connectivity & Smart Features
Wireless/wired	Wired

Installation & Mounting
Mounting type	Wall mount,Screw mounting

Compliance & Certification

GPSR Safety Warning

Our electronic components are compliant with RoHS directive 2011/65/EU amended by directive (EU) 2015/863 and can be used in accordance with the listed specifications and/or instructions.

Be aware that compliance of the end product with the applicable directives and regulations in which the components are implemented is the sole responsibility of the creator/manufacturer of the end product. Velleman Group NV cannot be held responsible in any way for compliance with the applicable directives and regulations of the end products.

Specifications

Physical properties
Cable length	43 cm
Primary colours	Red
Depth unit	3.5 cm
Height unit	12.25 cm
Width unit	7.24 cm
Weight unit	105 g
Material	ABS

Electrical Properties
IP rating	IP53
Frequency rating	4 kHz
Current consumption	250 mA
Current type	DC
Minimum voltage rating VDC	6 V
Maximum voltage rating VDC	14 V

Performance & Technical Specs
Maximum working temperature	60 °C
Minimum working temperature	-20 °C
Sound performance level (dBA)	105 dB
Tone type	Single tone sweep
Usage location	Indoor & outdoor

Connectivity & Smart Features
Wireless/wired	Wired

Installation & Mounting
Mounting type	Wall mount,Screw mounting

Compliance & Certification

GPSR Safety Warning

Our electronic components are compliant with RoHS directive 2011/65/EU amended by directive (EU) 2015/863 and can be used in accordance with the listed specifications and/or instructions.

Bar code

Bar code (EAN-13):5410329282820
