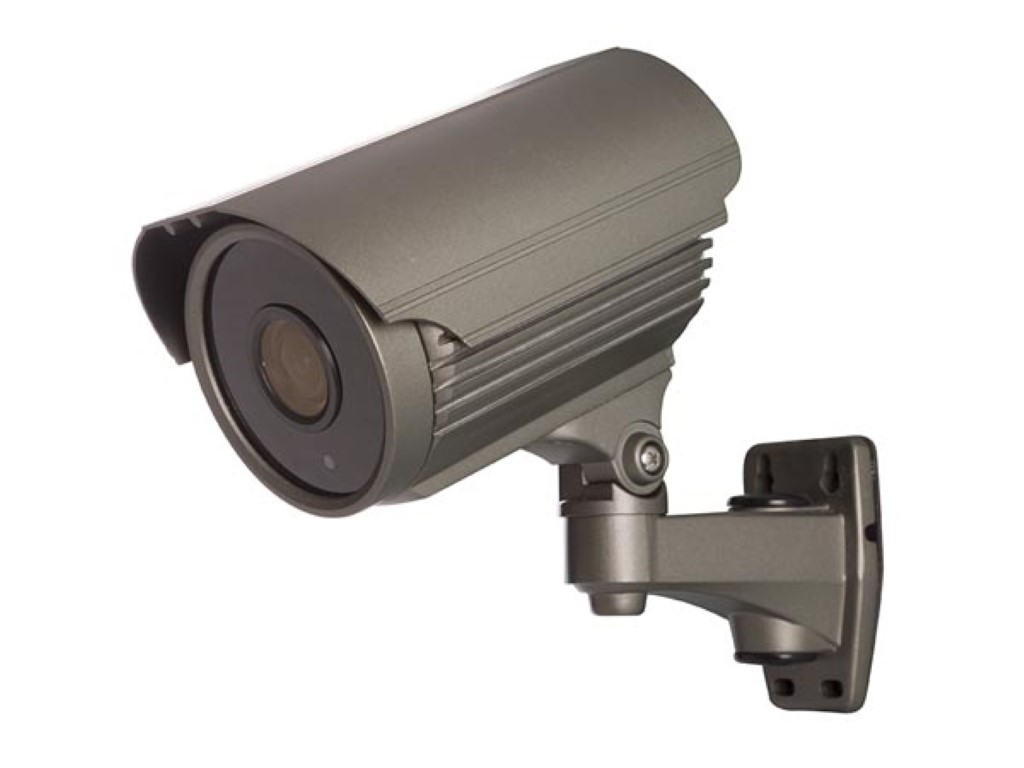

MULTI PROTOCOL CAMERA - HD-TVI / CVI / AHD / ANALOGUE - OUTDOOR - BULLET - VARIFOCAL LENS - 1080P

Name: MULTI PROTOCOL CAMERA - HD-TVI / CVI / AHD / ANALOGUE - OUTDOOR - BULLET - VARIFOCAL LENS - 1080P
Brand: Velleman
SKU: CAMTVI17
Availability: Discontinued

CAMTVI17

Discontinued

View on velleman.eu.

This item is replaced by: ECAMTVI601B

Order

No stock

Support

User manual

MULTI PROTOCOL CAMERA - HD-TVI / CVI / AHD / ANALOGUE - OUTDOOR - BULLET - VARIFOCAL LENS - 1080P

Product description

This advanced HDCCTV camera combines quality and versatility, ideal for outdoor security. Equipped with a 1/2.9 Sony CMOS sensor, it delivers crystal-clear 1080P video images. It supports various video signals such as HD-TVI, HD-CVI, AHD, and analog, making it widely applicable with different security systems. The built-in IR LEDs ensure excellent black-and-white night vision, while the varifocal lens gives you the flexibility to set the perfect viewing angle. The camera is weatherproof (IP66-certified) and has a vandal-proof mounting bracket, making it ideal for outdoor use in all weather conditions.

weatherproof
with B/W night vision (IR LEDs)
1080P video signal
vandal-proof bracket
varifocal lens
multiple video signal outputs: TVI, AHD, CVI, CVBS
special functions via On-Screen Display (OSD) set-up menu

Specifications

Product basic info
Primary colours	Grey
Primary detailed colours	Dark grey
Diameter	95 mm
Height unit	21.5 mm
Width unit	195 mm
Weight unit	870 g
Material	Metal

Physical properties
Number of LEDs	6

Electrical data
LED module type	High power SMD leds

Technical data
Mounting type	Ceiling mounting, Wall mount
Weatherproof
Sensor type	Sony® CMOS 1/2.9"
Video format	AHD/CVBS/CVI/TVI
Number of pixels	1080
Audio/video signal	AHD, CVBS, HD/CVI, HD/TVI
Infrared night vision range	60 m
White balance	Automatic
Auto gain control (AGC)
Backlight compensation (BLC)
Camera type	Bullet, HD, Night vision (Ir leds)
IR leds
On screen display (OSD)
Resolution camera	1920 x 1080
Shutter time	1/25 - 1/50.000 sec
Video output type	AHD signal: 1080p, CVI signal: 1080p, PAL video: 960h, TVI signal: 1080p
Lens size range	2.8-12 mm
Lens type	Fixed
Signal-to-noise ratio	50 dB

Environmental data
IP rating	IP66
Operating temperature range	-10-55 °C
Usage location	Outdoor only

Operational properties
Video output	BNC - connector
Automatic day/night detection
Maximum relative humidity	95 %
IR filter
Audio output signal

Power supply
Power consumption	< 0.8 W
Input voltage rating VDC	12 V

Bar code

Bar code (EAN-13):5410329703615
