PRODUCT OVERVIEW

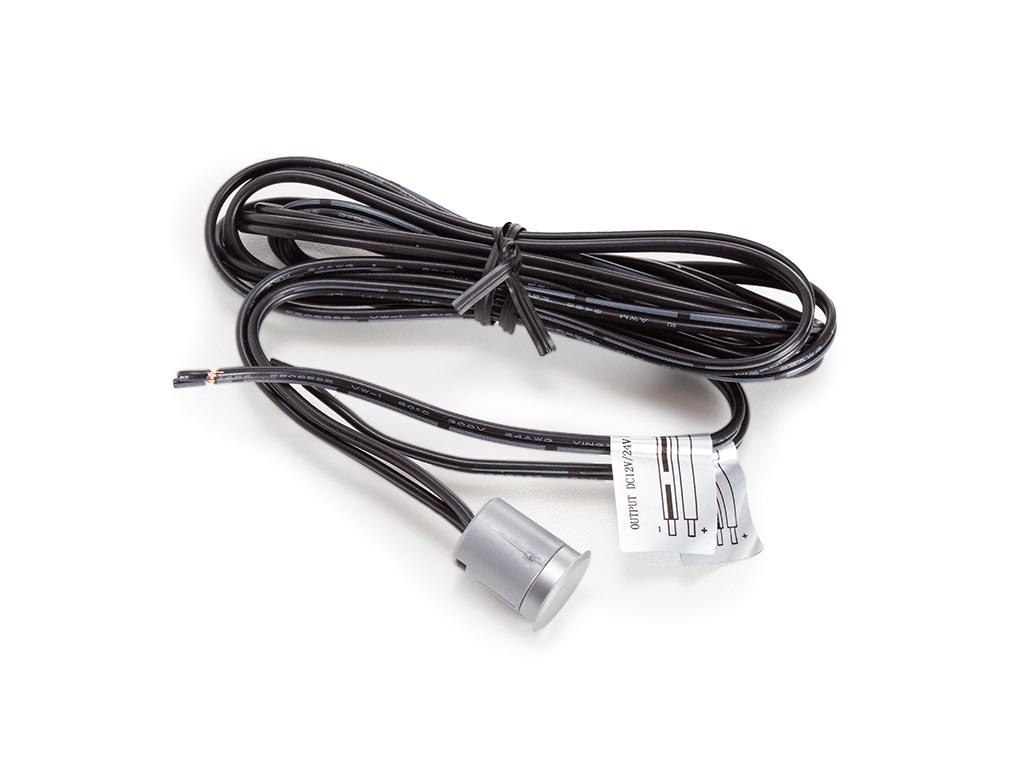

LED Dimmer, built-in, touch control, perfect for controlling 12 V/24 V LED strips, compact design, suitable for furniture and cabinets, ABS, metallic gray

LQS06

LBL_NONE_TAG

Order

This product cannot be purchased as a private individual.

Options & Spare parts

Options (2)

Support

User manual

Downloads (2)

Product description

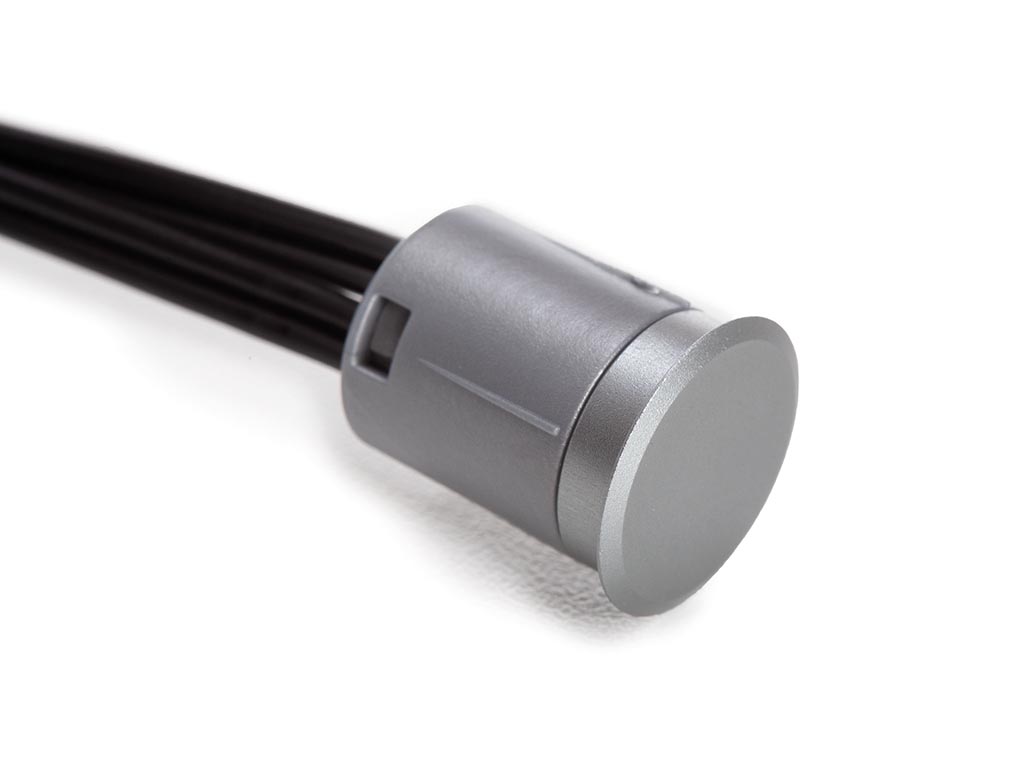

Discover our innovative recessed dimmer, the perfect solution for controlling LED strips. This compact dimmer is specially designed for recessed installation in furniture or cabinet panels, requiring only a 12 mm drill hole.
Control your lighting easily and stylishly:
A short press turns the LED strip on, a second short press turns it off. For the ultimate ambiance, hold the button down to set the desired dimming value.

+ Easy to use: The dimmer is controlled with a simple touch. A short press switches the LED strip on or off, while holding the button adjusts the light intensity.

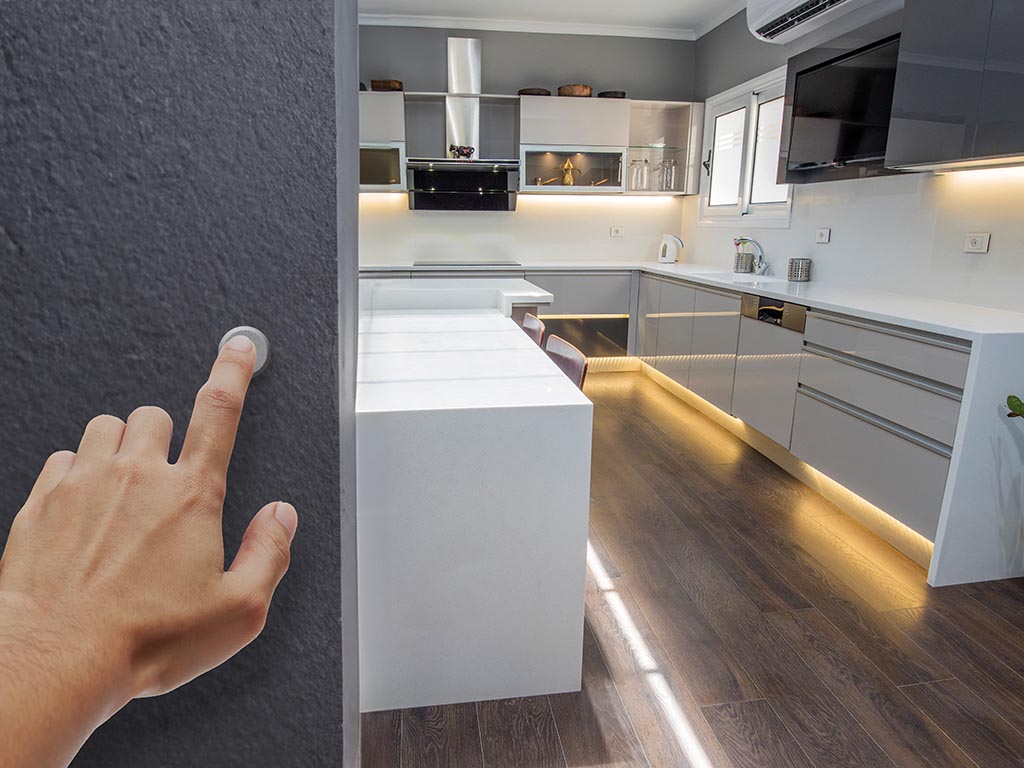

+ For recessed installation: The dimmer is designed for recessed installation in furniture panels or cabinets, making it ideal for integrated lighting solutions at home or in the office.
+ Energy saving: By regulating light intensity, the dimmer helps save energy, as LED strips consume less power at lower light levels.
+ Adjustable brightness: The ability to adjust light intensity offers flexibility in creating the desired atmosphere for different situations.
+ Compact and discreet design: With its compact size and recessed installation capability, it can be neatly integrated into furniture or walls without taking up much space.

Specifications

Physical properties
Primary colours	Grey
Additional colours	White,Black
Height unit	16 mm
Weight unit	25 g
Material	ABS

Electrical Properties
IP rating	IP20
Maximum power consumption	72 W
Maximum current rating	3 A
With power supply
IEC protection class	Class III
Minimum power consumption	36 W
Quiescent current	1 mA
Input voltage rating VDC 1	12 V
Input voltage rating VDC 2	24 V

Performance & Technical Specs
Sensor type	Touch dimmer
Diameter unit	14 mm

Installation & Mounting
Diameter mounting hole (mm)	12 mm
Mounting type	Recessed

Specifications

Physical properties
Primary colours	Grey
Additional colours	White,Black
Height unit	16 mm
Weight unit	25 g
Material	ABS

Electrical Properties
IP rating	IP20
Maximum power consumption	72 W
Maximum current rating	3 A
With power supply
IEC protection class	Class III
Minimum power consumption	36 W
Quiescent current	1 mA
Input voltage rating VDC 1	12 V
Input voltage rating VDC 2	24 V

Performance & Technical Specs
Sensor type	Touch dimmer
Diameter unit	14 mm

Installation & Mounting
Diameter mounting hole (mm)	12 mm
Mounting type	Recessed

Bar code

Bar code (EAN-13):5410329759124

Options

LBL_NONE_TAG

YCL40-2401500

Switching power supply - single output - 40 W - 24 V - 1.67 A

LBL_NONE_TAG

YCL60-2402500

Switching power supply - single output - 60 W - 24 V - 2.5 A
