PRODUCT OVERVIEW

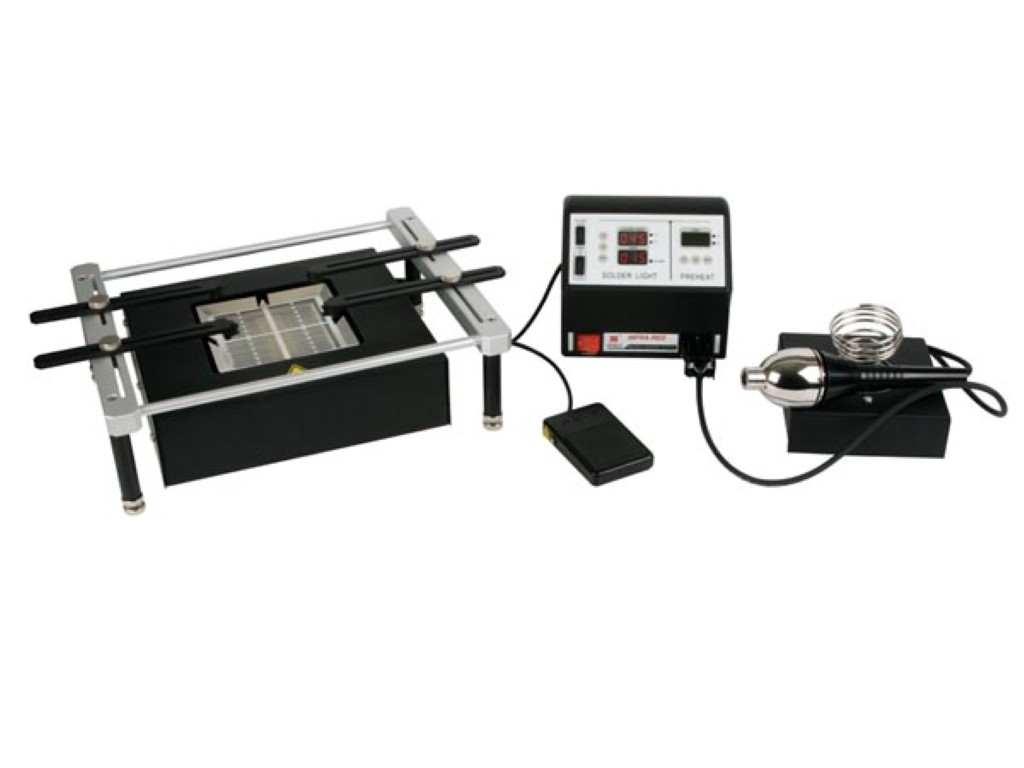

INFRA-RED SMD & BGA REWORK STATION

Name: INFRA-RED SMD & BGA REWORK STATION
Brand: Xytronic
SKU: VTSDIR
Availability: InStock

VTSDIR

LBL_NONE_TAG

Order

No stock

Options & Spare parts

Product description

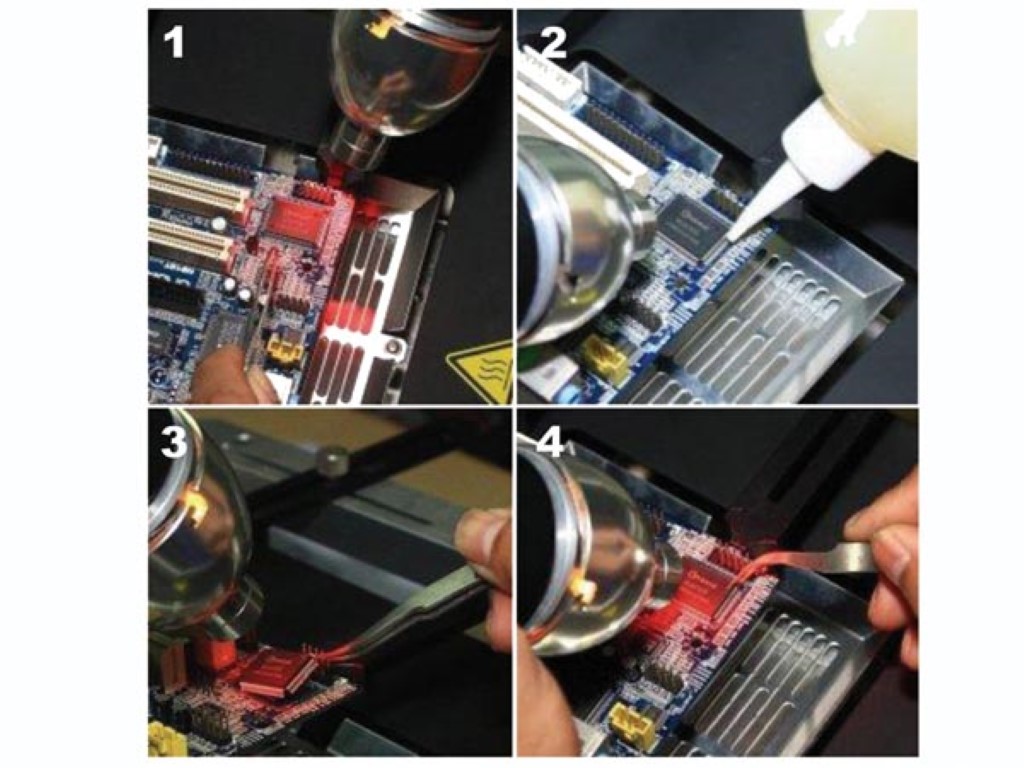

The solderlight is specially designed for SMD/BGA rework and also very convenient for re-balling smaller BGA components. When used in conjunction with the Infra-Red pre-heater, the system will achieve remarkable improvements in quality and efficiency of SMD/BGA rework operations. A single SMD is subjected to similar temperature/time profiles as during reflow in the original production.

Specifications

Product basic info:
- Instruction manual languages: English
- Primary colours: Black
- Additional colours: Grey
- Additional detailed colours: Metal
- Weight unit: ± 7 kg
Physical properties:
- Depth controller: 137 mm
- Depth pre-heater: 260 mm
- Height controller: 158 mm
- Height pre-heater: 90 mm
- Width controller: 170 mm
- Width pre-heater: 280 mm
Electrical data:
- Power rating IR solderlight: 150 W
- Power rating pre-heater: 650 W
Set-up options:
- Temperature range IR solderlight: 45-350 °C
- Temperature range pre-heater: 100-350 °C
Power supply:
- Input frequency rating: 50 Hz
- Input voltage rating VAC range: 220-240 V
Included:
- Fuse protection: No

Bar code

Bar code (EAN-13):5410329444594
