protections: short circuit / overload / over voltage
cooling by free air convection
DIN rail TS-35/7.5 or 15 mountable
over voltage: category III
LED indicator: power on
3 years warranty
applications:
household control system
building automation
industrial control system
factory automation
electro-mechanical apparatus
for professional use only
This device must be installed by a qualified person.
Specifications
Physical properties
Primary colours
Black
Depth unit
54.5 mm
Height unit
90 mm
Width unit
105 mm
Weight unit
350 g
Material
Flame-retardant PC (polycarbonate)
Electrical Properties
IP rating
IP20
Output current rating
3,20 A
Input current rating at 115 VAC
2.72 A
Input current rating at 230 VAC
3,20 A
Maximum input frequency
63 Hz
Minimum input frequency
47 Hz
Output power rating at 115 VAC
130.6 W
Output power rating at 230 VAC
153.6 W
Power supply series
HDR
Minimum input voltage rating VAC
85 V
Maximum input voltage rating VAC
264 V
Input voltage rating VDC 1
120 V
Input voltage rating VDC 2
370 V
Output voltage rating VDC
48 V
Performance & Technical Specs
Usage location
Indoor only
Number of outputs
1
Installation & Mounting
Mounting type
DIN-rail mounting
Bar code
Bar code (EAN-13):4711287421872
All registered trademarks and trade names are properties of their respective owners and are used only for the clarification of the compatibility of our products with the products of the different manufacturers.

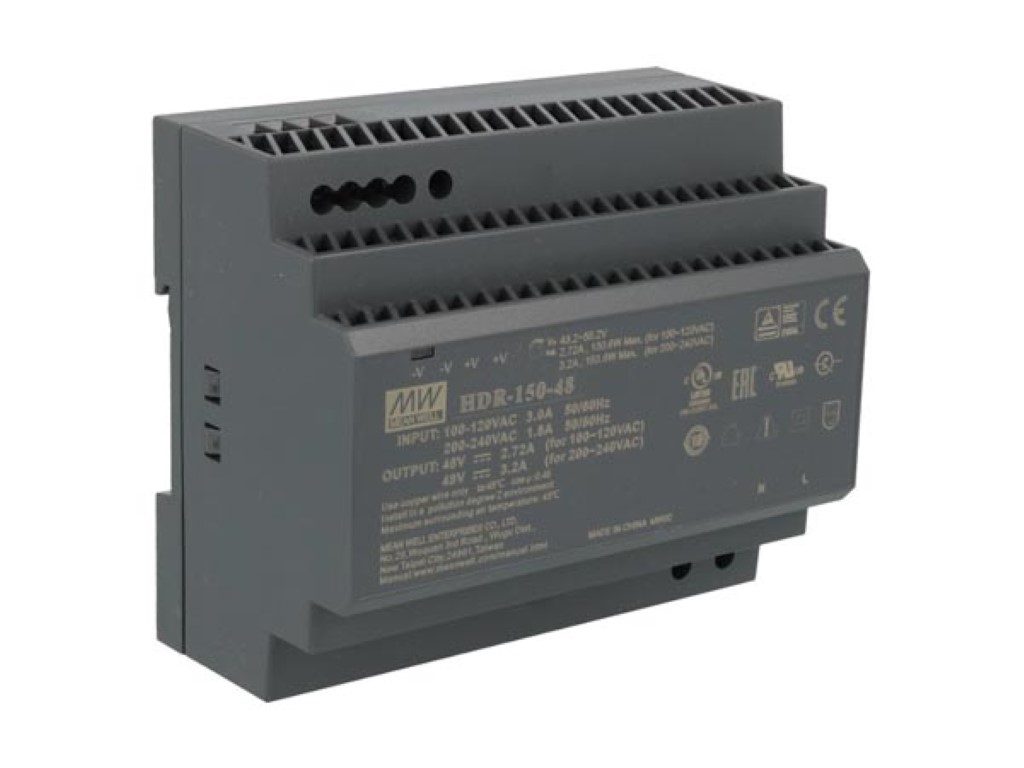

Due to constant product improvements the actual product appearance might differ from the shown images. Product images are for illustrative purposes only.
