PRODUCT OVERVIEW

HF-CHOKE 1µH

1H0

LBL_NONE_TAG

Order

Min. quantity: 5

This product cannot be purchased as a private individual.

Support

Product description

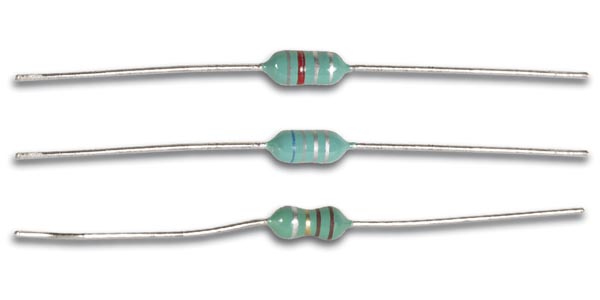

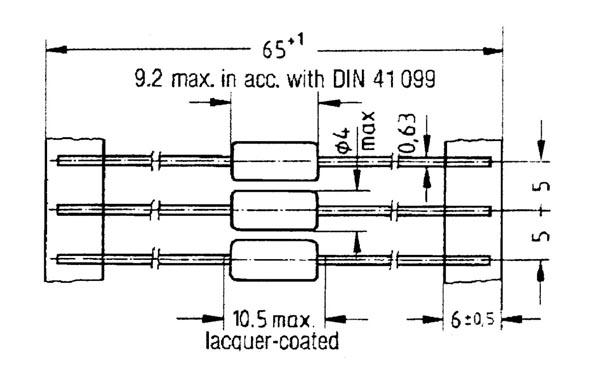

BC (bobbin core) chokes are HF chokes with a copper-wire winding on a special ferrite drum core. The plastic sleeve is flame-retardant. Colour coding is achieved by using rings in accordance with IEC publication 62. The chokes are available on one-piece tapes (suitable for automatic assembly).

conformal coated inductors
special magnetic core structure contributes to high Q and Self-Resonant Frequencies (S.R.F.)
epoxy coated for better reliability
wide inductance range
ideal for auto insertion

Specifications

Physical properties
Primary colours	Green
Additional colours	Blue
Width unit	6 mm
Weight unit	0.39 g
Material	PVC (polyvinyl chloride)

Electrical Properties
Current rating	920 mA
Self-resonant frequency (SRF)	157 MHz

Chemical & Material Composition
Coating type	Epoxy

Performance & Technical Specs
Inductance	1 µH
Minimum quality factor	50
Tolerance	10 %
Diameter lead	0.63 mm
Diameter unit	4 mm

Installation & Mounting
PCB mounting type	Axial

Compliance & Certification
GPSR Responsible - Contact Name	Velleman Group
GPSR Responsible - Address	Legen Heirweg 33, 9890, GAVERE, Belgium
GPSR Responsible - Website	http://www.vellemangroup.eu
GPSR Responsible - Email	customercare@velleman.eu
GPSR Responsible - Telephone number	09/384.36.11

Specifications

Physical properties
Primary colours	Green
Additional colours	Blue
Width unit	6 mm
Weight unit	0.39 g
Material	PVC (polyvinyl chloride)

Electrical Properties
Current rating	920 mA
Self-resonant frequency (SRF)	157 MHz

Chemical & Material Composition
Coating type	Epoxy

Performance & Technical Specs
Inductance	1 µH
Minimum quality factor	50
Tolerance	10 %
Diameter lead	0.63 mm
Diameter unit	4 mm

Installation & Mounting
PCB mounting type	Axial

Compliance & Certification
GPSR Responsible - Contact Name	Velleman Group
GPSR Responsible - Address	Legen Heirweg 33, 9890, GAVERE, Belgium
GPSR Responsible - Website	http://www.vellemangroup.eu
GPSR Responsible - Email	customercare@velleman.eu
GPSR Responsible - Telephone number	09/384.36.11

Bar code

Bar code (EAN-13):5410329252892
