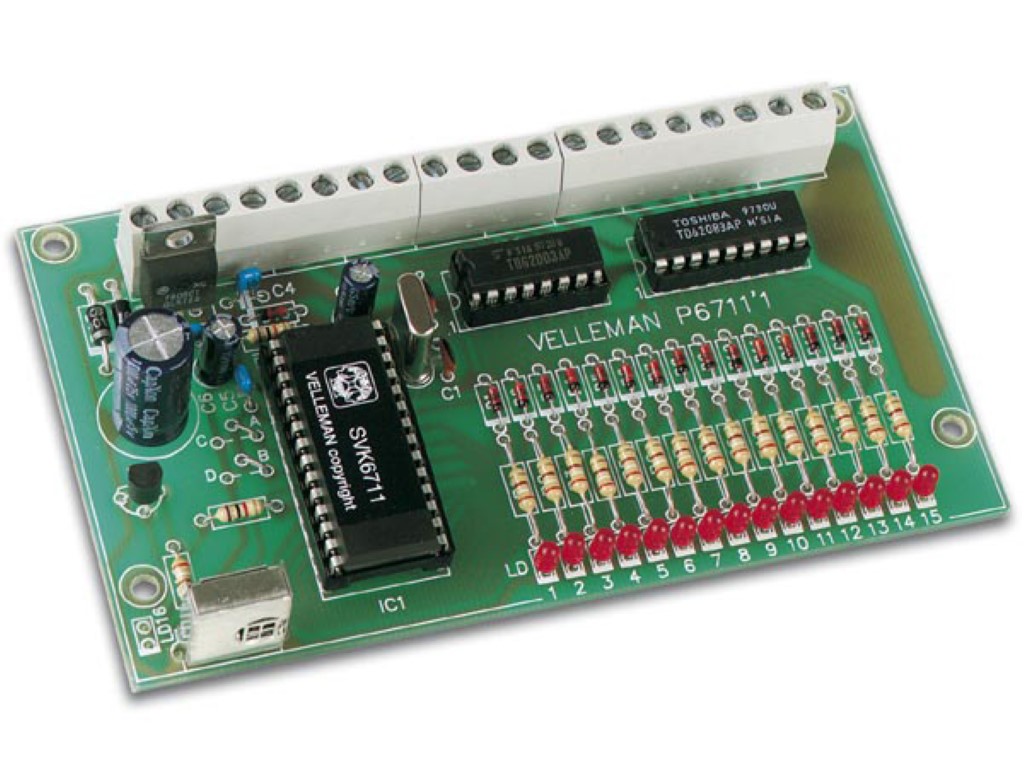

15-CHANNEL IR RECEIVER
|Removed from our assortment|
Velleman Projects Service Forum
Warranty for kits
The receiver has 15 independent outputs. Each output can be operated separately and every output carries the option of being used as a change-over switch or pulse contact. The receiver is built around a microprocessor, allowing two output states to be stored in memory, which can be recalled at all times. Works with the K6710.
- 15 open collector outputs: 50V / 100mA
- LED indication for every output
- change-over or pulse contact: selectable per output
- power supply: 8 - 14VDC or 2 x 12VAC / 150mA
- PCB dimensions: 70 x 145mm (2.8" x 5.7")
- recommended housing: PLASTIC BOX - BLACK 160 x 95 x 55 mm
- recommended transformer: ENCAPSULATED TRANSFORMER 3.8VA 2 x 12V / 2 x 0.159A
- recommended adapter: PS1205
