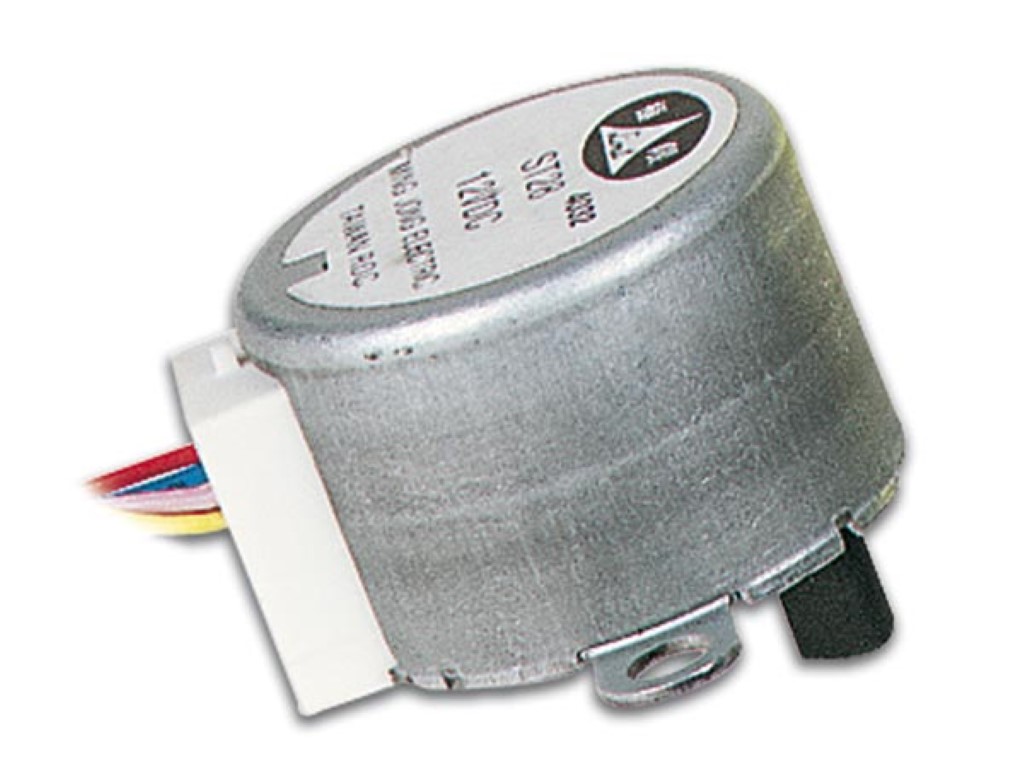

STEPPER MOTOR 12VDC 32mA (ANGLE 5.625° / 64 STEPS)

MOTS1
Popular item
Support
Support
Compare

Features

  • applications:
    • office machines
    • automated machines
    • split air conditioners

Specifications

  • resistance: 280 ohm
  • rated voltage: 12 Vdc
  • current: 32 mA
  • impedance: 380 ohm
  • phase: 4
  • step angle / step: 5.625° / 64
  • reduction ratio: 1/64
  • detent torque: 350 gf.cm
  • pull-in torque: 300 gf.cm
  • max. starting pulse rate: 550 pps
  • max. slewing pulse rate: 90 pps
  • temperature range: 25 °C
  • noise: 40 dB
  • cable: 420 mm AWG 1095#28
  • terminal: JST SPH-002T-P0.5S
  • insulation strength: AC 600 V - 1 sec. cut-off current: 10 mA
  • colours:
    • 1: B1: pink
    • 2: A1: orange
    • 3: A2: yellow
    • 4: B2: blue
    • 5: GND: red
    • 6: GND2 (for MOTS2): brown
