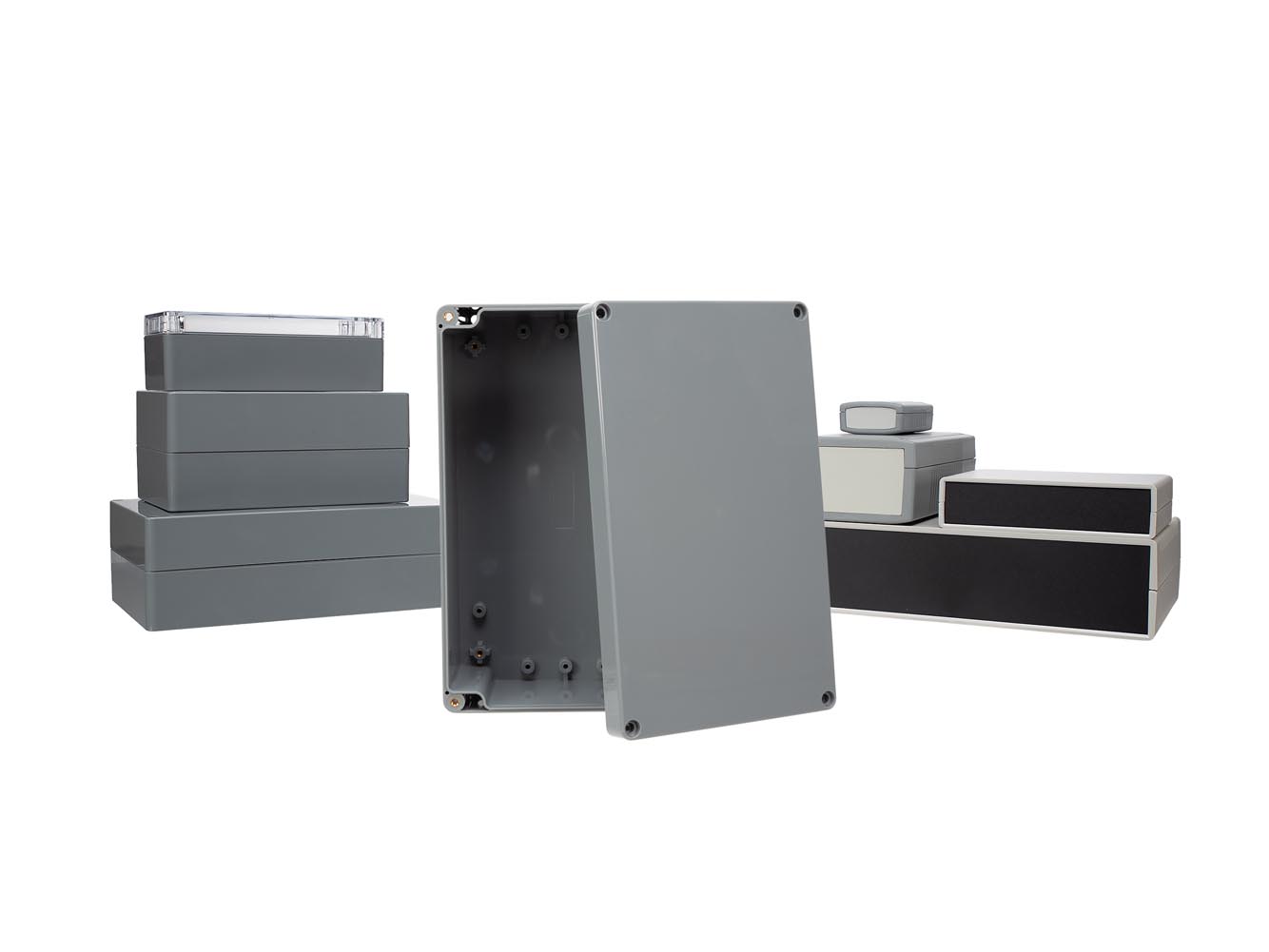

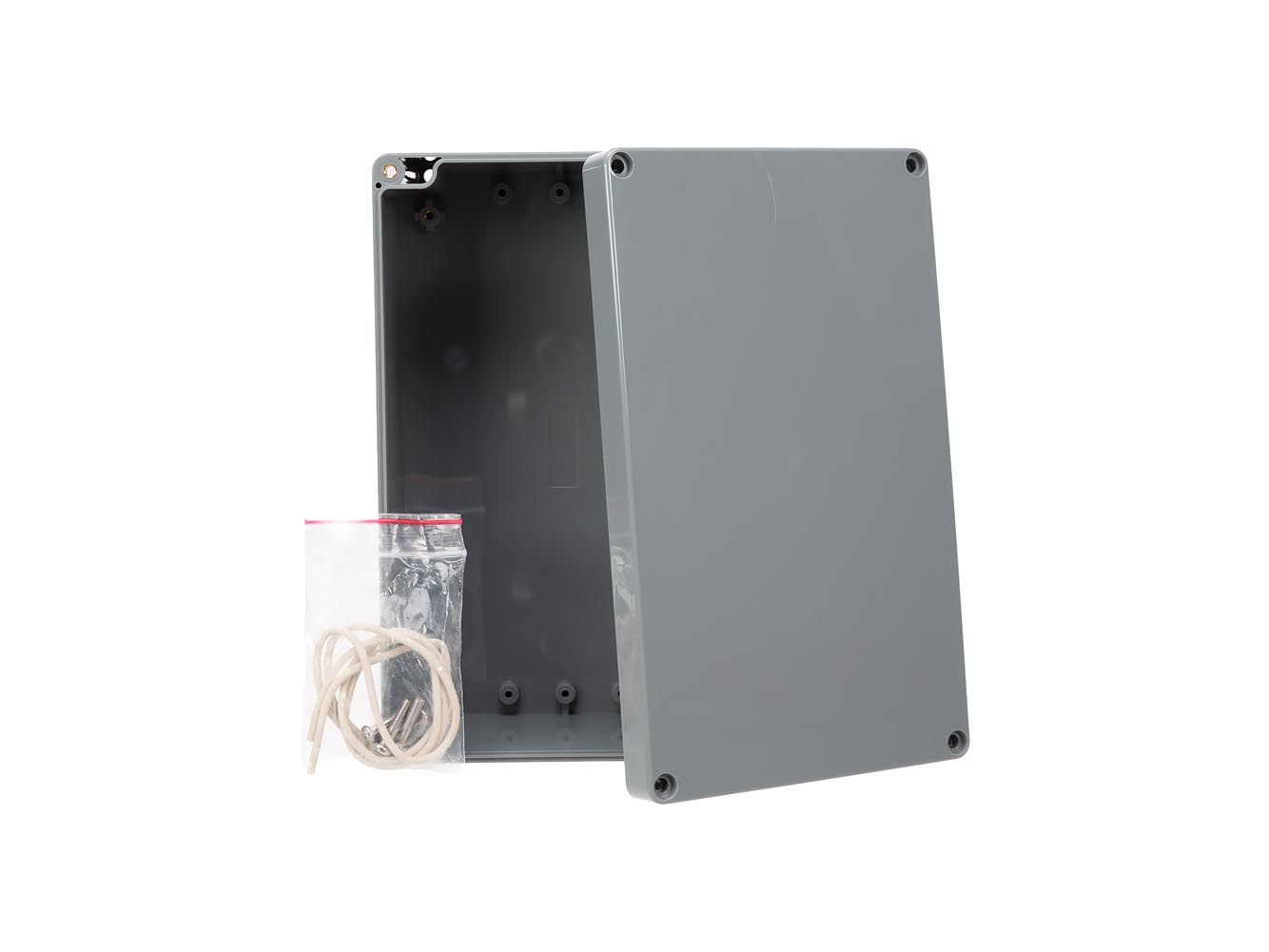

SEALED ABS ENCLOSURE - DARK GREY - 200 x 120 x 75 mm


These enclosures consist of high-impact ABS (operating temperature : -20°C to +100°C).

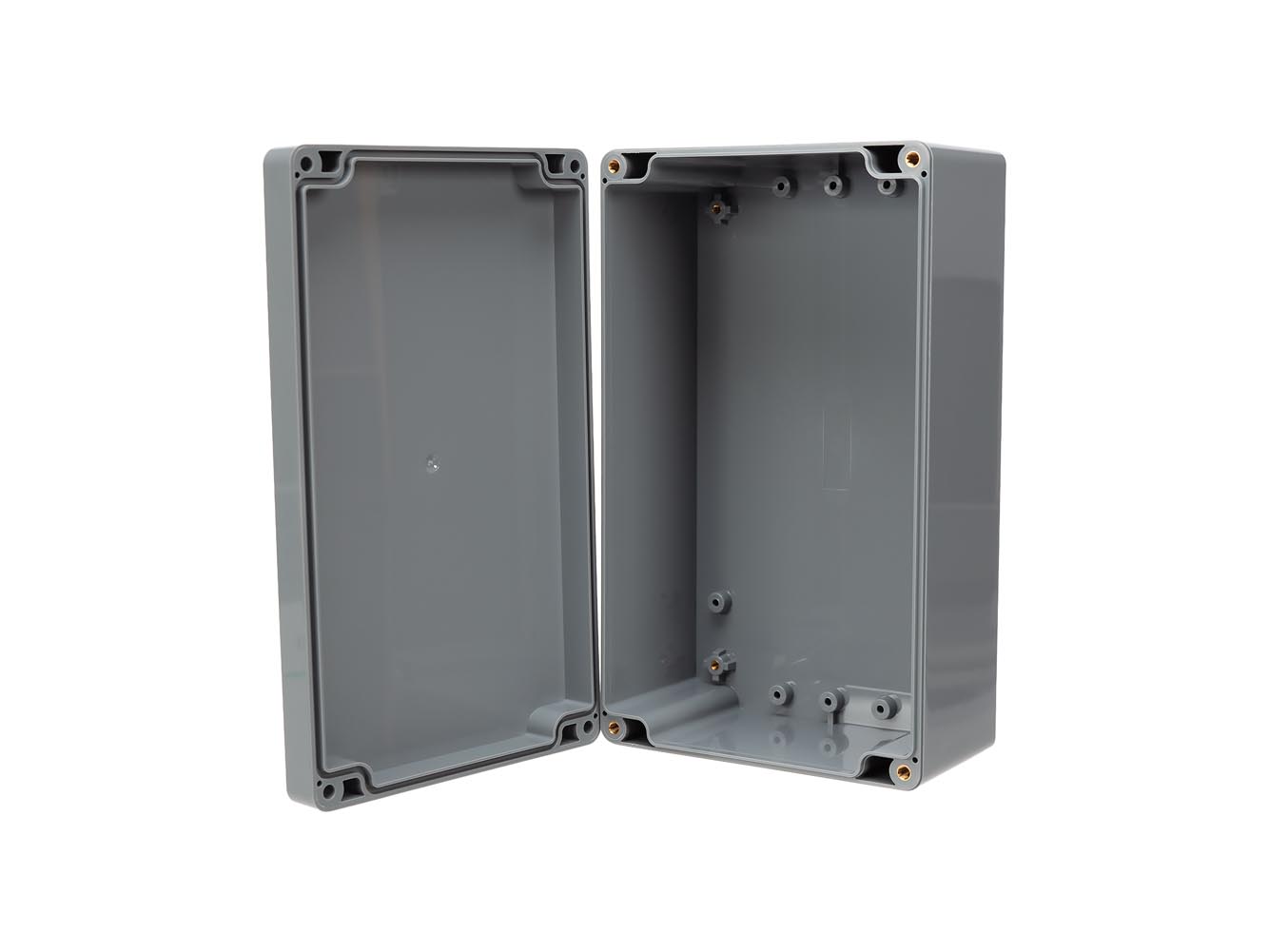

The lid and the base are equipped with a tongue and groove sealing system with a neoprene gasket. The mounting holes and the lid-fixing screws are located outside the sealed area, preventing moisture and dust from entering the enclosure. Internal guide slots allow the vertical mounting of PCB assemblies.
Designed to meet IP65 of IEC529 and NEMA4 (dust- and hoseproof).
The bosses on the internal base allow the horizontal fixing of PCB's or the connection of terminals, etc. with threaded brass inserts.


  • material: ABS
  • dimensions: 200 x 120 x 75 mm
  • colour: dark grey
This item cannot be sold in: Canada

All registered trademarks and trade names are properties of their respective owners and are used only for the clarification of the compatibility of our products with the products of the different manufacturers.
Due to constant product improvements the actual product appearance might differ from the shown images. Product images are for illustrative purposes only.
