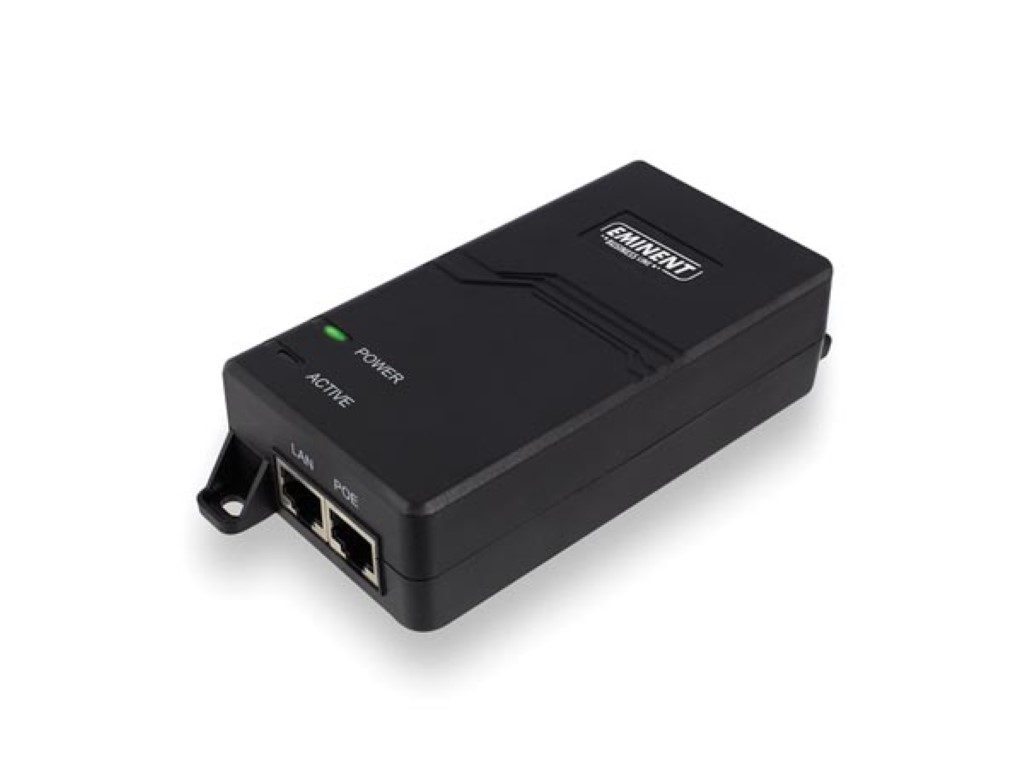

EMINENT - GIGABIT POE INJECTOR
Power your network equipment such as an access point or VoIP telephone via a single network cable with the EM4438 Gigabit PoE Injector. This PoE (power over ethernet) injector is a perfect solution when installing a network device at a location where there is no power socket available. Or when you want to connect an active PoE device which cannot be powered by a power supply. The PoE injector automatically determines the correct power. It complies with the 802.3af/at PoE standard (max. 30W) and is therefore suitable for all hardware that supports this standard. Besides, the EM4438 has a gigabit ethernet connection to ensure fast data transfer. The EM4438 is equipped with an integrated wall mount.
- transmits power and data via a single UTP cable
- powers IP devices at locations without power outlet
- automatic power detection
- gigabit ethernet connection
- IEEE 802.3 at/af compliant
- integrated wall bracket
- plug & play
- for all questions or technical issues, see:
- standard: complies with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at
- power: 30 W max.

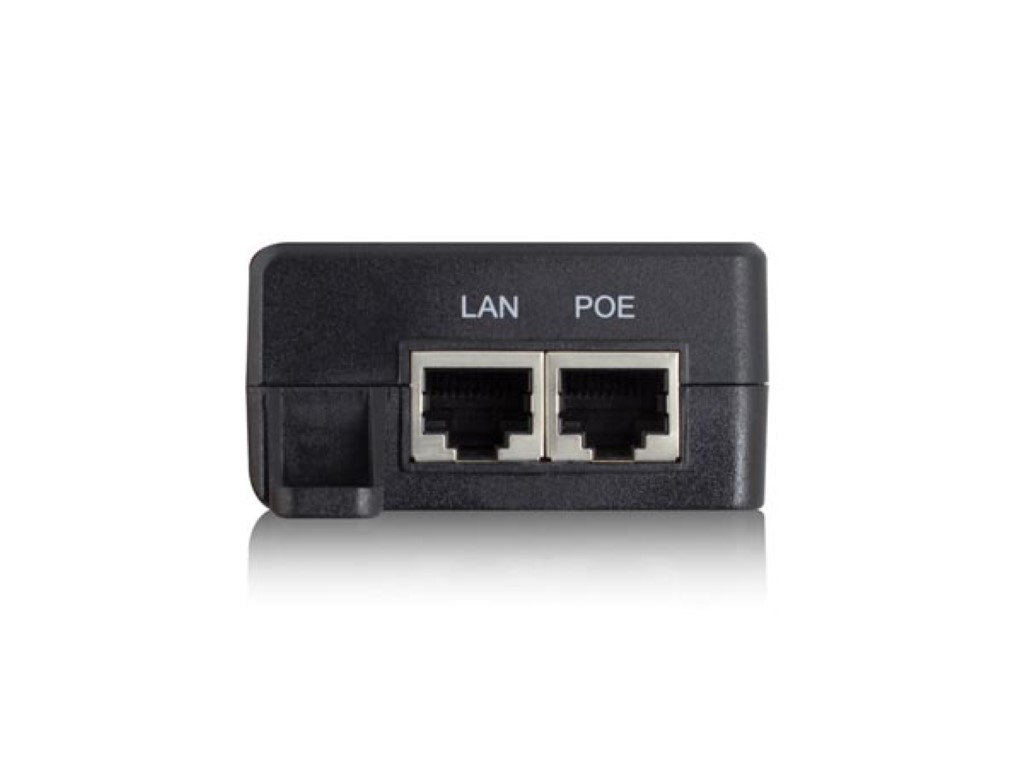

- ports: 2 x 10 / 100 / 1000 Mbps RJ45
- PoE power:
- power +: pin 4 & pin 5
- power -: pin 7 & pin 8
- dimensions: 115 x 30 x 60 mm
- weight: 191 g
