Product description

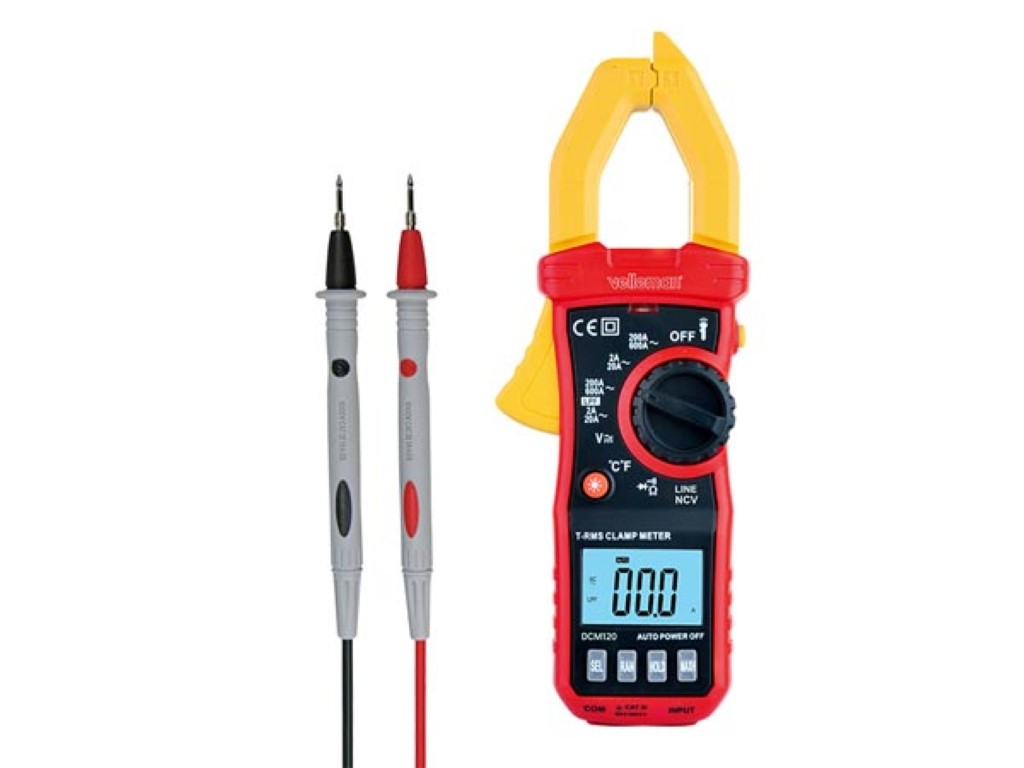

Current measurement combined with accurate multimeter functions eliminate the need to carry both a current clamp and a multimeter. This current clamp is suitable for AC current measurements up to 600 A and AC/DC voltage measurements up to 600 V. The measuring range can be set automatically or manually (0 to 2 A and 20 A to 600 A). Besides voltage and current, the meter is also suitable for measuring temperature, resistance, continuity and diodes. The meter has a 1999 count display with backlight, making measurements easy to read, and a torch for dark rooms. The data hold function allows the instrument to be used on hard-to-reach cables where the display would otherwise be impossible to read. The NCV function allows you to detect the presence of voltage at a safe distance, without making direct contact with the cables. The measuring device is particularly robust and offers high safety according to measurement category CAT III 600 V. |
+ Non-contact voltage detection: The NCV function allows you to detect the presence of voltage at a safe distance, without making direct contact with the cables.+ Easy measurement: During a measurement, there is no need to interrupt the circuit.+ User-friendly: The current clamp is easy to operate and displays measured values on the digital display.+ Versatile: The current clamp measures alternating current, voltage, temperature, resistance, diodes and continuity.+ Automatic and manual range setting (0 to 2 A and 20 A to 600 A). Specifications| Product basic info |
|---|
| Instruction manual languages | Dutch, English, French, German, Polish, Portuguese, Spanish | | Primary colours | Red | | Additional colours | Yellow | | Depth unit | 35 mm | | Height unit | 194 mm | | Width unit | 72 mm | | Weight unit | 230 g | | Material | ABS |
| Physical properties |
|---|
| Display height | 24 mm | | Display width | 37 mm | | LED light | | | Backlight | | | Maximum digits display | 1999 |
| Electrical data |
|---|
| Overload protection | | | AC current | - 2/20/200/600 A (max. line voltage 240 V)
- basic accuracy:
- ± (2.5 % of rdg + 10 digits) for 2 A - 600 A range
- LPF (-3 dB @ 1 KHz)
| | AC voltage | - 2/20/200/600 V
- basic accuracy:
- ± (1.0 % of rdg + 5 digits) for 2 V - 200 V range
- ± (1.2 % of rdg + 5 digits) for 600 V range
- input impedance: 10 Mohm
- frequency range: 50 - 1000 Hz
- maximum input: 600 V
| | DC voltage | - 0.2/2/20/200/600 V
- basic accuracy:
- ± (0.5 % of rdg + 3 digits) for 0.2 V range
- ± (0.8 % of rdg + 5 digits) for 2 V - 200 V range
- ± (1.0 % of rdg + 5 digits) for 600 V range
- input impedance: 10 Mohm
- maximum input: 600 V
| | Diode test | | | Continuity test | | | True rms | | | AC current measurements | 2 A, 20 A, 200 A, 600 A | | AC voltage measurements | 2 V, 20 V, 200 V, 600 V | | DC voltage measurements | 2 V, 20 V, 200 mV, 200 V, 600 V | | Resistance specifications | - 200/2K/20K/200K/2M/20M
- basic accuracy:
- ± (1.0 % of rdg + 10 digits) for 200 ohm range
- ± (0.8 % of rdg + 5 digits) for 2 K - 2 M range
- ± (2.0 % of rdg + 10 digits) for 20 M range
- overload protection: 15 s max. 250 V (all ranges)
| | Maximum AC current | 600 A |
| Technical data |
|---|
| Safety standard | EN 61010-1 | | Safety rating | Cat III / 600 V | | Automatic power-off function | | | Pollution degree | 2 | | Data-hold function | |
| Set-up options |
|---|
| Alarm sound type | Buzzer |
| Environmental data |
|---|
| Temperature specifications | - -20 °C - 1000 °C
- basic accuracy:
- ± (5 % of rdg + 4 °C) for -20 °C to 0 °C range
- ± (2 % of rdg + 3 °C) for 0 °C to 400 °C range
- ± (3 % of rdg + 3 °C) for 400 °C to 1000 °C range
|
| Power supply |
|---|
| Battery required | | | Number of batteries | 3 | | Input voltage rating VAC range | 0-600 V | | Battery operated | | | Battery voltage rating | 4.5 V | | Input voltage rating VDC range | 0-600 V | | Low battery indicator | | | Battery composition | Alkaline | | Battery IEC size | AAA (LR03, R03, FR03, HR03, KR03, ZR03 ,24A, 24D, 24LF, UM4, Micro, MN2400, MX2400, MV2400) |
|
+ Non-contact voltage detection: The NCV function allows you to detect the presence of voltage at a safe distance, without making direct contact with the cables.+ Easy measurement: During a measurement, there is no need to interrupt the circuit.+ User-friendly: The current clamp is easy to operate and displays measured values on the digital display.+ Versatile: The current clamp measures alternating current, voltage, temperature, resistance, diodes and continuity.+ Automatic and manual range setting (0 to 2 A and 20 A to 600 A). | |
Specifications| Product basic info |
|---|
| Instruction manual languages | Dutch, English, French, German, Polish, Portuguese, Spanish | | Primary colours | Red | | Additional colours | Yellow | | Depth unit | 35 mm | | Height unit | 194 mm | | Width unit | 72 mm | | Weight unit | 230 g | | Material | ABS |
| Physical properties |
|---|
| Display height | 24 mm | | Display width | 37 mm | | LED light | | | Backlight | | | Maximum digits display | 1999 |
| Electrical data |
|---|
| Overload protection | | | AC current | - 2/20/200/600 A (max. line voltage 240 V)
- basic accuracy:
- ± (2.5 % of rdg + 10 digits) for 2 A - 600 A range
- LPF (-3 dB @ 1 KHz)
| | AC voltage | - 2/20/200/600 V
- basic accuracy:
- ± (1.0 % of rdg + 5 digits) for 2 V - 200 V range
- ± (1.2 % of rdg + 5 digits) for 600 V range
- input impedance: 10 Mohm
- frequency range: 50 - 1000 Hz
- maximum input: 600 V
| | DC voltage | - 0.2/2/20/200/600 V
- basic accuracy:
- ± (0.5 % of rdg + 3 digits) for 0.2 V range
- ± (0.8 % of rdg + 5 digits) for 2 V - 200 V range
- ± (1.0 % of rdg + 5 digits) for 600 V range
- input impedance: 10 Mohm
- maximum input: 600 V
| | Diode test | | | Continuity test | | | True rms | | | AC current measurements | 2 A, 20 A, 200 A, 600 A | | AC voltage measurements | 2 V, 20 V, 200 V, 600 V | | DC voltage measurements | 2 V, 20 V, 200 mV, 200 V, 600 V | | Resistance specifications | - 200/2K/20K/200K/2M/20M
- basic accuracy:
- ± (1.0 % of rdg + 10 digits) for 200 ohm range
- ± (0.8 % of rdg + 5 digits) for 2 K - 2 M range
- ± (2.0 % of rdg + 10 digits) for 20 M range
- overload protection: 15 s max. 250 V (all ranges)
| | Maximum AC current | 600 A |
| Technical data |
|---|
| Safety standard | EN 61010-1 | | Safety rating | Cat III / 600 V | | Automatic power-off function | | | Pollution degree | 2 | | Data-hold function | |
| Set-up options |
|---|
| Alarm sound type | Buzzer |
| Environmental data |
|---|
| Temperature specifications | - -20 °C - 1000 °C
- basic accuracy:
- ± (5 % of rdg + 4 °C) for -20 °C to 0 °C range
- ± (2 % of rdg + 3 °C) for 0 °C to 400 °C range
- ± (3 % of rdg + 3 °C) for 400 °C to 1000 °C range
|
| Power supply |
|---|
| Battery required | | | Number of batteries | 3 | | Input voltage rating VAC range | 0-600 V | | Battery operated | | | Battery voltage rating | 4.5 V | | Input voltage rating VDC range | 0-600 V | | Low battery indicator | | | Battery composition | Alkaline | | Battery IEC size | AAA (LR03, R03, FR03, HR03, KR03, ZR03 ,24A, 24D, 24LF, UM4, Micro, MN2400, MX2400, MV2400) |
| |
|
