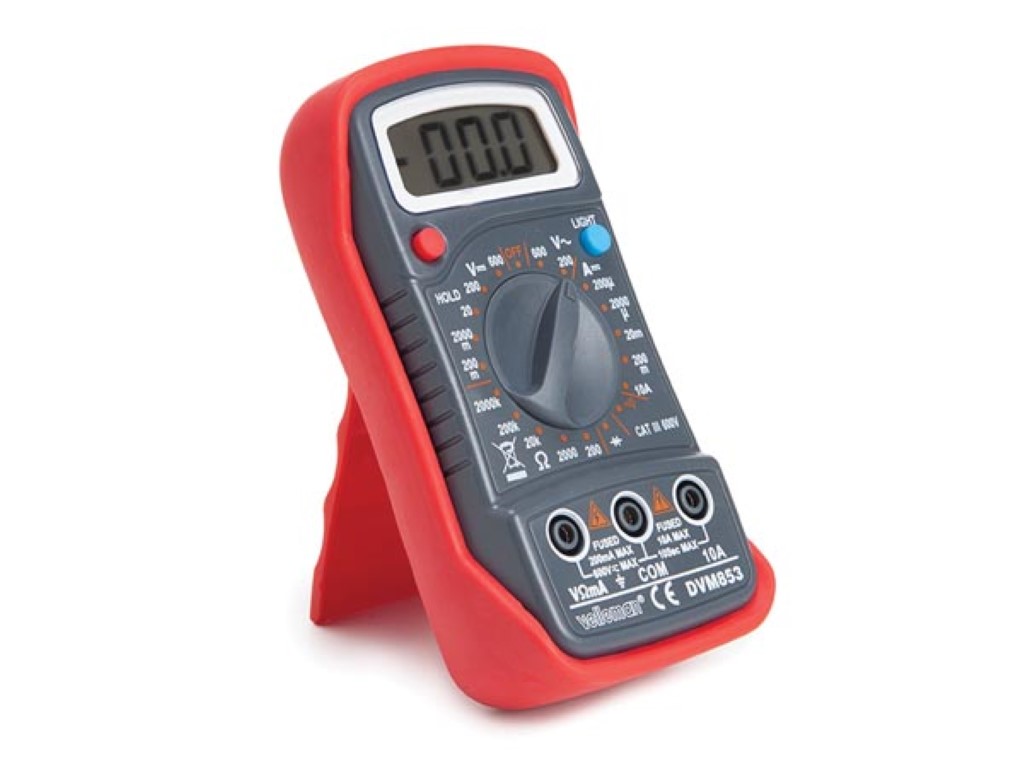

Multimeters are small meters that do not cost much, but can save costs by detecting sources of error.
Whether you are a professional who works with electronics on a daily basis or an enthusiastic DIYer who likes to DIY, this digital multimeter offers reliable and accurate results.
The multimeter is equipped with various functions, including measuring voltage, current and resistance.
With a wide range of measurement ranges, you can make voltage measurements up to 500 VAC/DC, current measurements up to 10 A and resistance measurements up to 2M Ohms. A vibration alarm indicates when readings are available. Moreover, it comes with separate measurement leads, so you can get started right away.
With the built-in data hold function, you can easily hold and read measured values even after disconnecting the measurement leads. This ensures accurate and reliable measurements.
+ Built-in data hold function: This function allows you to easily hold and read measured values even after disconnecting the measurement leads. This ensures accurate and reliable measurements. + High accuracy with 1999 counts: This multimeter offers high accuracy in measuring various electrical values such as voltage (volts), current (amps) and resistance (ohms). + Safe electrical measurements: The instrument complies with safety category CAT III 600 V for increased safety. + Automatic and manual range setting. + Backlight: A large backlit display ensures good readability even in poor lighting conditions.
Specifications
Physical properties:
Cable length: 0.7 m
Display height: 27 mm
Display width: 54 mm
Display type: LCD
Backlight: Yes
Maximum digits display: 1999
Electrical data:
AC voltage:
0-200 V / 500 V
basic accuracy: ± (1.5% rdg + 3 digits)
input impedance: 450 kOhm
frequency range: 40-500 Hz
overload protection: 500 VDC or AC rms
Audible continuity measurement: Yes
Audible continuity: built-in buzzer sounds if resistance is less than 120 Ohm
Automatic polarity indication: Yes
DC current:
basic accuracy: ± (1.5% rdg + 2 digits), ± (2.0% rdg + 2 digits) for 200 mA range; ± (2.0% rdg + 3 digits) for 10 A range
overload protection: 0.5 A / 500 V fuse for µA and mA range; 10 A / 500 V for 10 A range
DC voltage:
basic accuracy: ± (1.0% rdg + 2 digits) , ± (1.2% rdg + 2 digits) for 500 V range
input impedance: 1 MOhm
overload protection: 500 V DC or AC rms
Diode test: Yes
Diode test specifications:
test forward voltage of diode
forward DC current: approx. 10 µA
reversed DC voltage : approx. 1.8 V
Fuse type: F 0.50 A / 500 V, 5 x 20 mm, F 10 A / 500 V, 5 x 20 mm
Out of range indication: Yes
Transistor test: No
True rms: No
AC voltage measurements: 0-200 V, 500 V
DC current measurements: 10 A, 2 mA, 200 µA, 200 mA
DC voltage measurements: 0-200 mV, 2 V, 20 V, 200 V, 500 V
Set contents: test lead probe : CAT III 600 V - 12 A - 18 AWG - 70 cm
Product basic info:
Colour unit: Black
Additional colour: Red
Depth unit: 30 mm
Height unit: 138 mm
Width unit: 67 mm
Weight unit: 120 g
Material: ABS
+ Built-in data hold function: This function allows you to easily hold and read measured values even after disconnecting the measurement leads. This ensures accurate and reliable measurements. + High accuracy with 1999 counts: This multimeter offers high accuracy in measuring various electrical values such as voltage (volts), current (amps) and resistance (ohms). + Safe electrical measurements: The instrument complies with safety category CAT III 600 V for increased safety. + Automatic and manual range setting. + Backlight: A large backlit display ensures good readability even in poor lighting conditions.
Specifications
Physical properties:
Cable length: 0.7 m
Display height: 27 mm
Display width: 54 mm
Display type: LCD
Backlight: Yes
Maximum digits display: 1999
Electrical data:
AC voltage:
0-200 V / 500 V
basic accuracy: ± (1.5% rdg + 3 digits)
input impedance: 450 kOhm
frequency range: 40-500 Hz
overload protection: 500 VDC or AC rms
Audible continuity measurement: Yes
Audible continuity: built-in buzzer sounds if resistance is less than 120 Ohm
Automatic polarity indication: Yes
DC current:
basic accuracy: ± (1.5% rdg + 2 digits), ± (2.0% rdg + 2 digits) for 200 mA range; ± (2.0% rdg + 3 digits) for 10 A range
overload protection: 0.5 A / 500 V fuse for µA and mA range; 10 A / 500 V for 10 A range
DC voltage:
basic accuracy: ± (1.0% rdg + 2 digits) , ± (1.2% rdg + 2 digits) for 500 V range
input impedance: 1 MOhm
overload protection: 500 V DC or AC rms
Diode test: Yes
Diode test specifications:
test forward voltage of diode
forward DC current: approx. 10 µA
reversed DC voltage : approx. 1.8 V
Fuse type: F 0.50 A / 500 V, 5 x 20 mm, F 10 A / 500 V, 5 x 20 mm
Out of range indication: Yes
Transistor test: No
True rms: No
AC voltage measurements: 0-200 V, 500 V
DC current measurements: 10 A, 2 mA, 200 µA, 200 mA
DC voltage measurements: 0-200 mV, 2 V, 20 V, 200 V, 500 V
