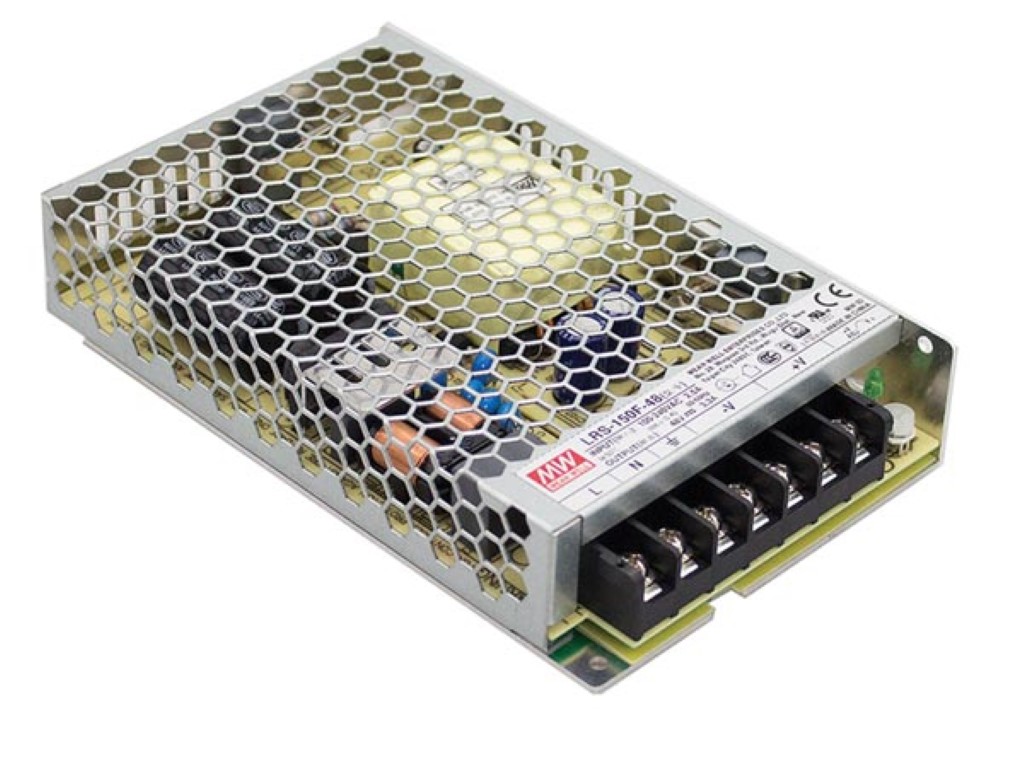

ITE SWITCHING POWER SUPPLY - SINGLE OUTPUT - 150 W - 24 V - CLOSED FRAME - FOR PROFESSIONAL USE ONLY

LRS-150F-24
Support
Infosheet
Warranty
Support
Compare

Features

  • universal AC input / full range
  • cooling: by free air convection
  • LED indicator for power on
  • 100 % full load burn-in test
  • withstands 300 VAC surge input for 5 seconds
  • high operating temperature up to 70 °C
  • withstands 5G vibration test
  • no load power consumption < 0.5 W
  • high efficiency, long life and high reliability
  • 3 years warranty
  • protection against: short circuit / overload / overvoltage / over temperature
  • miniature size and 1U low profile
  • operating altitude up to 5000 m
  • terminal block cover not included
  • for professional use only
  • This device must be installed by a qualified person.

Specifications

  • output:
    • DC voltage: 24 V
    • rated current: 6.5 A
    • current range: 0-6.5 A
    • rated power: 156 W
    • ripple & noise (max.): 200 mVp-p
    • voltage adj. range: 21.6-28.8 V
    • voltage tolerance: ± 1.0 %
    • line regulation: ± 0.5 %
    • load regulation: ± 0.5 %
    • setup, rise time:
      • 500 ms, 30 ms / 230 VAC
      • 500 ms, 30 ms / 115 VAC at full load
    • hold up time (typ.):
      • 16 ms / 230 VAC
      • 12 ms / 115 VAC at full load
  • input:
    • voltage range:
      • 85-264 VAC
      • 120-370 VDC
      • withstands 300 VAC surge for 5 s
    • frequency range: 47-63 Hz
    • efficiency (typ.): 89 %
    • AC current (typ.):
      • 2.8 A / 115 VAC
      • 1.6 A / 230 VAC
    • inrush current (typ.): cold start 60 A / 230 VAC
    • leakage current: < 0.75 mA / 240 VAC
  • protection:
    • overload:
      • 110-140 % rated output power
      • protection type: hiccup mode, recovers automatically after fault condition is removed
    • overvoltage:
      • 28.8-33.6 V
      • protection type: shut down o/p voltage, re-power on to recover
    • over temperature: shut down o/p voltage, re-power on to recover
  • environment:
    • operating temperature: -30 to +70 °C
    • operating humidity: 20-90 % RH non-condensing
    • storage: -40 to +85 °C, 10-95 % RH
    • temperature coefficient: ± 0.03 %/°C (0-50 °C)
    • vibration: 10-500 Hz, 5G 10 min/1 cycle, period for 60 min each along X, Y, Z axes
  • safety & EMC:
    • safety standards: UL60950-1, TUV EN60950-1, EN60335-1, EN61558-1 ,CCC GB4943 approved
    • withstand voltage:
      • input to output: 3.75 kVAC
      • input to ground: 2 kVAC
      • output to ground: 1.25 kVAC
    • isolation resistance: input to output, input to ground, output to ground: 100 Mohm / 500 VDC / 25 °C / 70 % RH
    • EMC emission: compliance to EN55022 (CISPR22) Class B; EN61000-3-2,-3
    • EMC immunity: compliance to EN61000-4-2,3,4,5,6,8,11; EN61000-6-2 (EN50082-2), heavy industry level, criteria A
  • other:
    • MTBF: 648,600 hrs min. MIL-HDBK-217F (25 °C)
    • dimensions (L x W x H): 159 x 97 x 30 mm
    • weight: 0.48 kg
