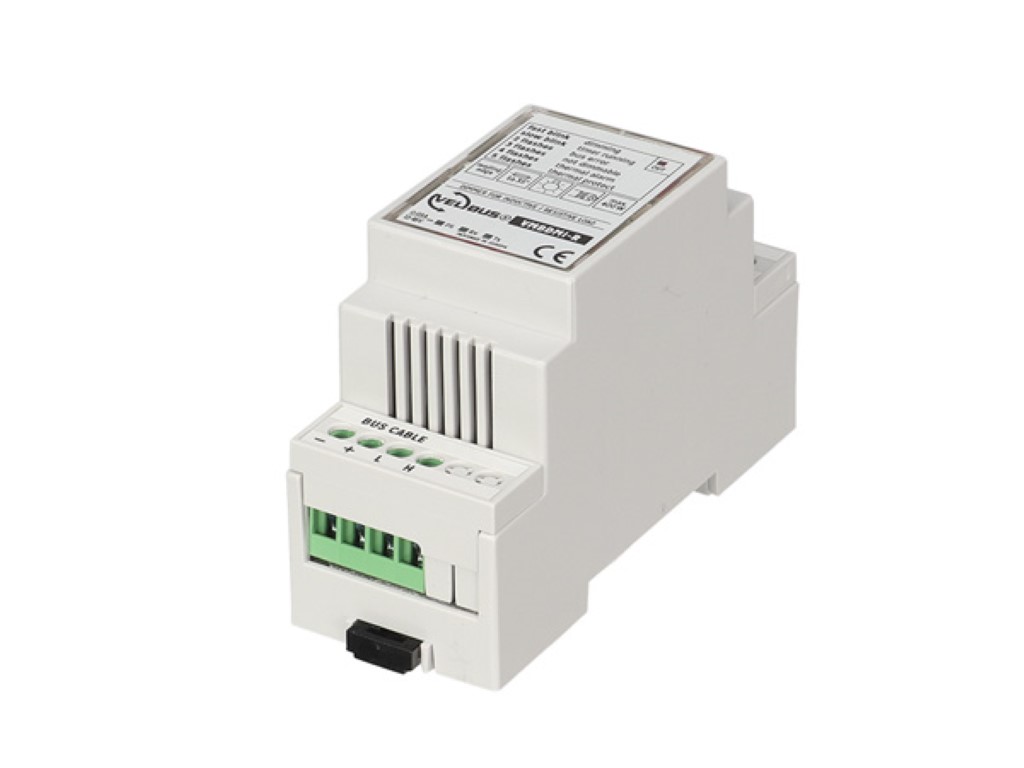

single channel TRIAC dimmer for resistive and inductive loads

VMBDMI-R

Discontinued

View on velleman.eu.

This item is replaced by: VMB8DC-20

Order

No stock

Options & Spare parts

Options (1)

Support

Short manual

Downloads (10)

Product FAQ (8)

single channel TRIAC dimmer for resistive and inductive loads

Product description

1-channel 400W dimmer, suited for incandescent lamps and certain LED lamps.
(For best results with mains LED lamps, we advise the VMB4DC with a universal 0-10V dimmer.)

leading edge dimmer
suited for: incandescent bulbs, halogen lamps on AC, low-voltage halogen lamps in combination with dimmable wire-wound iron core
soft turn on / off extends bulb life
thermal protection
switches off with too inductive loads (feature can be disabled for use with dimmable LED lamps)
250 possible addresses
operating modes:
- dimming
- slow on / off
- timer
- multi level dimmer
- moods
turn off time: from 1 s to 3 days
dimming speed: from 2 s to 23 h
dimming from 0 until 100 % in 4 s
minimum level can be preset
built-in not resettable fuse

Specifications

Product basic info
Instruction manual languages	Dutch, English, French
Primary colours	Grey
Additional colours	Green
Depth unit	58 mm
Height unit	90 mm
Width unit	36 mm
Weight unit	140 g
Material	ABS

Physical properties
Number of channels	1
Width DIN modules	2

Electrical data
Current rating	30 mA
Fuse type	T 4 A (slow)
Electrical protection	Thermal
Maximum load range	40-400 W

Technical data
Protocol	Velbus
Thermal protection specifications	> 80 °C to 25 % light intensity > 90 °C to 0 % light intensity

Set-up options
Dimming type	Triac dimming
Operation mode	Dimming, Moods, Multi level dimmer, Slow on/off, Timer

Operational properties
Possible address	250

Power supply
Input voltage rating VAC range	220-240 V
Input voltage rating VDC set	12/18 V

Only a qualified professional may carry out the installation in conformity with in force legislation and standards.
