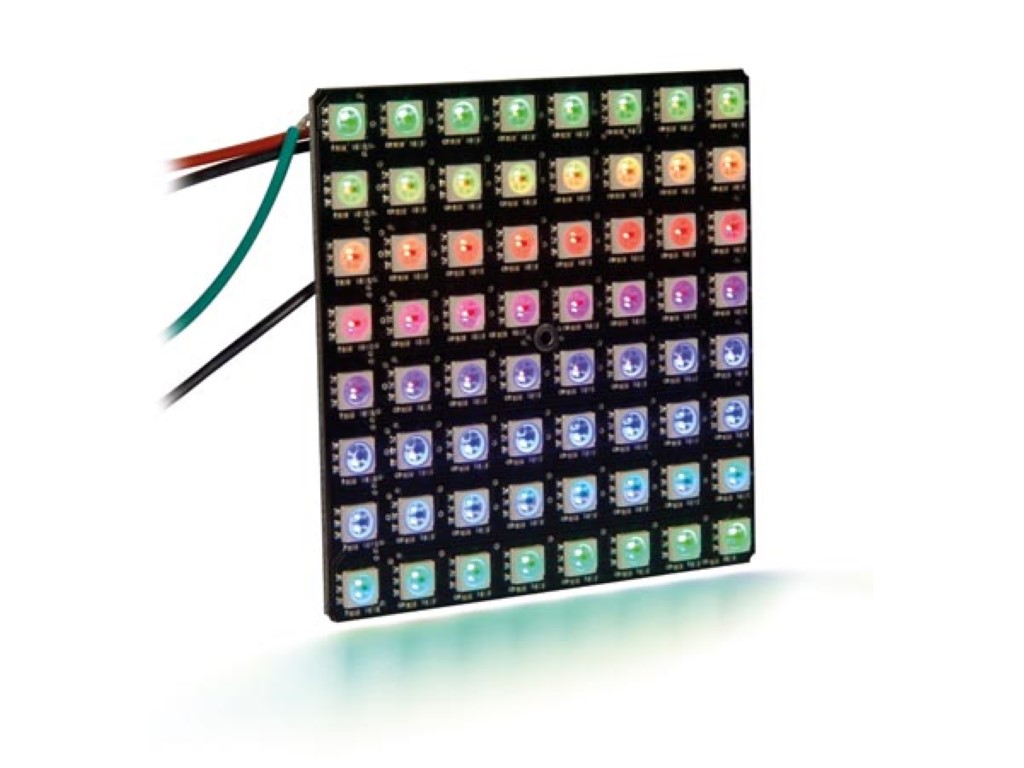

64 LED RGB MATRIX


Display dazzling, colourful, 2D or 3D, static or animated images and even video straight from your favorite microcontroller platform. Quantity: 1 panel!

Important: To avoid damage to the panel, make sure to observe the safety information supplied with the panel.

Features

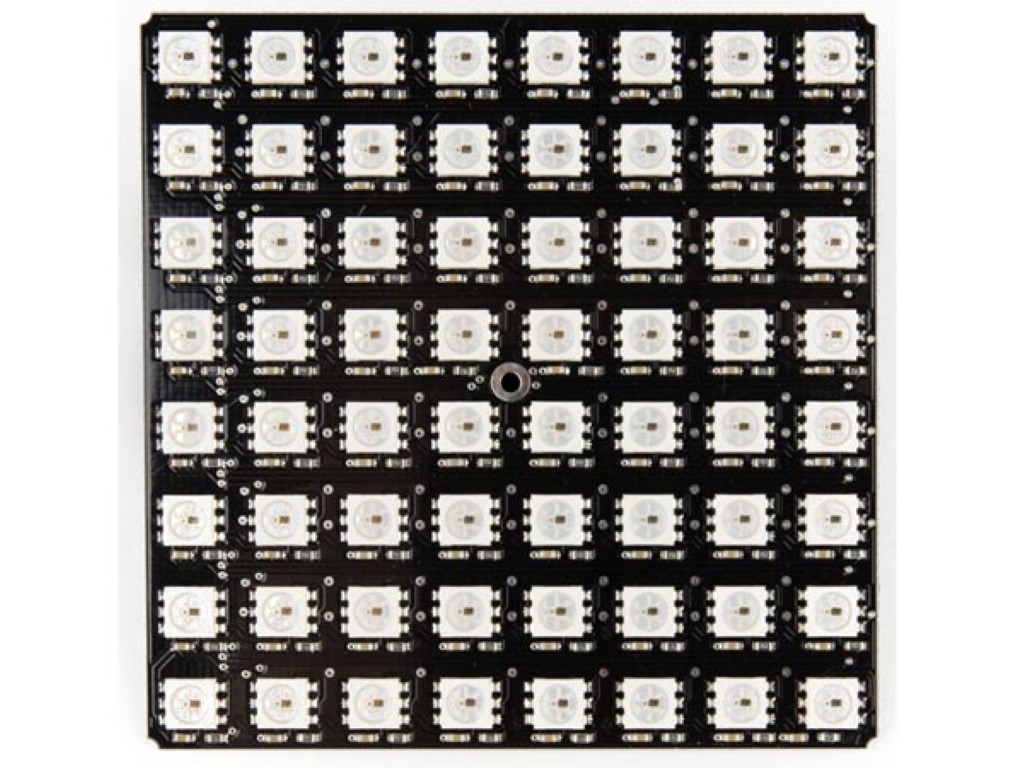

  • 8 x 8 matrix (1 panel)
  • each led is individually addressable
  • 16 million colours
  • extremely bright

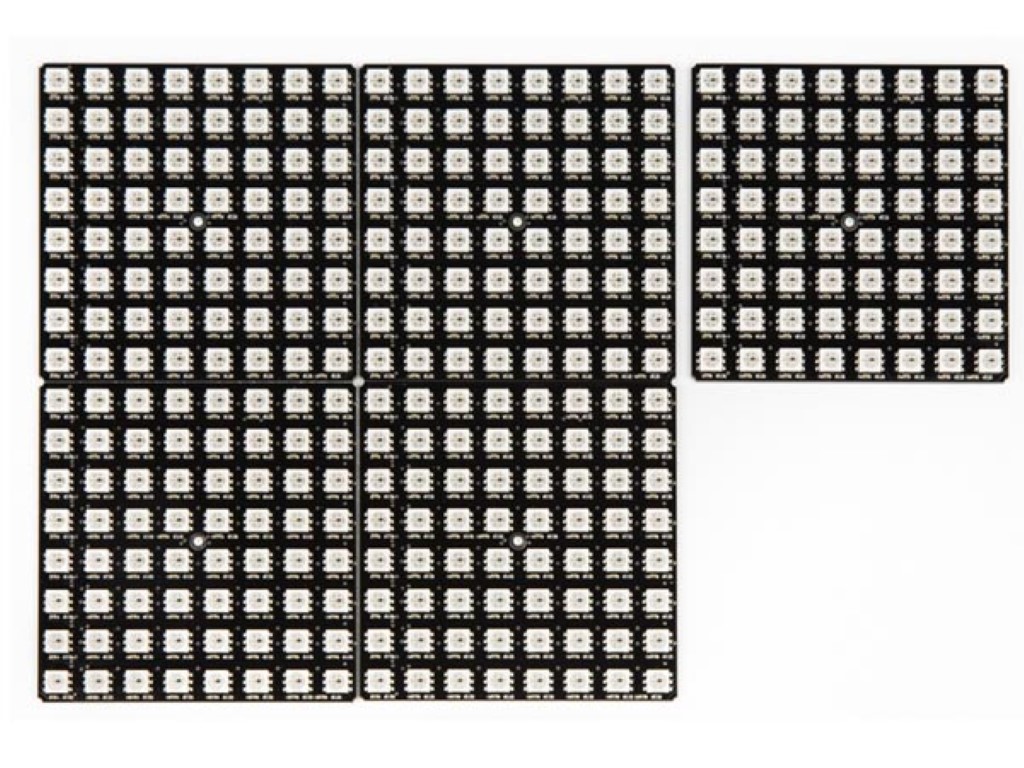

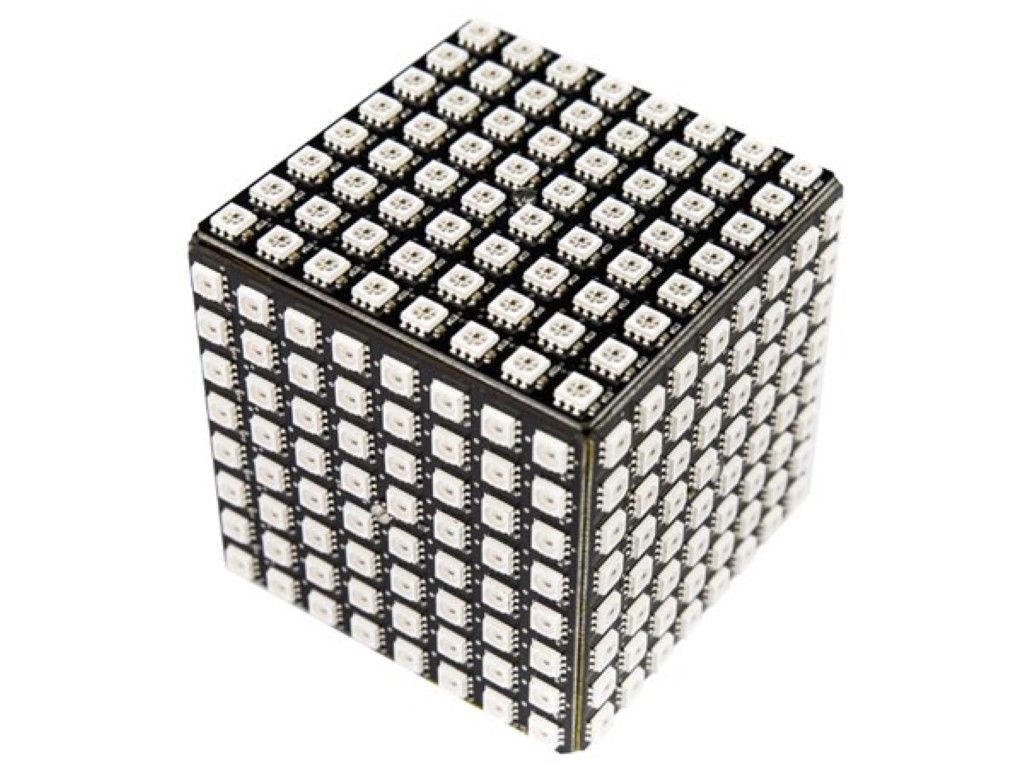

  • units can be chained to create bigger displays
  • no gaps between chained units
  • 3-wire interface
  • requires only 1 microcontroller I/O
  • drive the panels with the platform of your choice
    (Arduino Platform™: Uno, Mega, Yún, Teensy, …)
  • compatible with several popular Arduino™ libraries
  • .STL file for 3D-printable mounts available

Specifications

  • WS2812S LEDs
  • power supply: 5 VDC
  • current consumption: 3,5 A / panel max.
  • dimensions: 72 x 72 x 3 mm (2.8" x 2.8" x 0.1")
  • LED pitch: 9 mm (0,35")

Extras

  • Important:

    to avoid damage to your expensive panels, make sure to observe the safety information supplied with your panel.
