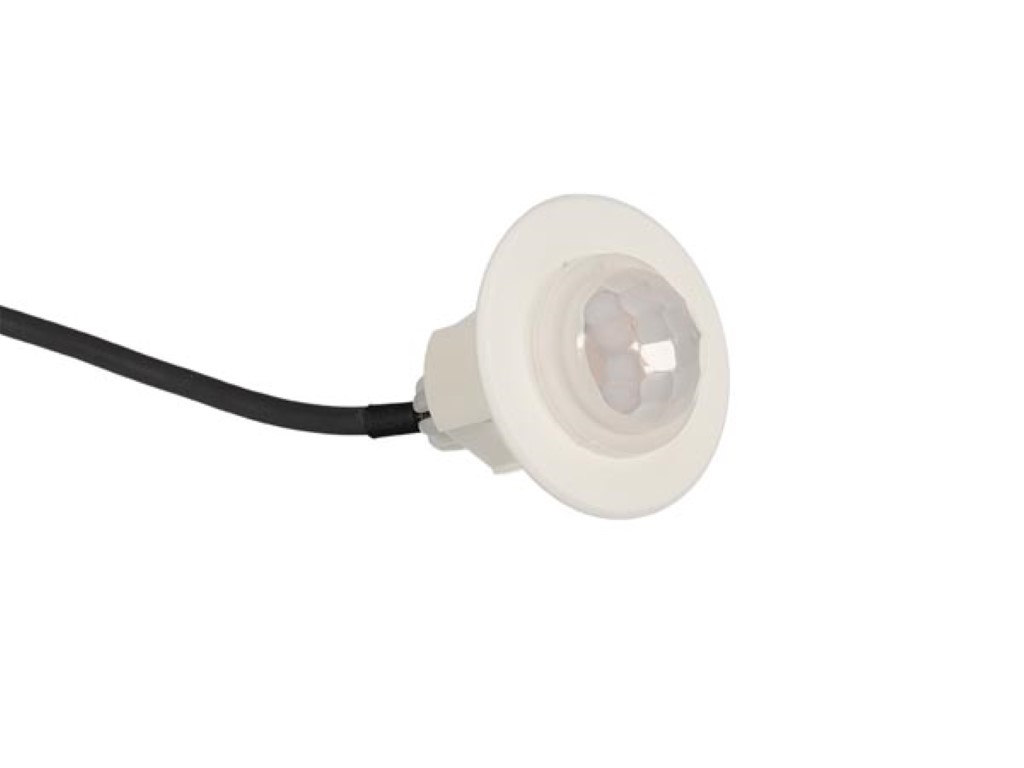

mini motion and twilight sensor for recessed or surface mounting

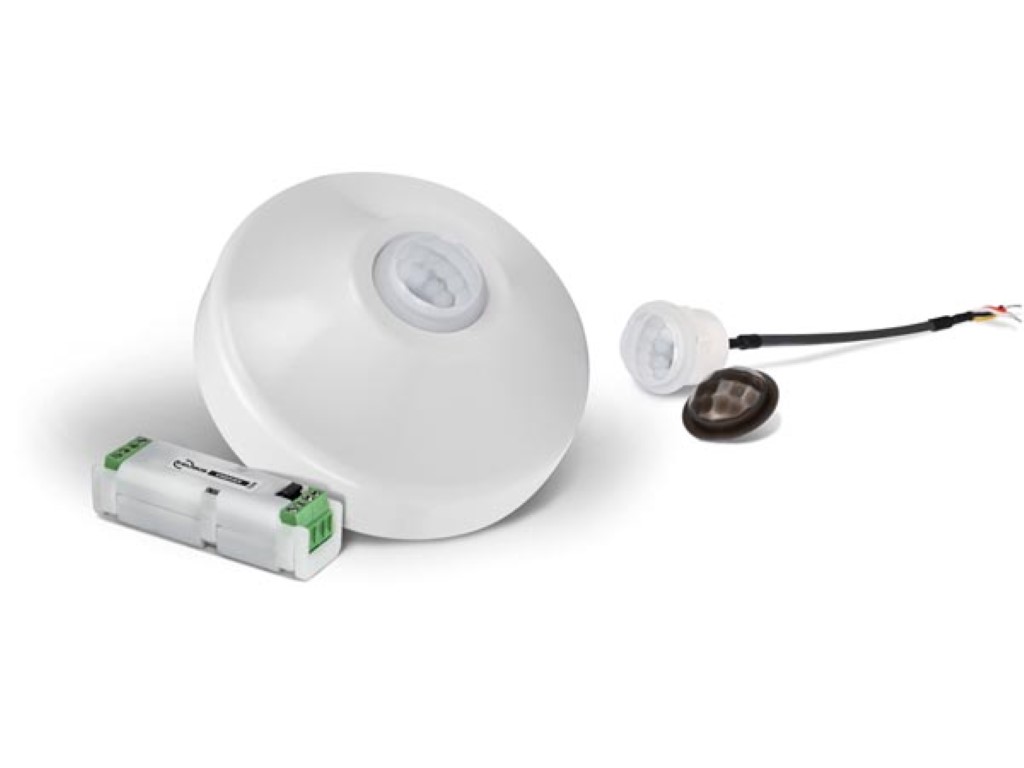

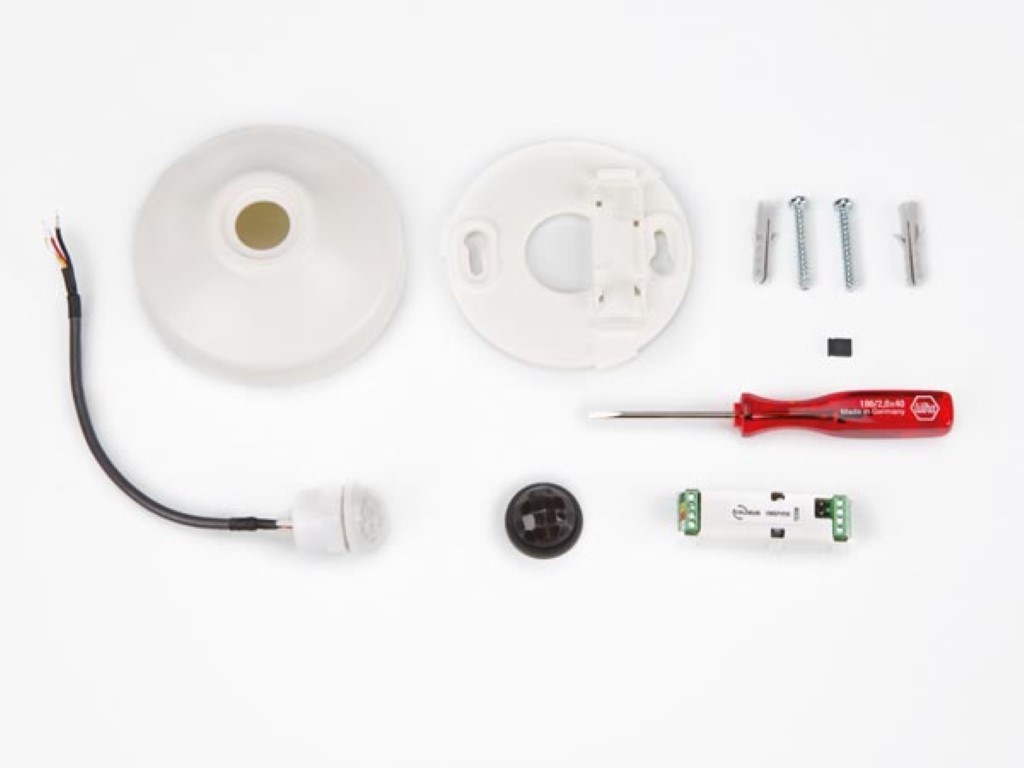

The VMBPIRM is much more than a miniature motion detector for indoor use. You can simultaneously use motion, twilight and even absence detection. The built-in astronomical clock allows the VMBPIRM to operate time-dependently. The module also detects motion for a passage signal and light dependent motion for lighting control. Thanks to its housing (included), the VMBPIRM is also suited for surface mounting.

Features

Specifications

  • detection angle: 100°
  • detection distance: max. diameter 6 m (at 2.5 m height)
  • light sensitivity: 1 - 100 lux
  • required voltage supply: 15±3VDC
  • current consumption: 10 mA
  • dimensions:
    • part to be built in: 55 x 15 x 15 mm (fits through an Ø 18 mm hole)
    • PIR sensor: Ø 22 mm (mounting depth 20 mm)
    • housing for surface mounting: Ø 75 mm / height 35 mm

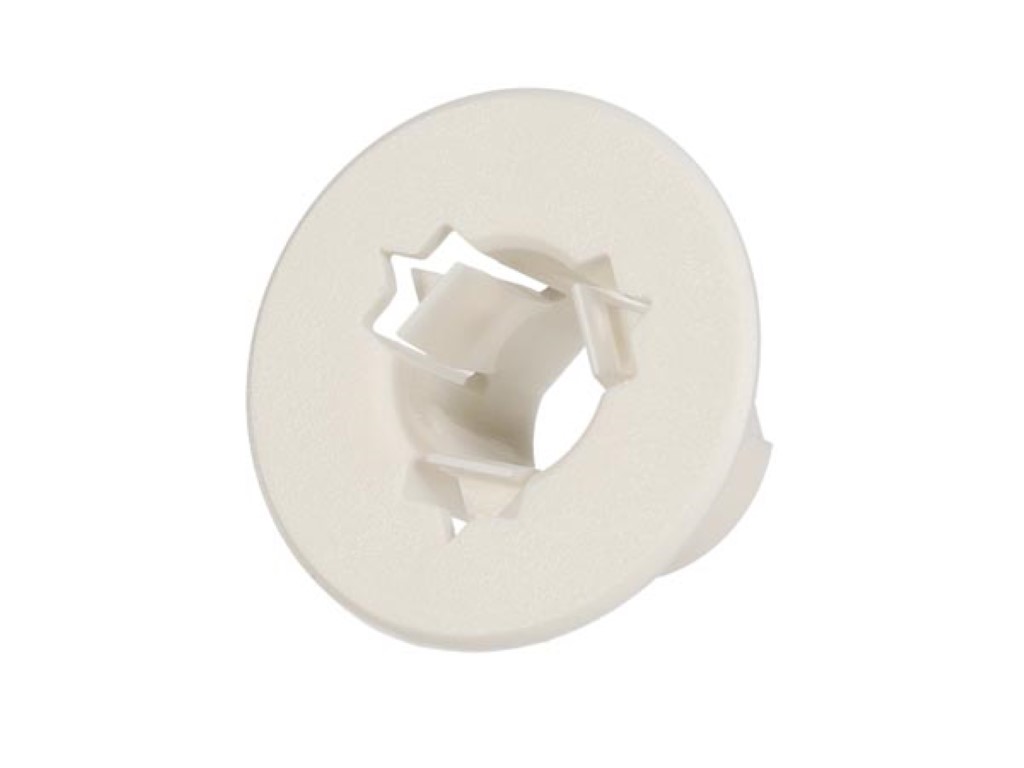

    • mounting hole: without mounting accessory Ø 18mm; with mounting accessory Ø 20-22mm
  • protocol manuals for developers: available for download at https://github.com/velbus
