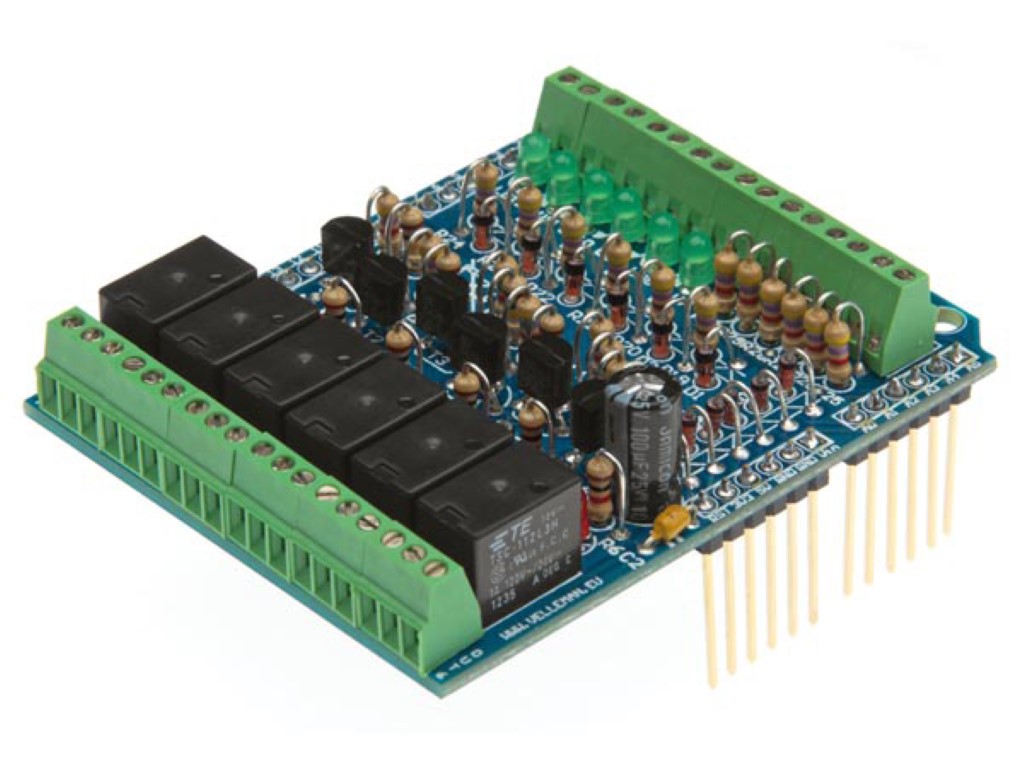

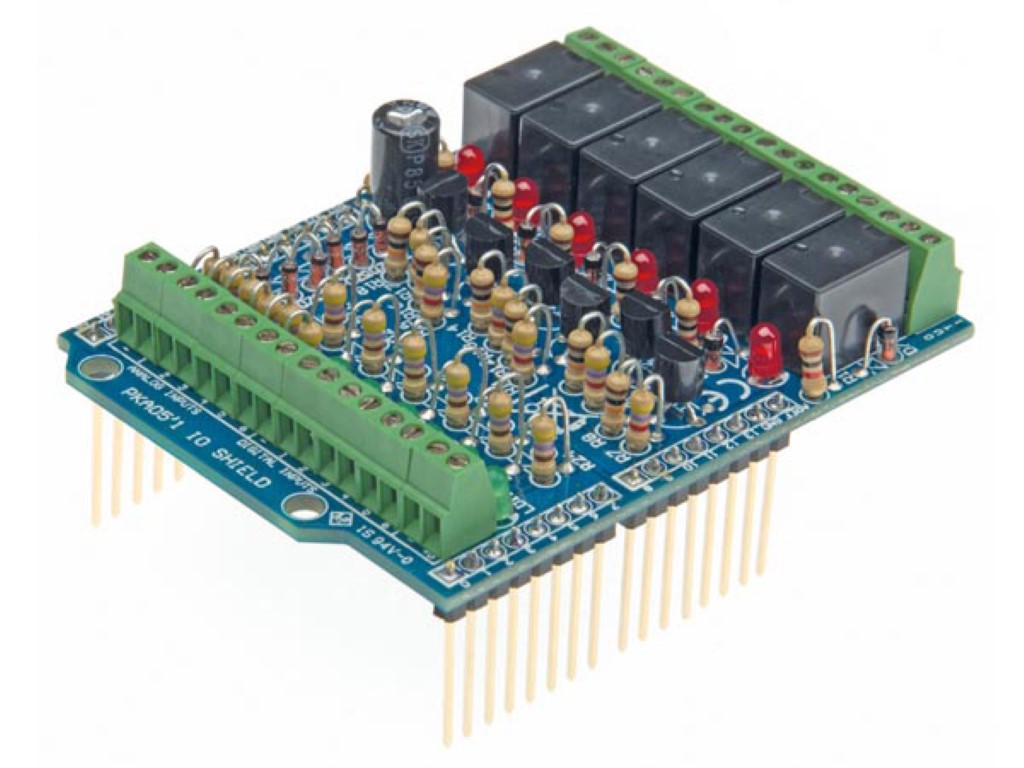

I/O SHIELD FOR ARDUINO®


General purpose INPUT - OUTPUT shield for Arduino®

Also available as completely mounted module VMA05: I/O SHIELD FOR ARDUINO® .

Features

  • 6 relay outputs: 0.5A max 30V (*)
  • 6 analog inputs
  • 6 digital inputs
  • downloadable sample sketch

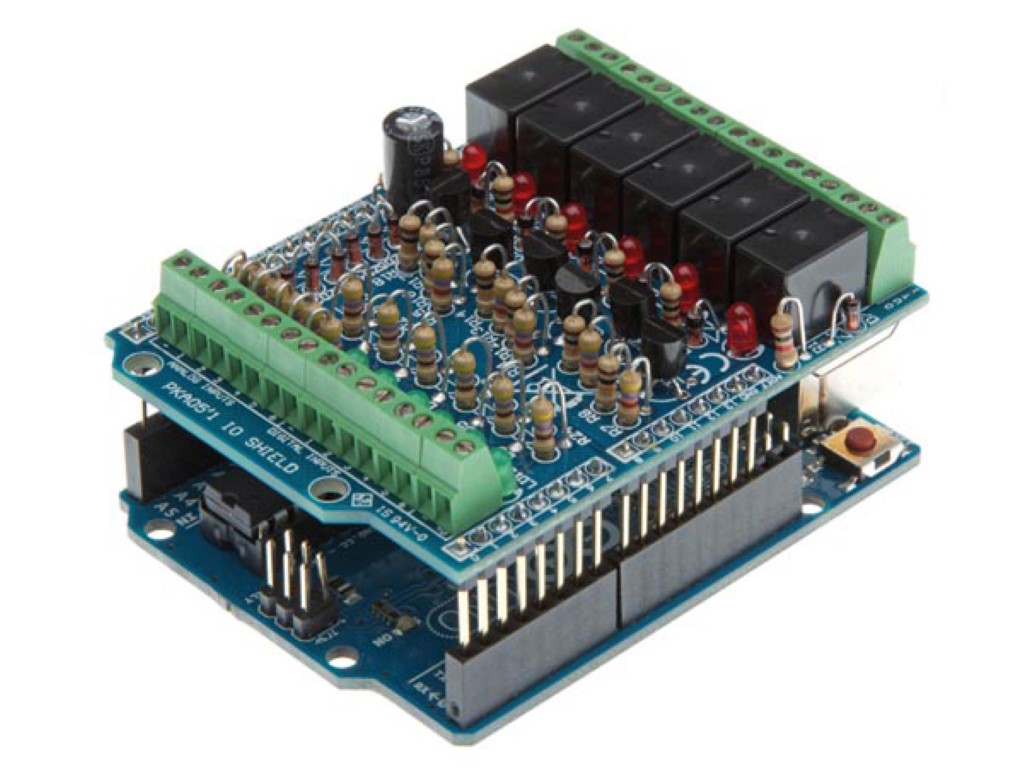

  • stackable design: the shield can be stacked with other shields
  • large user community
  • requires 1 Arduino UNO™ (not included)

Specifications

  • 1 A (max.) load per output
  • 30 V max. per output
  • uses pin 8 to 13 as outputs, pin A0 to A5 as analog inputs, and pin 2 to 7 as digital inputs
  • dimensions: 68 x 53mm / 2.67 x 2.08"

Extras

  • (*) It is required to power the Arduino UNO (not supplied) with a 12V DC 500mA power supply (not supplied)

  • This shield will not work with the Arduino Yún. Use the KA08 or VMA08 with the Arduino Yún.
