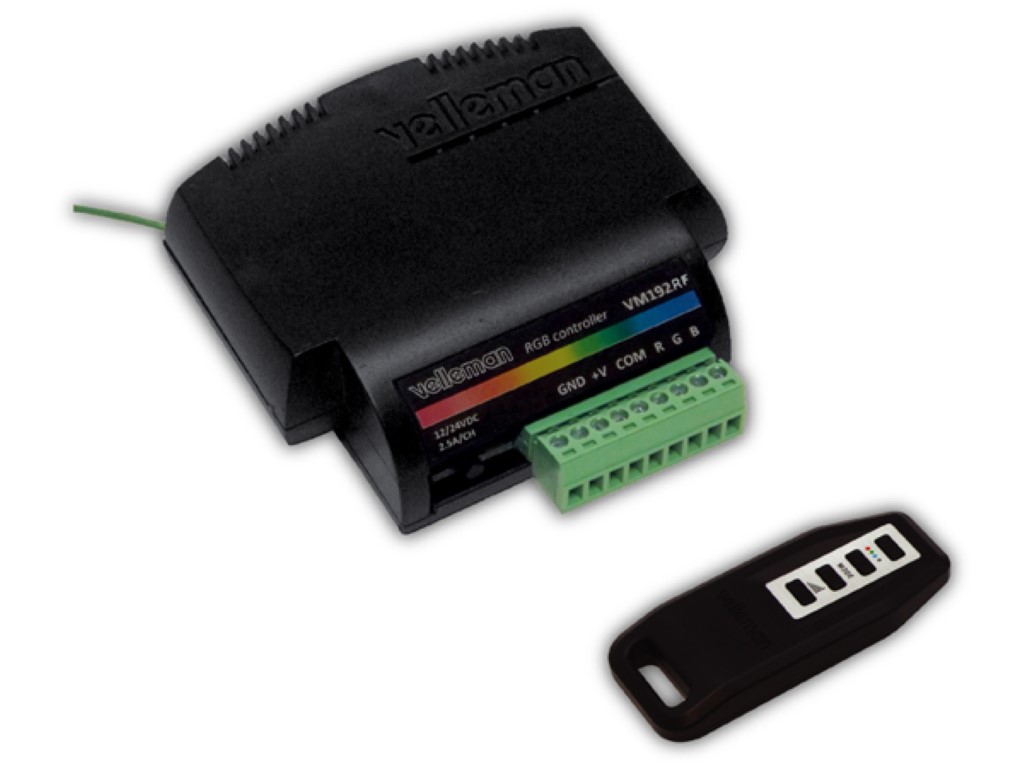

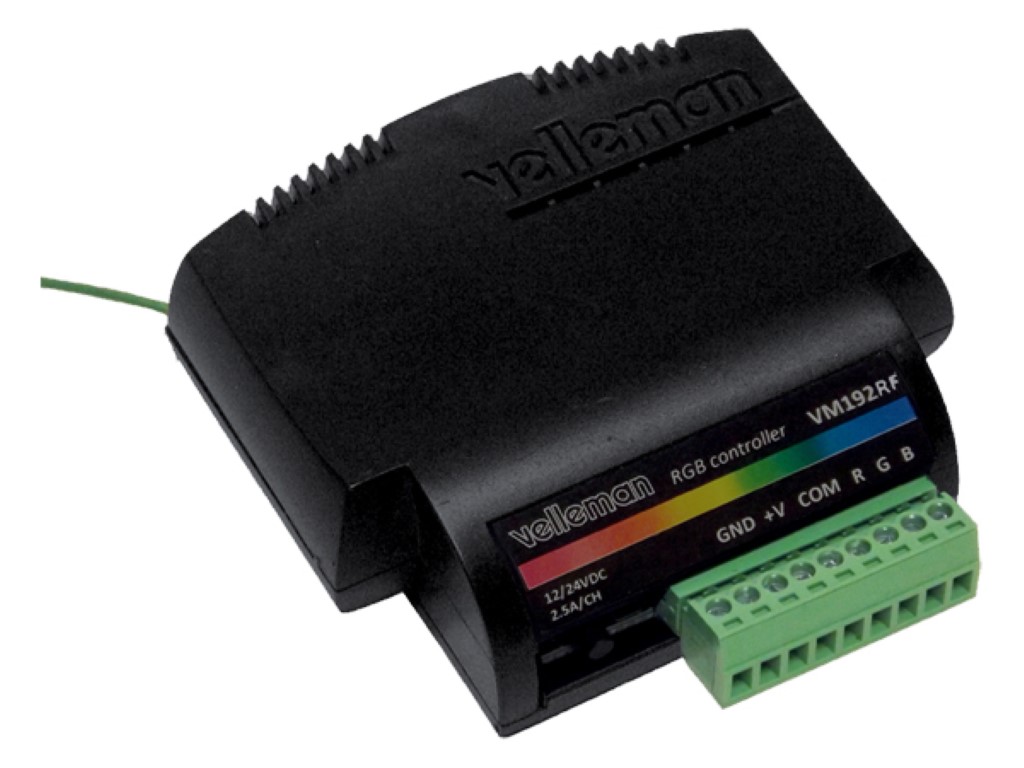

RGB LED CONTROLLER - RF VERSION
VM192RF is a radio remote controlled RGB driver for 12 or 24VDC led strips. It allows you to set a colour manually or loop through all colours automatically, with 4 selectable fading speeds. A built-in dimmer allows the user to adjust the intensity,
regardless of the chosen colour or mode.

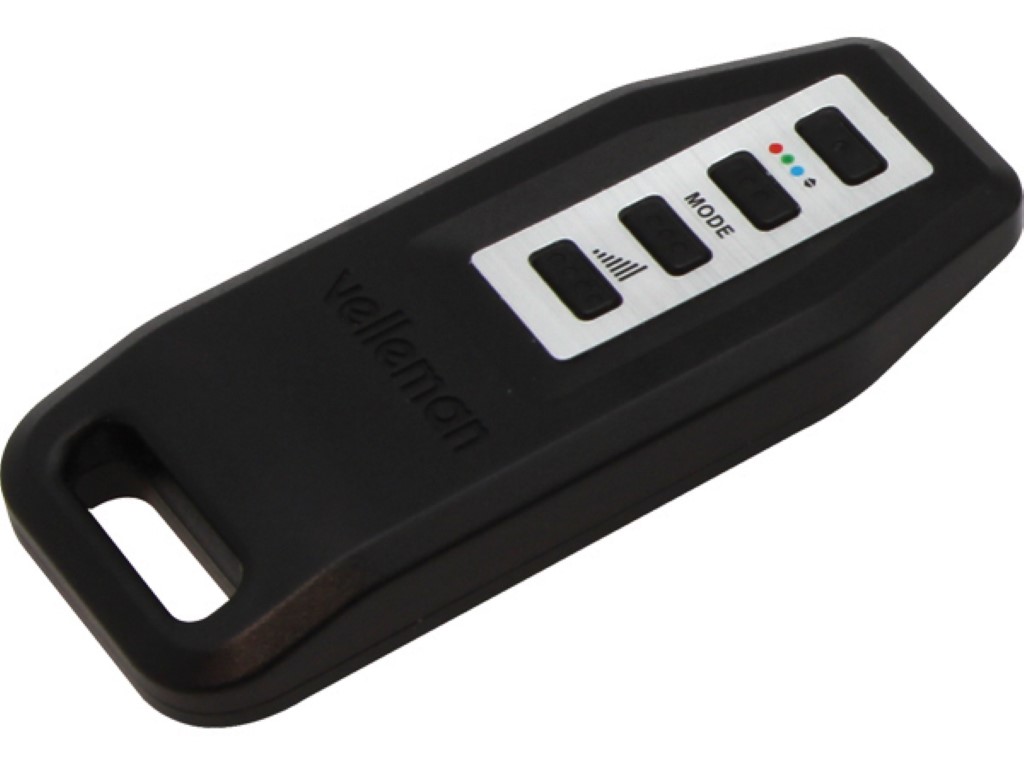

- includes one 4 channel RF remote
- up to 5 remotes can be linked
- multiple controllers in a single room is possible
- colour, intensity and mode are retained and will be restored after a power
- speed determined by jumper setting

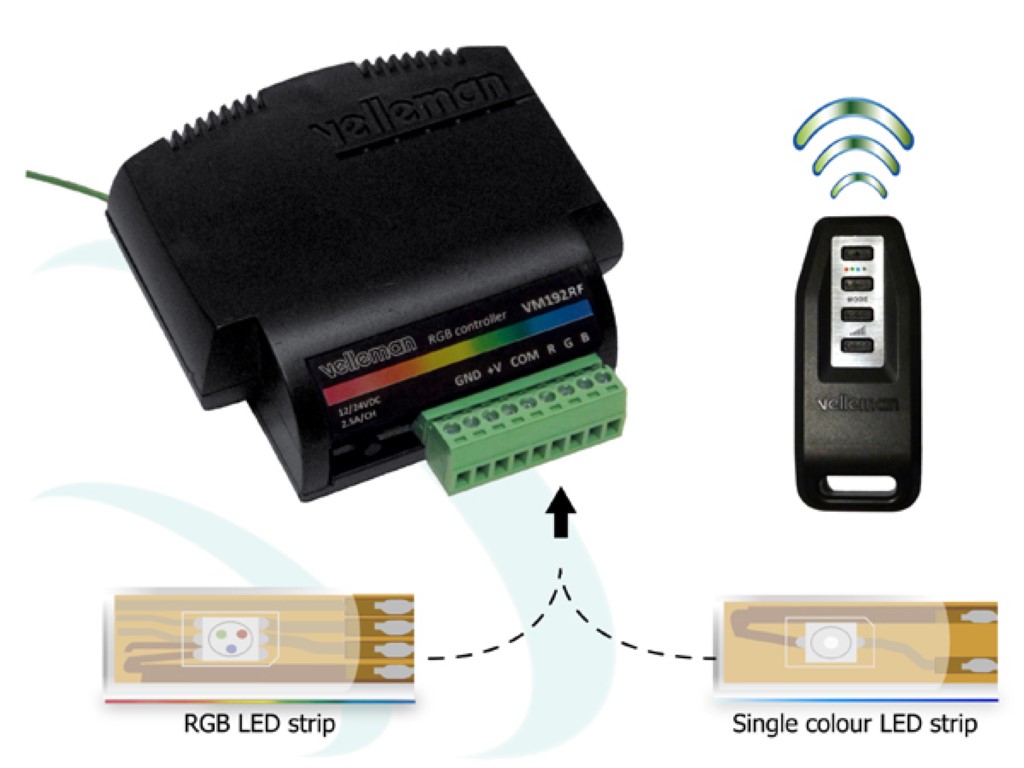

- can also be used as a single channel led dimmer
- smooth manual scrolling through red-orange-yellow-green-blue-indigo-violet
with up/down buttons
- fix a manually selected colour
- power supply: 12..24VDC
- current: 2.5A/channel max. (30W/12V, 60W/24V max.)
- PWM frequency: 245Hz, 10-bit
- intensity levels: 32
- colour loop time (R->G->B->R): 50s, 1m40s, 2m30s or 3m20s
- max. ambient temp: 30°C / 86°F
- RF frequency: 433.92MHz
- remote power supply: or ALKALINE MN21 V23A 12V-38mAh 4223.101.401 (1pc/bl) 12V battery (included) ALKALINE V23A / EL12 12 V (5pcs/bl)
- controller: 80x70x23mm / 3.15 x 2.75 x 0.9"
- remote: 88x37x13mm / 3.46x1.45x0.5"
