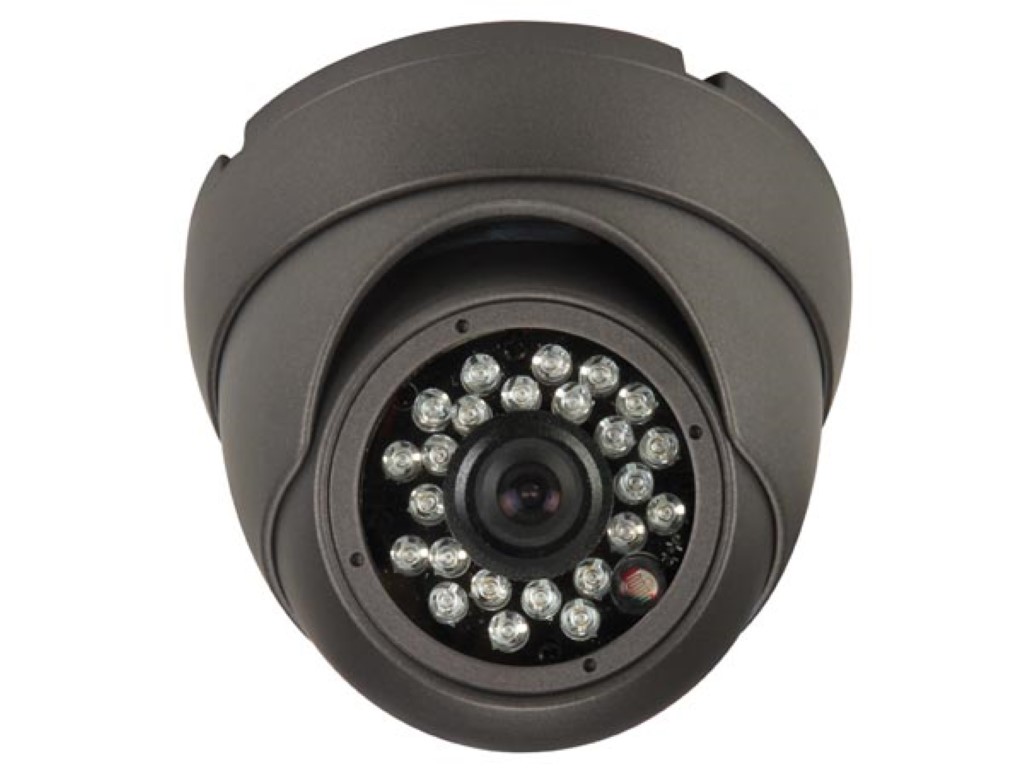

ANALOG CAMERA - OUTDOOR - DOME - IR - 700 TV LINES - SONY EFFIO DSP

CAMCOLD23
Removed from our assortment
Support
User manual
Warranty
Support
Colour 1/3 700 TV lines Wired camera Vandal-proof housing IP range 65 - dust tight, protection against water jets Power supply: 12v, not included IR distance 15m
Compare

This camera is equipped with a Sony 960H CCD image sensor and a Sony Effio DSP. "Effio" stands for "Enhanced Features and Fine Image Processor"; it is a Sony signal processor which realizes high resolution, high S/N ratio and high colour reproduction for security cameras. The combination of this CCD and DSP gives a video signal of 700 TV lines.

Features

  • weatherproof
  • with B/W night vision (IR LEDs)
  • super high resolution
  • vandal-proof housing
  • special functions via On screen display (OSD) set-up menu:
    • shutter/AGC
    • white balance

Specifications

  • IP rating: IP65
  • pick-up element: 1/3" Sony 960H colour CCD image sensor
  • number of pixels: 976 (H) x 582 (V) - PAL
  • resolution: 700 TV lines
  • DSP: Sony Effio
  • min. illumination: 0.001 lux / F2.0
  • IR LEDs: 24
  • max. IR projection distance: 15 m
  • S/N ratio: > 52 dB (AGC off)
  • electronic shutter: 1/50 to 1/100 000 s
  • lens: f3.6mm / F2.0
  • lens angle: 79°
  • Colour Rolling Suppress: yes
  • AGC: yes
  • white balance: automatic
  • video output: 1.0 Vpp composite, 75 ohm
  • audio: no
  • power supply: 12 Vdc
  • current consumption: 80 mA (IR off), 150 mA (IR on)
  • operating temperature: -10 °C to 55 °C
  • dimensions: Ø 92 x 75 mm
  • weight: 300 g
This item cannot be sold in: Canada

All registered trademarks and trade names are properties of their respective owners and are used only for the clarification of the compatibility of our products with the products of the different manufacturers.
Due to constant product improvements the actual product appearance might differ from the shown images. Product images are for illustrative purposes only.
