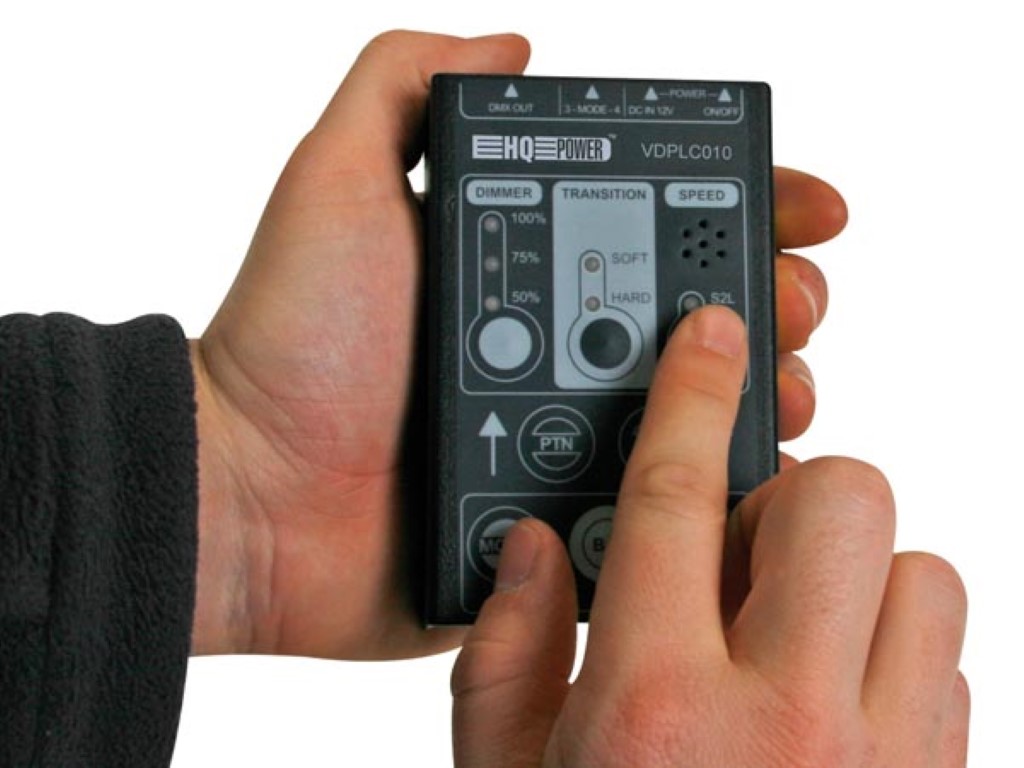

- 5-channel RGB DMX controller
- chase light feature : distribute the effect over (a multiple of) 3 or 4 RGB target devices
- four operation modes: blackout (all off), scene (static on with selectable colour), pattern (chase), strobe (white 18Hz strobe)
- 9 chase patterns, combinable with 7 colour schemes
- pattern speed setting: manual or sound-controlled
- master output dimming level: 50 - 75 - 100%
- hard (switching) / soft (fading) transition in pattern mode
- handheld-sized road-proof metal case
- mains power adaptor included
- for: VDPLP64B2, VDPLP64B3, VDPLP64C2, VDPLP64C3
Specifications- control protocol: DMX512 (1990)
- output channels: 12/16 (selectable)
- output: 3-pin XLR (F)
- Sound-to-Light: AGC circuit
- power supply: 12VDC/100mA
- mains adaptor: 85-240VAC/50-60Hz, 100mA
- consumption: max. 100mW
- operating conditions: temperature <40°C, RH < 80%
- dimensions (WxDxH): 70 × 110 x 33mm
- weight: 310g (net)
|
- 5-channel RGB DMX controller
- chase light feature : distribute the effect over (a multiple of) 3 or 4 RGB target devices
- four operation modes: blackout (all off), scene (static on with selectable colour), pattern (chase), strobe (white 18Hz strobe)
- 9 chase patterns, combinable with 7 colour schemes
- pattern speed setting: manual or sound-controlled
- master output dimming level: 50 - 75 - 100%
- hard (switching) / soft (fading) transition in pattern mode
- handheld-sized road-proof metal case
- mains power adaptor included
- for: VDPLP64B2, VDPLP64B3, VDPLP64C2, VDPLP64C3
| |
Specifications- control protocol: DMX512 (1990)
- output channels: 12/16 (selectable)
- output: 3-pin XLR (F)
- Sound-to-Light: AGC circuit
- power supply: 12VDC/100mA
- mains adaptor: 85-240VAC/50-60Hz, 100mA
- consumption: max. 100mW
- operating conditions: temperature <40°C, RH < 80%
- dimensions (WxDxH): 70 × 110 x 33mm
- weight: 310g (net)
| |
|
