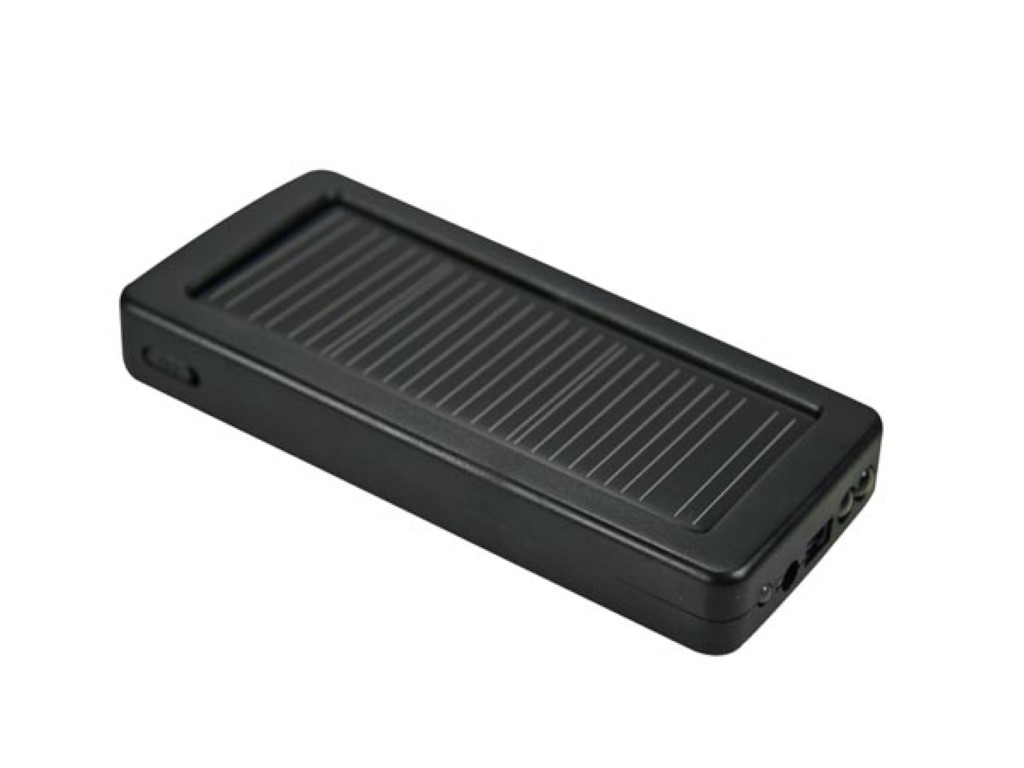

portable and highly efficient solar panel charger for use in situations without fixed mains supply
suitable for charging any USB device such as your MP3/MP4 player, PSP, NDS, iPod, mobile phone or PDA
keeps the energy in a built-in rechargeable Li-ion battery pack
slim design, lightweight
safety features:
input: charging by external 5VDC (mini USB or jack plug) or solar panels with overcharge, over-current and overheating protection
output: overvoltage and current limit protection
LED flashlight: 2 built-in white LEDs can be used as emergency lighting
Specifications
solar panel: monocrystalline silicon, 5V/800mA, ± 15% efficiency
Li-ion battery pack: 3.7V/1400mAh
output voltage: 5V
max. output current: 800mA
reverse charging time (mobile phone): ± 60 min
battery pack charging time (full charge):
solar energy: 10-14h
5VDC input: 3h
mini USB: 4h
emergency LED light operation time: ± 70h (continuous operation)

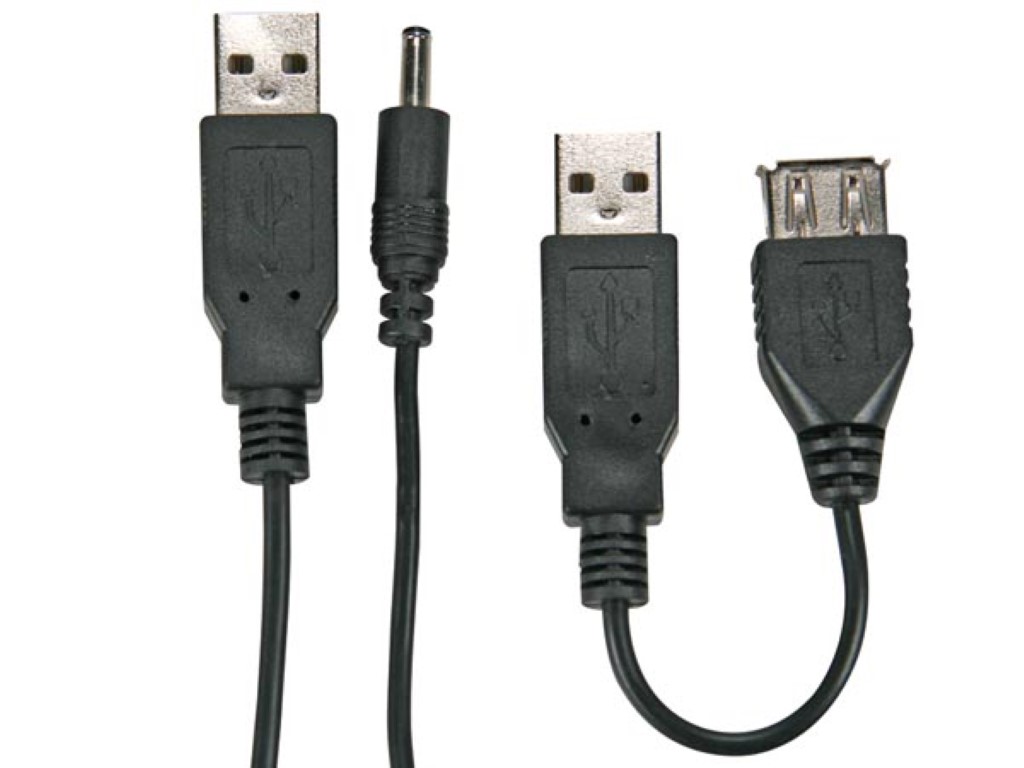

charging inputs: DC socket (Ø1.1x3.5mm) and mini USB interface
output: standard USB interface
dimensions: 103 x 43 x 15mm
weight: 75g
portable and highly efficient solar panel charger for use in situations without fixed mains supply
suitable for charging any USB device such as your MP3/MP4 player, PSP, NDS, iPod, mobile phone or PDA
keeps the energy in a built-in rechargeable Li-ion battery pack
slim design, lightweight
safety features:
input: charging by external 5VDC (mini USB or jack plug) or solar panels with overcharge, over-current and overheating protection
output: overvoltage and current limit protection
LED flashlight: 2 built-in white LEDs can be used as emergency lighting
Specifications
solar panel: monocrystalline silicon, 5V/800mA, ± 15% efficiency
Li-ion battery pack: 3.7V/1400mAh
output voltage: 5V
max. output current: 800mA
reverse charging time (mobile phone): ± 60 min
battery pack charging time (full charge):
solar energy: 10-14h
5VDC input: 3h
mini USB: 4h
emergency LED light operation time: ± 70h (continuous operation)
charging inputs: DC socket (Ø1.1x3.5mm) and mini USB interface
output: standard USB interface
dimensions: 103 x 43 x 15mm
weight: 75g
Bar code
Bar code (EAN-13):5410329396565
