DIGITAL AUTORANGE MULTIMETER + NO CONTACT AC VOLTAGE DETECTOR

DVM1500
Popular item
Support
Downloads (3)
FAQ (1)
Warranty
Support
3 AA Batteries (included)
Compare

Features

  • 4000 counts LCD with automatic polarity indication and settings information
  • no-contact AC voltage detector (sensitivity > 50 Vac, 50 Hz; distance < 15 cm)
  • alarm function for improper connection of test leads
  • white backlight
  • relative measurement mode for all ranges except frequency, EF and diode test
  • auto range or manual range
  • data-hold function
  • auto power-off (except for EF range)
  • diode and continuity test
  • voltage measurements: 750 Vac and 1000 Vdc max.
  • Adc and Aac current measurements: max. 10 A
  • resistance measurements: max. 40 Mohm
  • temperature measurements: -55 °C to +1000 °C
  • capacitance measurement: up to 200 µF
  • frequency measurement: 10 Hz to 200 kHz
  • fuse protection: 500 mA 250 V
  • K-type thermocouple measuring range: -20 °C to 1000 °C
  • in accordance with IEC1010 CAT II 1000 V, CAT III 600 V
  • fireproof ABS case
  • remark: it takes a few seconds before the meter shows the result. This is normal. Depending on the value of the capacitor, the result will be displayed after 5 to 30 seconds.
  • Important safety information

Specifications

  • DC voltage: 400 mV / 4 V / 40 V / 400 V / 1000 V
    • basic accuracy: ± 0.8 % of rdg + 3 digits (± 1.0 % of rdg + 3 digits for 1000 V range)
    • input impedance: 10 Mohm
    • maximum input: 1000 Vdc / 750 Vac rms
  • AC voltage: 4 V / 40 V / 400 V / 750 V
    • basic accuracy: ± 1 % of rdg + 3 digits (± 1.2 % of rdg + 3 digits for 750 V range)
    • input impedance: 10 Mohm < 100 pF
    • frequency range: 40-400 Hz
    • maximum input: 750 Vac / 1000 Vdc
  • DC current: 40 mA / 400 mA / 10 A
    • basic accuracy: ± (1.2 % of rdg + 5 digits) for 4 mA and 400 mA, ± (2 % + 8 digits) for 10 A range
    • overload protection: 0.5 A 250 V fuse (10 A range not fused)
  • AC current: 4 mA / 400 mA / 10 A
    • basic accuracy: ± (1.5 % of rdg + 5 digits) for 4 mA and 400 mA range, ± (3 % + 8 digits) for 10 A range
    • overload protection: 500 mA 250 V fuse for mA ranges, 10 A range unfused
  • resistance: 400 / 4 k / 40 k / 400 k / 4 M / 40 Mohm
    • basic accuracy: ± (1.2 % of rdg + 3 digits) for 400 kohm and 4 Mohm range, ± (2.0 % + 5 digits) for other ranges
    • overload protection: 250 Vdc or 250 Vac rms
  • capacitance: 4 nF / 40 nF / 400 nF / 4 µF / 40 µF / 200 µF
    • accuracy: ± (5 % of rdg + 5 digits) for 4 nF range, ± (3 % + 5 digits) for all other ranges
  • inductance: -
    • -
  • frequency: 9.999 Hz / 99.99 Hz / 999.9 Hz / 9.999 kHz / 99.99 kHz / 199.9 kHz
    • basis accuracy: ± (0.1 % of rdg + 1 digit)
    • overload protection: 250 Vdc or 250 Vac rms
  • temperature: -20 °C to 1000 °C
    • basic accuracy: -20 °C to 0 °C: ± (5 % of rdg + 4 digits); 0 to 400 °C: ± (1 % + 3 digits); 400 to 1000 °C: ± (2 % + 3 digits)
  • overrange: yes "OL"
  • continuity buzzer: yes
  • transistor test: no
  • diode test: yes 1.0 mA (open circuit voltage = 1.5 Vdc)
  • low-battery indication: yes
  • maximum display: 3999
  • LCD display size: -
  • ranging mode: manual or automatic
  • data hold: yes
  • backlight: yes
  • dimensions: 85 x 180 x 45 mm
  • weight (with battery): ± 280 g
  • power supply: 3 x 1.5 V AA batteries LR6C: ALKALINE AA / LR6 1.5 V-2800 mAh (4 pcs/bl) (incl.)
  • packing: box

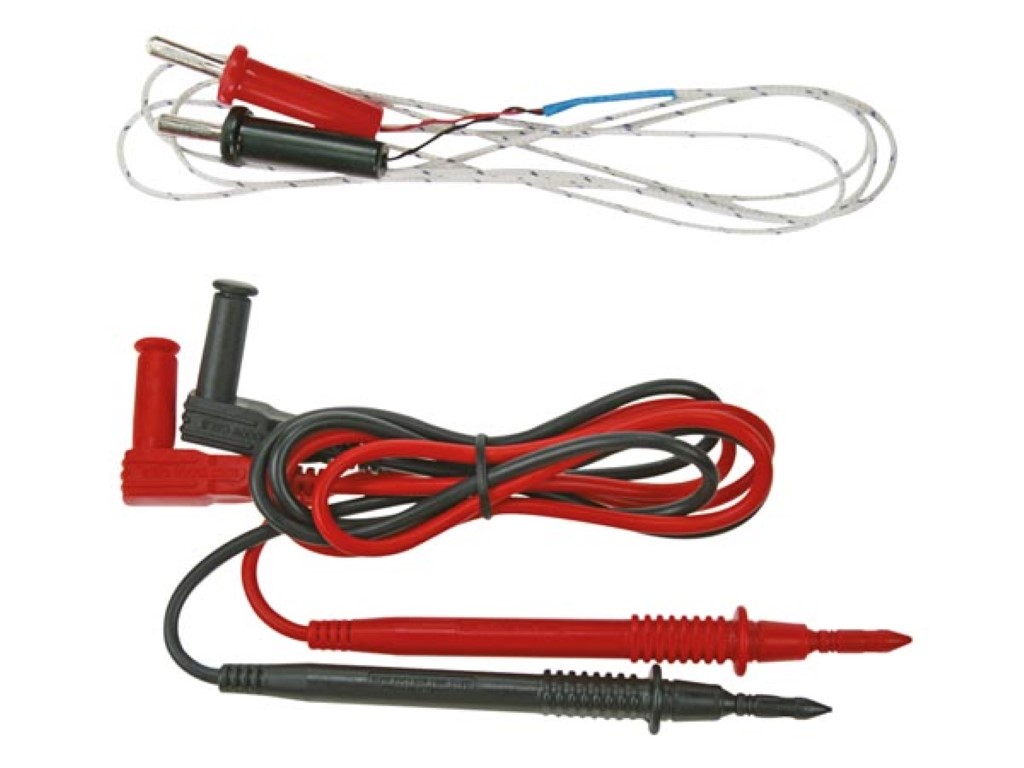

  • accessories: manual / test leads / battery
  • auto power-off: yes
