PRODUCT OVERVIEW

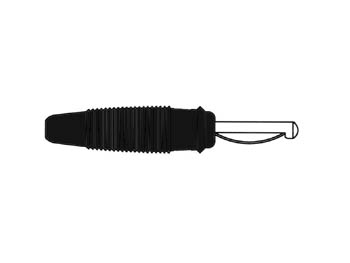

MATING CONNECTOR 4mm WITH TRANSVERSE HOLE AND SOLDERING END / BLACK (VQ 30)

HM1400D

Discontinued

Order

No stock

Support

Downloads (1)

Finish: Nickel-plated | Plug size: 4 mm | Plug type: Banana

All product specifications

Product description

Fully mating shatterproof connector. The flexible insulating sleeve has a transverse hole. The tapering sleeve end also serves as kink protection for the lead. Solder connection for cables with a cross section of max. 2.5mm². Nickel-plated brass contact material.

Specifications

Product basic info
Primary colours	Black

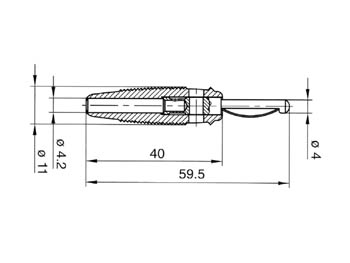

Diameter unit	11 mm
Width unit	59.5 mm
Weight unit	6 g

Physical properties
Finish	Nickel-plated
Dual connection
Dual plug
Insulated tip
Plug size	4 mm

Electrical data
Current rating	30 A
Resistance	3 milliohm

Environmental data
Operating temperature range	-25-70 °C

Operational properties
Stackable

Connections
Maximum wire size mm²	2.5 mm²

Electrical connections
Connection 1 gender	Male
Connection 2 gender	Female
Plug type	Banana

IT connections
Connection type	Soldered

Power supply
Voltage rating	60 V

Bar code

Bar code (EAN-13):5410329315238
