PRODUCT OVERVIEW

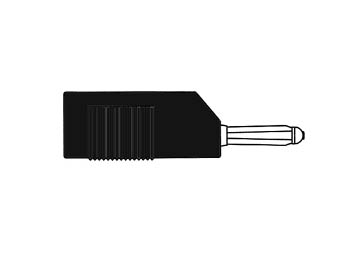

MATING CONNECTOR 4mm WITH LONGITUDINAL OR TRANSVERSE CABLE MOUNTING, WITH SCREW / BLACK (BSB 20K)

HM1400

LBL_NONE_TAG

Order

This product cannot be purchased as a private individual.

Support

Downloads (1)

Plug size: 4 mm | Plug type: Banana

All product specifications

Product description

Multiple-spring wire plug with longitudinal or transverse cable entry in tower constructions. Screw connection for cables with a cross section of max. 2.5mm² and an external Ø of 4mm. Nickel-plated brass contact material.

Specifications

Product basic info
Primary colours	Black

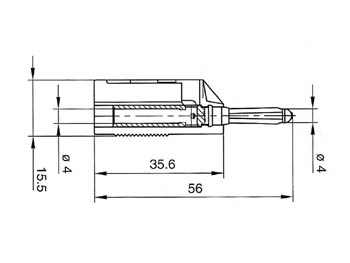

Width unit	56 mm
Weight unit	9 g

Physical properties
Dual connection
Dual plug
Insulated tip
Plug size	4 mm

Electrical data
Current rating	30 A
Resistance	3 milliohm

Environmental data
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C

Operational properties
Stackable

Connections
Maximum wire size mm²	2.5 mm²

Electrical connections
Connection 2 gender	Female
Connection 1 gender	Male
Plug type	Banana

IT connections
Connection type	Screwed

Power supply
Voltage rating	60 V

Bar code

Bar code (EAN-13):5410329319632
