7" TFT-LCD car monitor, easy to operate, with reversing camera support and IR headphone connection, includes remote control, cable, stand, and built-in frame for headrest mounting"

Name: 7" TFT-LCD car monitor, easy to operate, with reversing camera support and IR headphone connection, includes remote control, cable, stand, and built-in frame for headrest mounting"
Brand: Velleman
SKU: MON7T1
Availability: OutOfStock

MON7T1

BESTSELLER

View on velleman.eu.

Order

This product cannot be purchased as a private individual.

Support

User manual

Downloads (2)

Product description

Enjoy superior image quality with this 7" TFT-LCD monitor, ideal for switching between navigation and security feeds in your car thanks to two video inputs. Easily adjust the aspect ratio and preferences with the intuitive OSD, while the automatic PAL/NTSC switching ensures compatibility with a variety of devices. Complete with IR reception for wireless headphones, a remote control, and a mounting kit for flexible installation options, this monitor is a comprehensive solution for your multimedia needs.

+ Crystal clear image: Enjoy a sharp and vivid display on a 7" TFT-LCD screen with high resolution of 800x480 pixels, perfect for detailed navigation maps and clear images from your reversing camera.
+ User-friendly: The intuitive On-Screen Display (OSD) allows for easy adjustment of settings and smooth switching between sources, while the IR eye provides a convenient connection for wireless headphones.
+ Automatic detection: Smart automatic switching between PAL and NTSC ensures that your monitor always selects the right video signal, for hassle-free compatibility with all connected devices.
+ Direct safety: Enhance your safety with the automatic activation of the reversing camera function, which immediately turns on the display when you put the car in reverse.

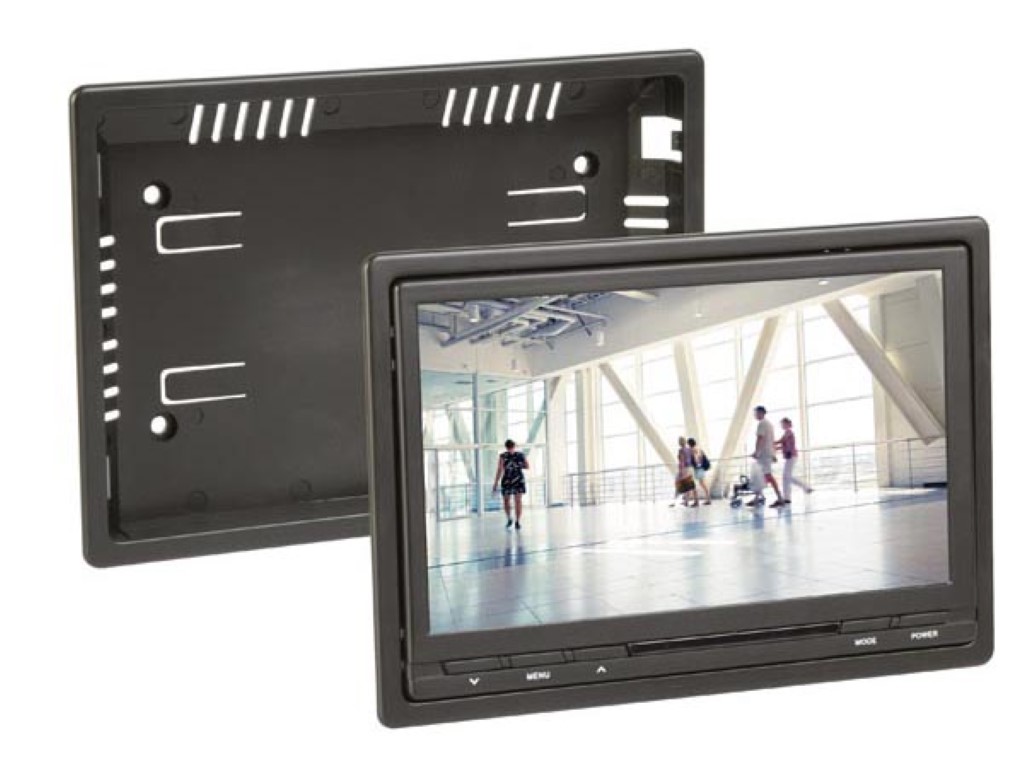

+ Flexible mounting: Whether you opt for a free-standing setup or a built-in installation with the provided built-in frame, this monitor seamlessly fits into your interior or dashboard.

Specifications

Product basic info
Instruction manual languages	Dutch, English, French, German, Italian, Polish, Portuguese, Spanish
Primary colours	Black
Depth unit	20 mm
Height unit	115 mm
Width unit	173 mm
Weight unit	360 g
Material	ABS
Additional material	Metal

Physical properties
Display size	7 in
Colour transmitter	Grey

Electrical data
Input type	2 x video/camera inputs and 1 x stereo audio input

Technical data
Mounting type	Screw mounting, Table stand
Luminance per square meter	250 cd
Number of pixels	384000
Resolution monitor	800 x 480
Audio/video signal	Video Input Signal: 1.0 Vpp / 75 Ohm (composite video signal)

Operational properties
Display mode	TFT Active Matrix 16:9 /4:3
OSD function	Horizontal / Vertical Image Reversing Setting Adjustment Volume

Power supply
Number of batteries	1
Battery voltage rating	3 V
Power consumption	<= 7 W
Input voltage rating VDC range	10.8-13.2 V
Batteries included transmitter
Battery composition	Lithium
Battery IEC size	CR2032 (5004LC)
Battery type transmitter	CR2032 (5004LC)

Included
Set contents	Remote Control Cables Table Stand Headrest Installation Frame
Built-in speaker
Mirror image function

Bar code

Bar code (EAN-13):5410329443887
