COMPONENT TEST OPTION FOR HANDHELD OSCILLOSCOPE - HPS140mk2

HPS141
Coming soon
Support
Downloads (3)
Warranty
Support
Compare

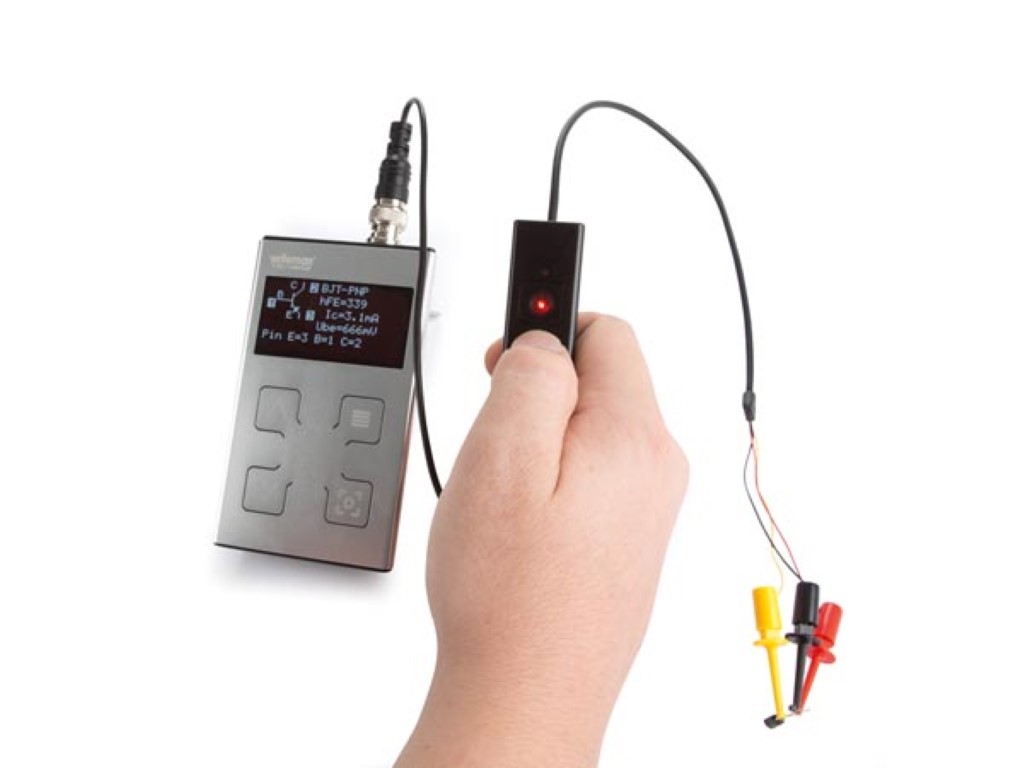

Connect this easy to use component tester to your handheld oscilloscope (HPS140MK2) and receive all useful information about resistors, transistors, diodes and more, including their pin out identification.

Features

  • a single button test
  • a test indicator
  • auto shutdown

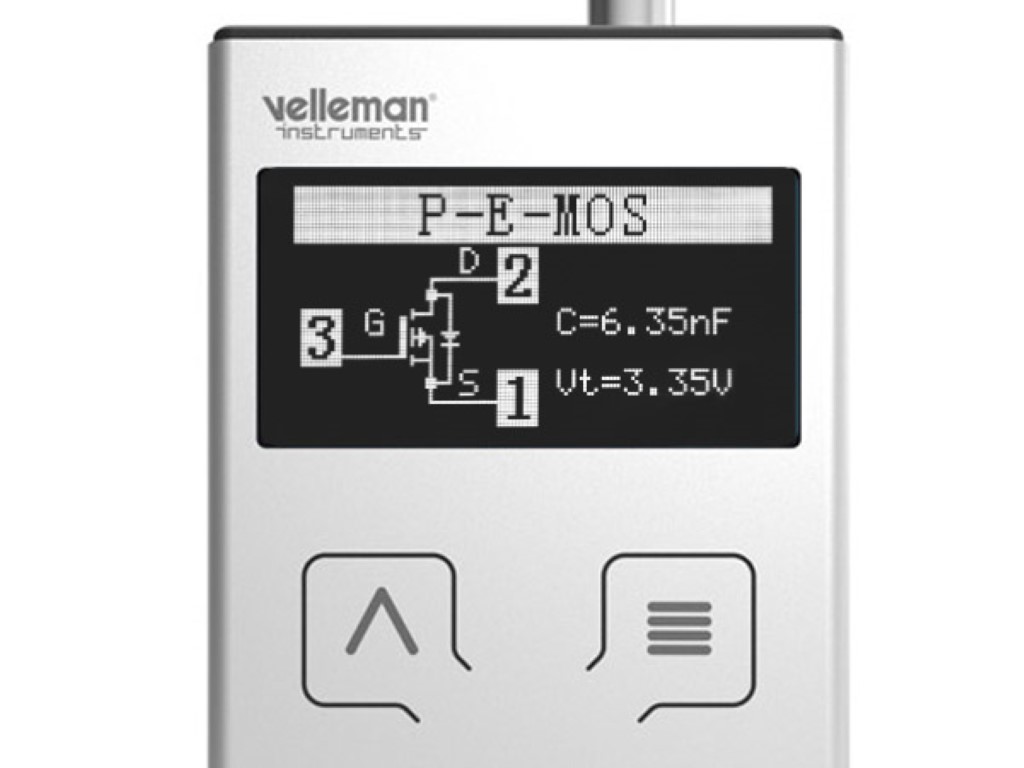

  • shows pin layout
  • handheld oscillopscope (HPS140mk2) needed (not included)
  • only compatible with the HPS140mk2 (not included)
  • battery included
  • component analyzer with automatic pin out identification

Specifications

  • dimensions: 23 x 96 x 15mm (W x L x H) (without cables)
  • supported components: SCR, JFET, E-IGBT, D-IGBT, E-MOS, D-MOS, resistor, coil, capacitor, diode, transistor
  • resistance resolution: 0.1Ohm (max 50 Ohm)
  • capacitance range: 28pF to 100.000µF
  • inductance range: 0.01mH to 20H
  • standby current: 20nA
  • power supply: 12V battery GP23A (included)
  • test current: approx. 20mA
  • test speed: 2 seconds
