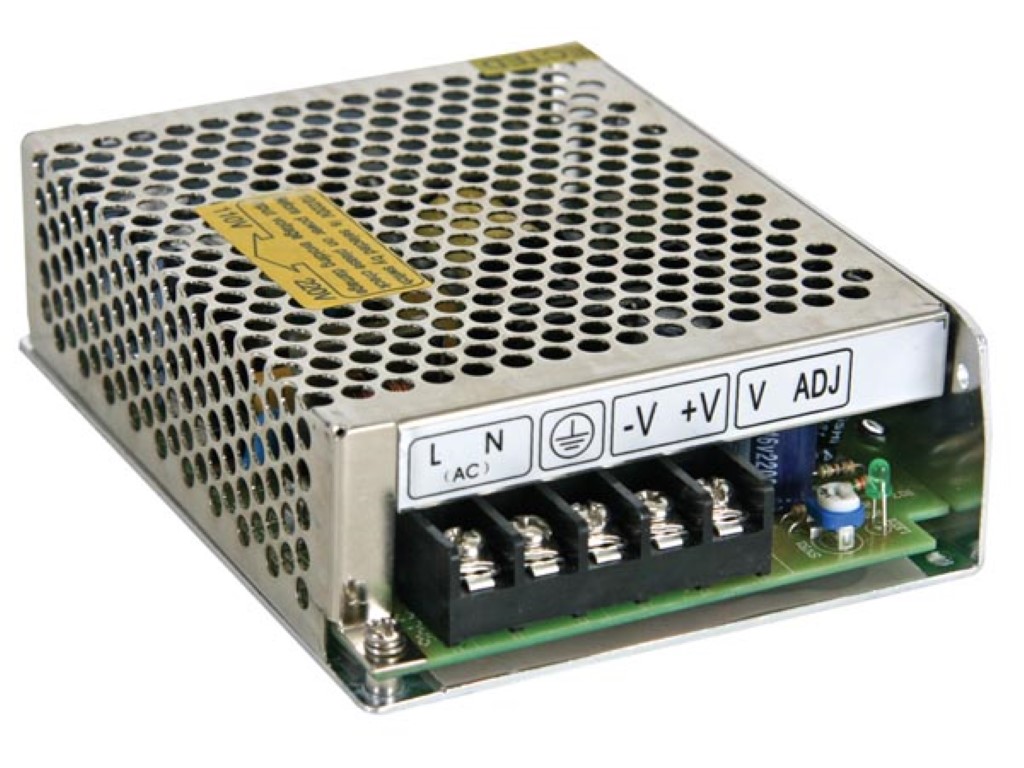

SWITCHING POWER SUPPLY - 40W - 12VDC - CLOSED FRAME

PSIN04012
Removed from our assortment
This item is replaced by: LRS-50-12TE
Support
Infosheet
Warranty
Support
Compare

Features

  • cooling: by free air convection

Specifications

  • output voltage: 12VDC ± 1%
  • output current: 0.0 ~ 3.3A
  • ripple and noise: 100mV
  • power output: 40W
  • dimensions: 130 x 97 x 37mm
  • weight: 400g
  • overload protection: 105% - 150% fold back current limiting with auto-recovery
  • input voltage: 100-120 Vac/200-240 Vac (switch selectable) 50/60 Hz
  • input rush current (230 VAC): 30 A (cold start)
  • setup, rise and hold-up time: 200 ms, 100 ms, 300 ms at full load and 230 VAC
  • working temperature:
    • -10 °C to 0 °C / 14-32 °F: 80 % load
    • 0 °C to 50 °C / 32-122 °F: 100 % load
    • 50 °C to 60 °C / 122-140 °F: 60 % load
  • operating humidity conditions: 20-90 % RH
  • overload protection: 105-150 % fold back current limiting with auto-recovery
  • withstand voltage (max. 1 min):
    • I/P - O/P: 1.5 kVAC
    • I/P - FG: 0.5 kVAC
  • DC adjustment range: ± 10 % rated output voltage (V adj)
  • efficency: 74 %
  • connection: 5, 7, or 9 pole terminal block, pitch 9.5 mm / 0.37"
