2-CHANNEL USB PC OSCILLOSCOPE
The PCSU1000 digital storage oscilloscope uses the power of your PC to visualize electrical signals. Its high sensitive display resolution, down to 0.15mV, combined with a high bandwidth and a sampling frequency of up to 1GHz are giving this unit all the power you need.
The USB connection makes this unit a snap to set-up, no external power required! In the field measurements using a lap-top computer have never been this easy.
This scope comes in a stylish vertical space saving design.
Powerful software will fulfill all your needs, but for those who like a challenge; a DLL is supplied, which allows you to create your own application.
Check out this review of the PC oscilloscope by Nuts & Volts!

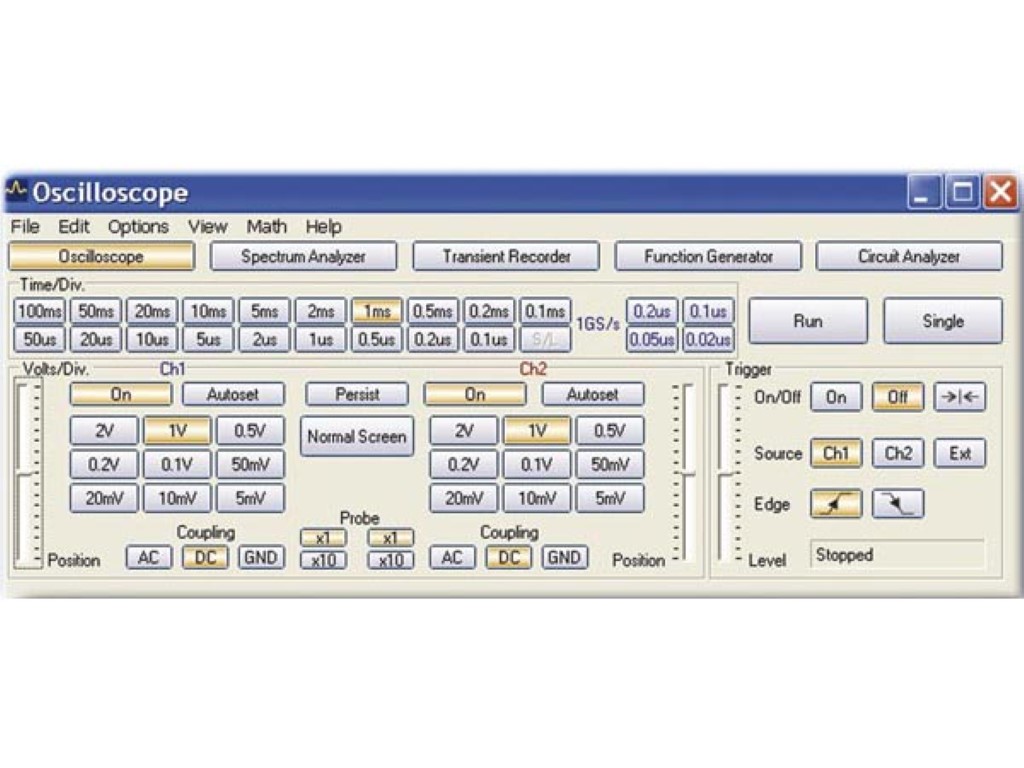

- time base : 20ns to 100ms per division
- trigger source: CH1, CH2, EXT or free run
- trigger edge : rising or falling
- trigger level : full-screen adjustable
- step interpolation : linear or smoothed
- markers for : voltage and time/frequency
- input range : 5mV to 2V/division
- input sensitivity: 0.15mV display resolution
- auto set-up function and X10 option
- pre-trigger function
- readouts: True RMS, dBV, dBm, p to p, Duty cycle, Frequency…
- record length: 4K samples / channel
- real time sampling frequency: 1.25kHz to 50MHz
- sampling frequency for Repetitive signals: 1GHz

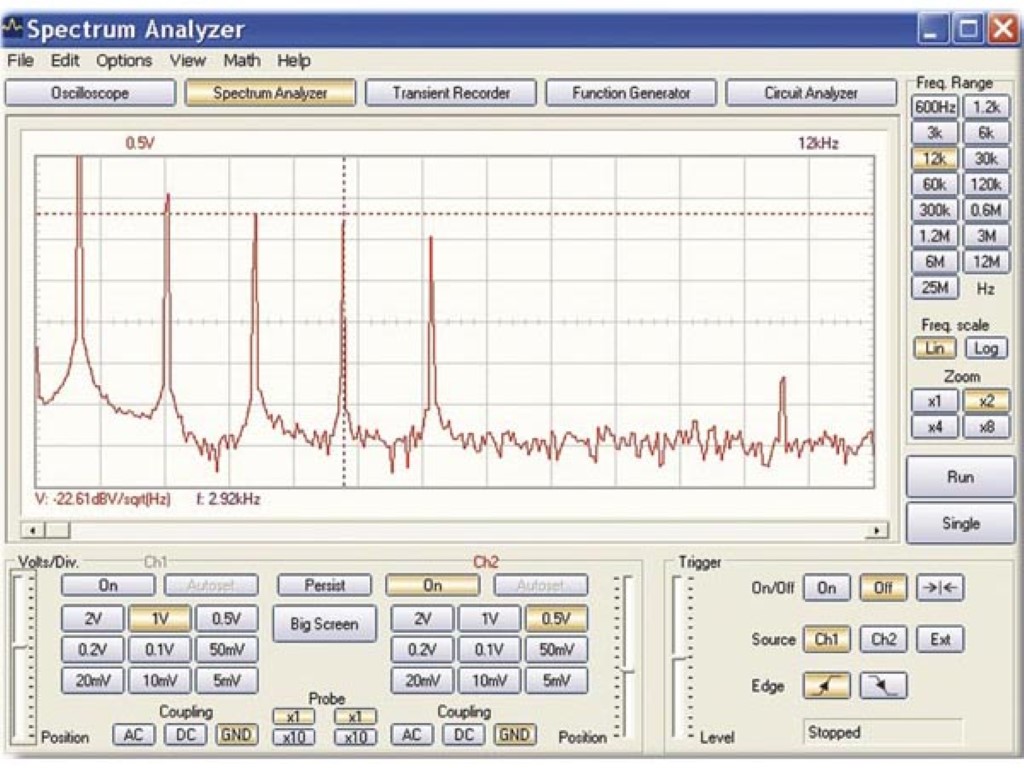

- spectrum analyser:
- frequency range : 0 .. 1.2kHz to 25MHz
- linear or logarithmic timescale
- operating principle : FFT (Fast Fourier Transform)
- FFT resolution : 2048 lines
- FFT input channel : CH1 or CH2
- zoom function
- markers for amplitude and frequency

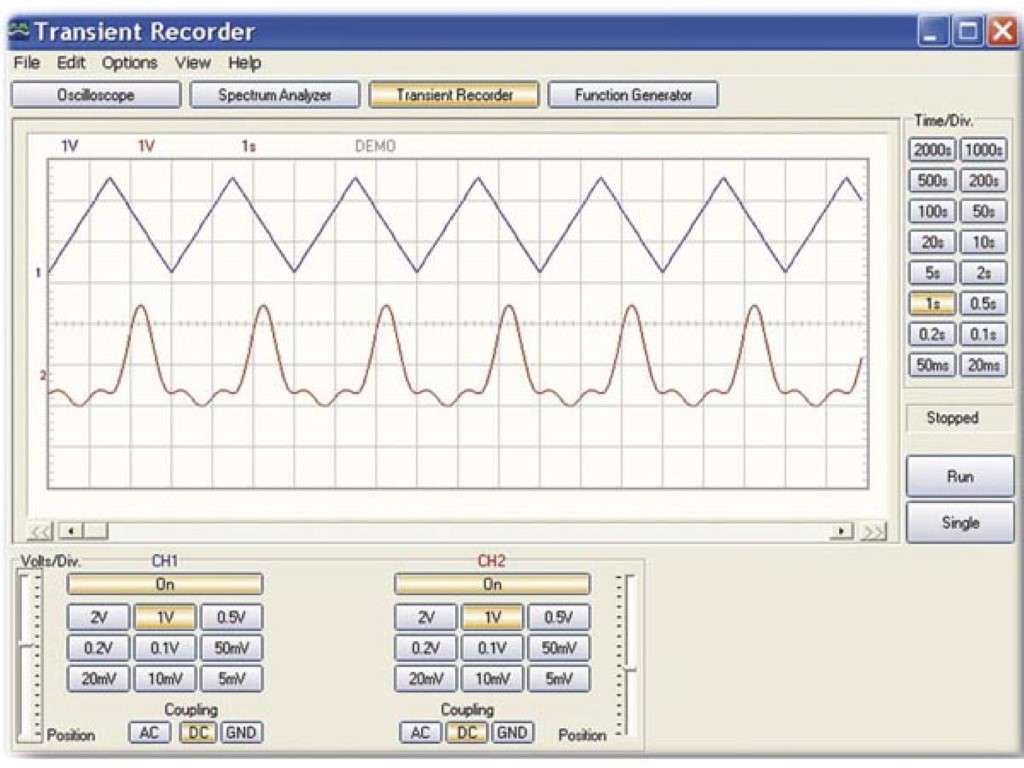

- transient recorder:
- timescale: 20ms/Div to 2000s/Div
- max record time : 9.4hour/screen
- automatic storage of data
- automatic recording for more than 1 year
- max. number of samples : 100/s
- min. number of samples : 1 sample/20s
- markers for time and amplitude
- record and display of screens
- general information:
- inputs: 2 channels, 1 external trigger input
- input impedance : 1 Mohm / 30pF
- bandwidth: DC to 60 MHz ±3dB
- maximum input voltage : 30V (AC + DC)
- input coupling : DC, AC and GND
- Supply from USB port (500mA)
- dimensions: 205 x 55 X 175 / 8.2 x 2.2 x 7"
- minimum system requirements:
- IBM compatible PC
- needs Win98SE or higher*
- SVGA display card (min. 800x600, 1024x768 recommended)
- USB port 1.1 or 2.0 compatible
- CD Rom player

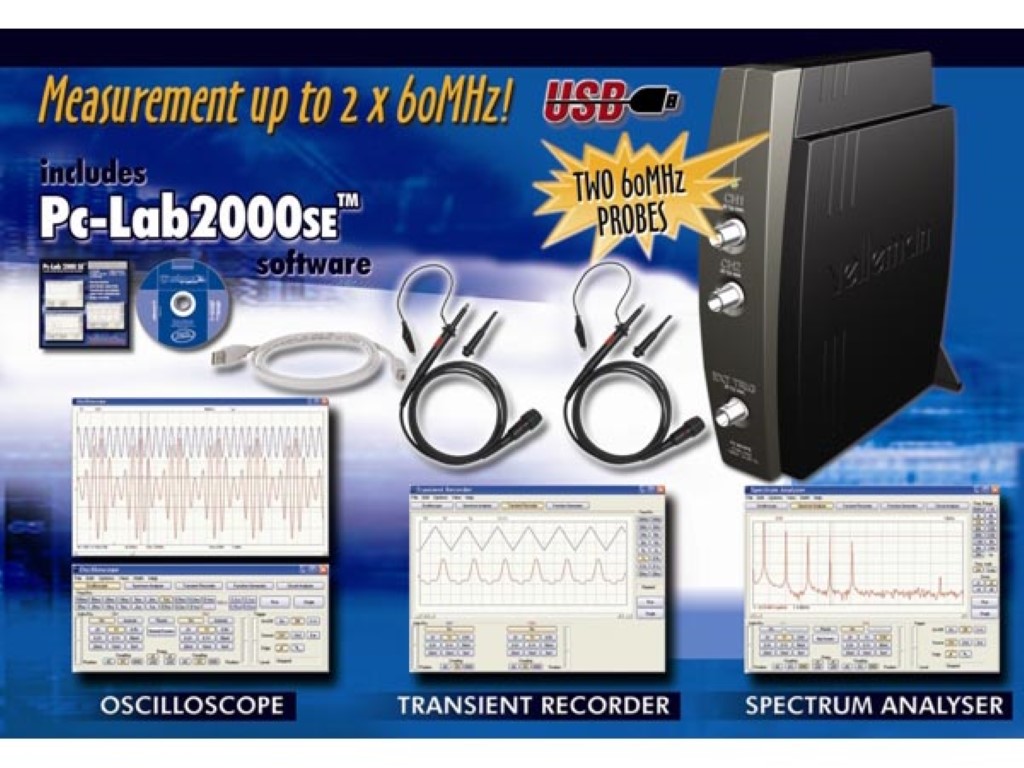

- USB PC oscilloscope
- 2 x 60MHz scope probe (PROBE60S)
- USB cable
- software on CD
- getting started manual
- translations on CD
